Product Instruction

lamp: Original osram 7R ( Color temperature: 8000K)

Channel mode:16 DMX512 Channel  ( most company will say their products is 16CH and 20CH. that is not true, please note)

Pan scan:540 degree (16bit) Electric correction

Tilt scan:270 degree (16bit) Electric correction

Amazing dot matix, four tact switch, 180° turning show

Color wheel: one color wheel, 14 kinds of color chips in one color wheel

Gobo: 17 gobos

Effect Wheel: 16 prism effect lens. frost lens ( if you need. we can make 8 prism effect lens+frost lens. or 8 prism lens+16 prism lens, the price is same)

0-100% mechanical dimming, mechanical dimming and free dimming available.

strobe macro control available.

Cooling fan brand: sunom fan

Lens optical system achanical fouce .beam angle 0-4°

Over heat protection

Power Input: 100-240V,50/60Hz

Power Dissipation:400W

IP level: IP20

magnetic ballast and AC/DC power supply

Product Size:523×337×511mm

Packing Size: 635X440X725

Net weight:19.5Kg



Packing list for each unit:

7R moving head light

Power cable

DMX cable

quick clamp

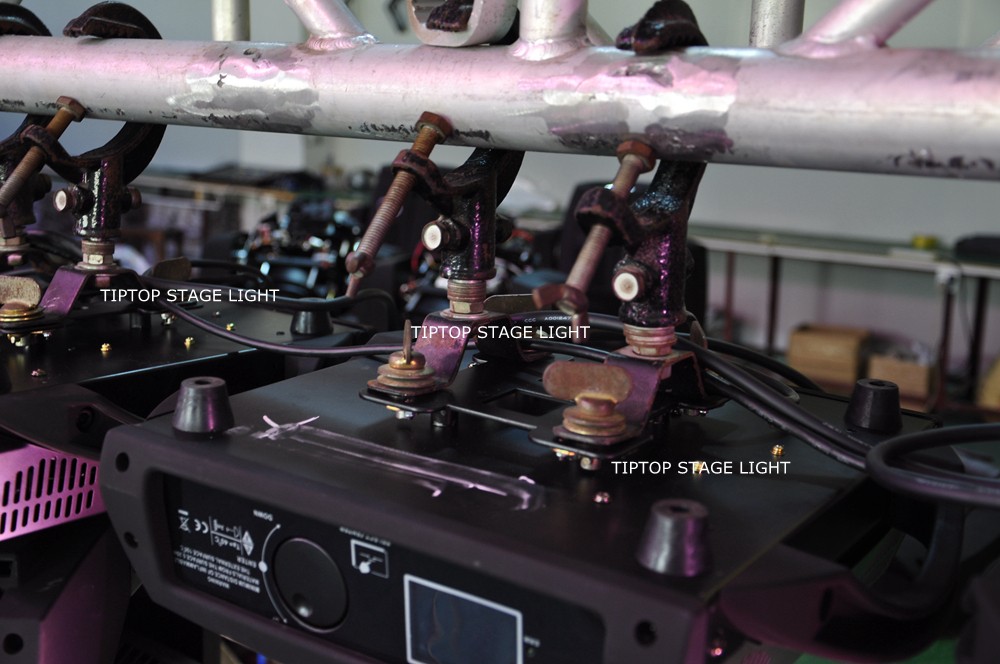

Hanging clamp ( most of company do not equipped with this)

Manual book



FAQ:

There are many company in china produce 230W moving head light. what is your advantage?

A: yes, there are many company produce 230W moving head light, but most of company for reducing the spare parts cost. they will do such ways:

    1): not original 7R osram lamp.  the working life and brightness. smooth level will not be super bad. also working life is short. we are using original Philips lamp. ( please note. it is not Platinum philips)

          there are many chinese company produce lamp and paint philips logo. easy to cheat to customes.

    2): the cooling fan. some cheap fan also can reduce the producing cost a lot. we are using cooling fan brand: NMB.  the cheap cooling fan will cause bad effect to the lamp working. the lamp will dead very soon.

    3):  the bearing is alao a big point. the cheap bearing easy to make noise. or make the x and y axis stop working.

    4): main board.  this is very important point!  some main board is not stable. and DMX channels also strange. not same to clay paky company original model. and also the factory setting is not easy to adjust.

   5): the lens film coating. we purchase the lens coated with 6 level film. most of company will only choose 3 level film lens. that is cheaper a lot.

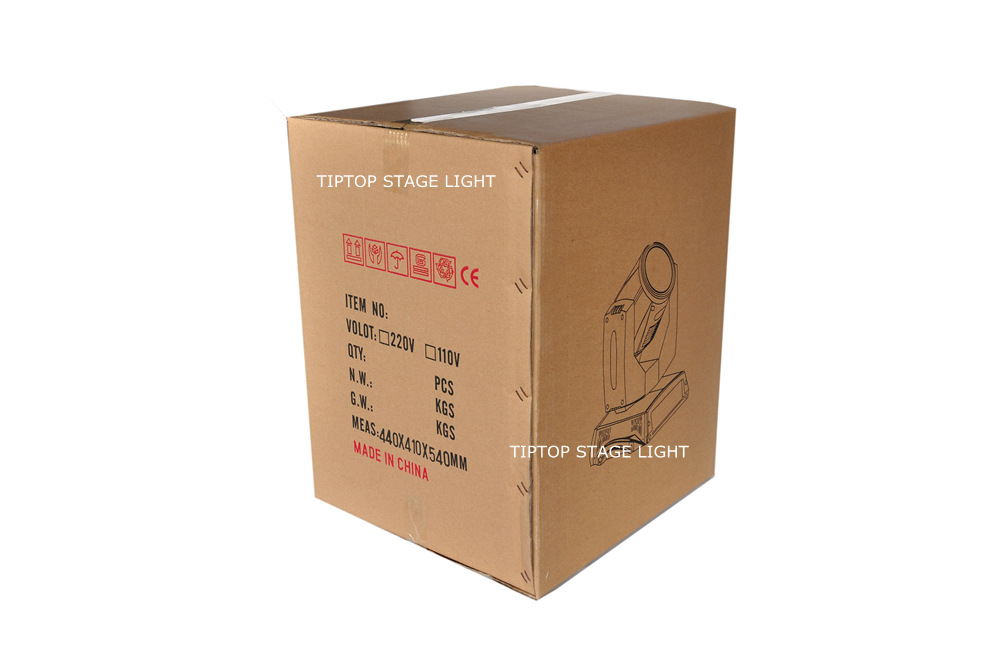

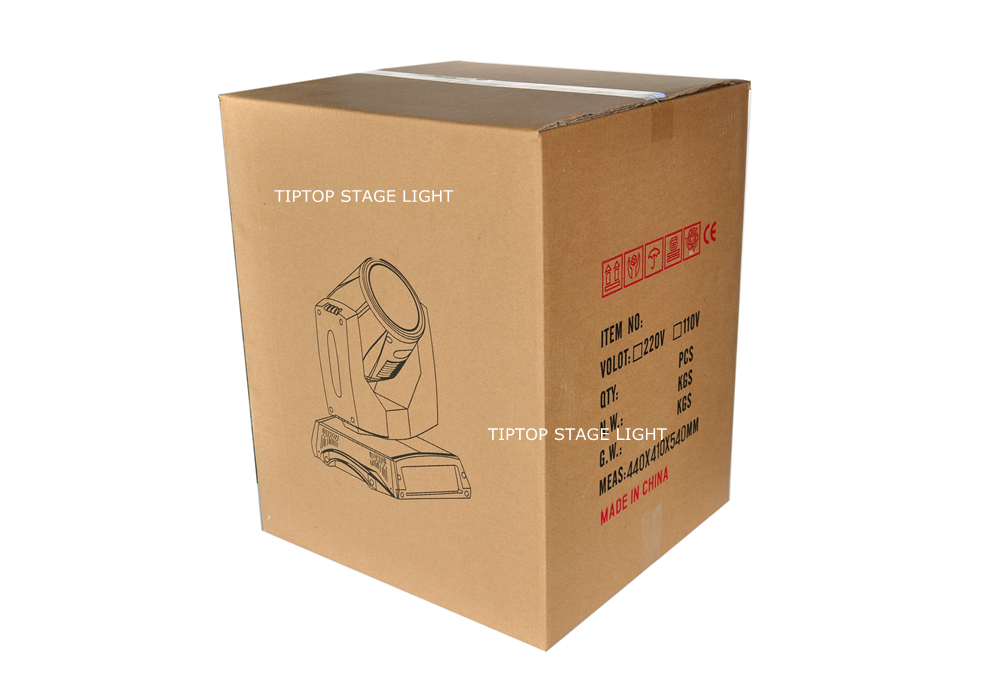

   6): the standand packing way is carton box. we will purchase a wooden case to pack the carton box again. this is a good way to protect the lights. (some company will use carton box only)

  7): we offer 1 year products warranty time. during this time if any spare parts has problem and need to replace. we will offer to customer and no money charge. we pay all the shipping cost. this is what we can promise. ( some company will lie to customer and sell with a cheap price. then charge every spare parts with high price)



So please trust TIPTOP stage light company products! we do not produce cheap and bad products for customer. this is not our business cooperation way!

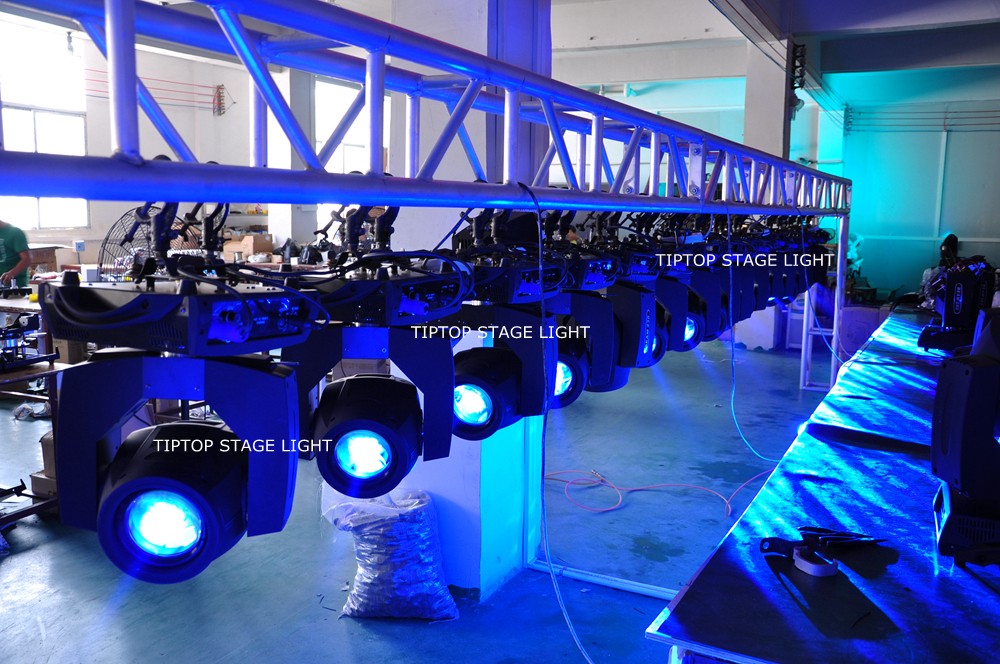

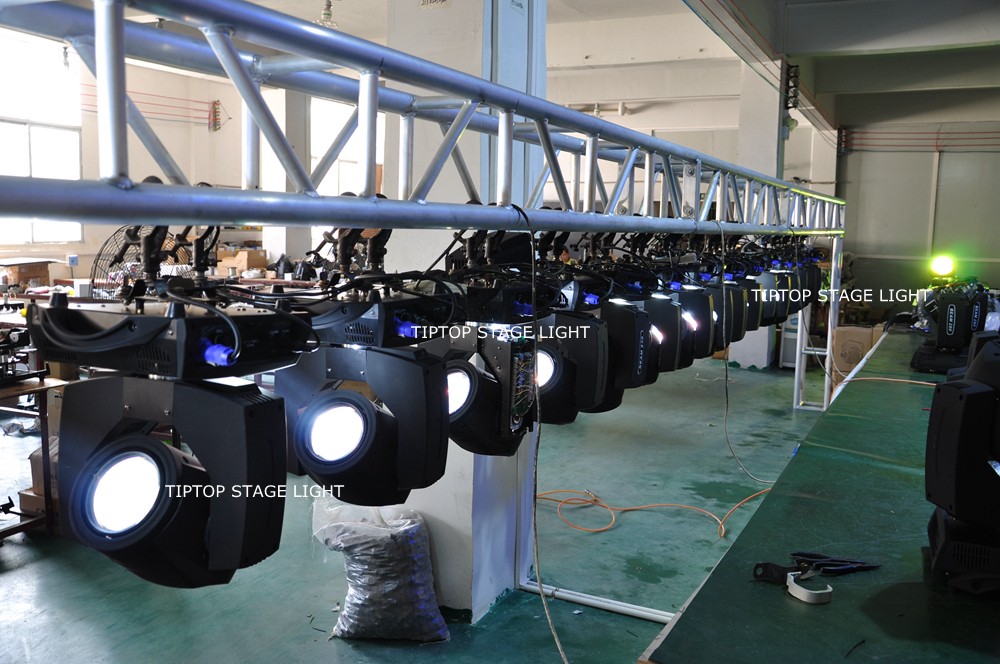

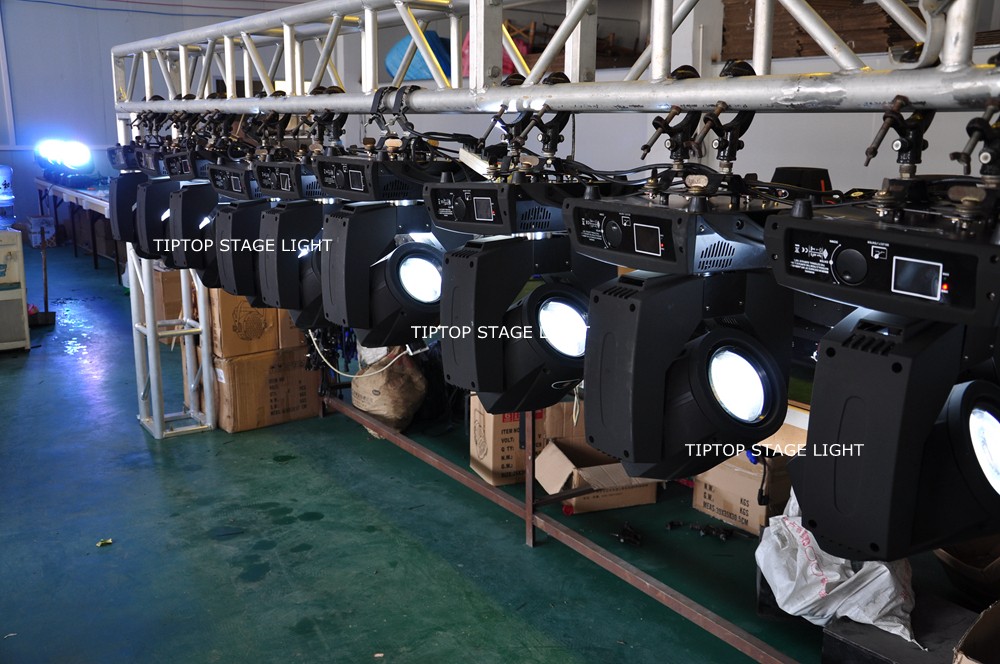

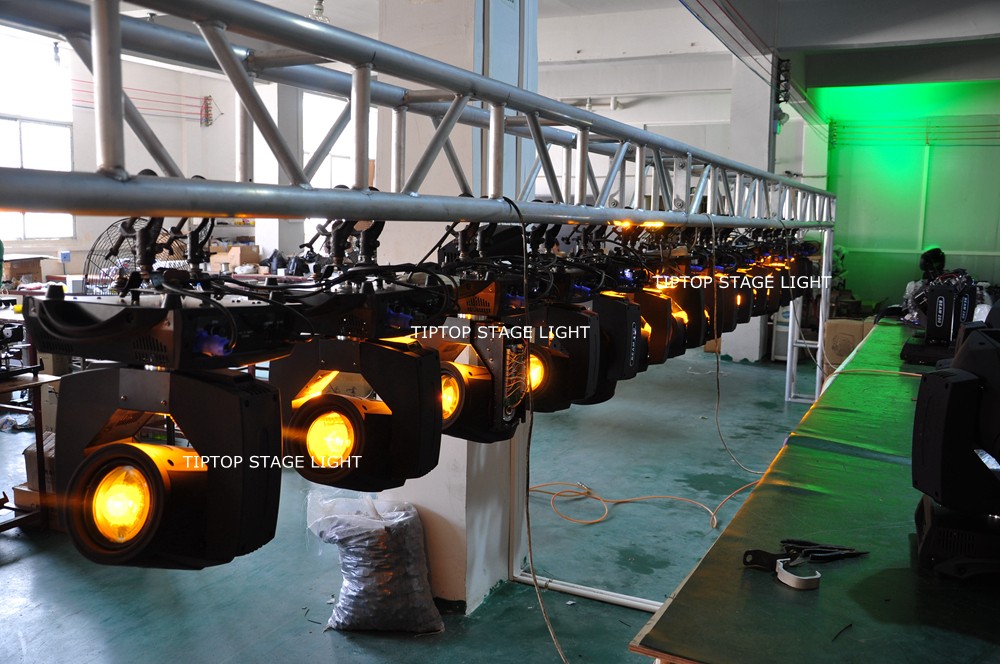

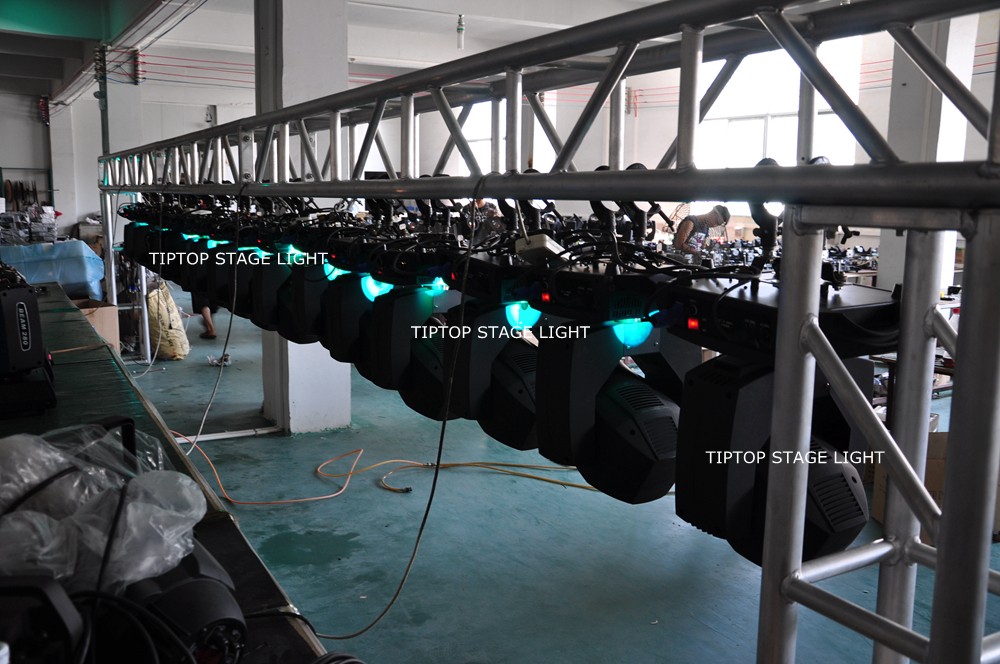

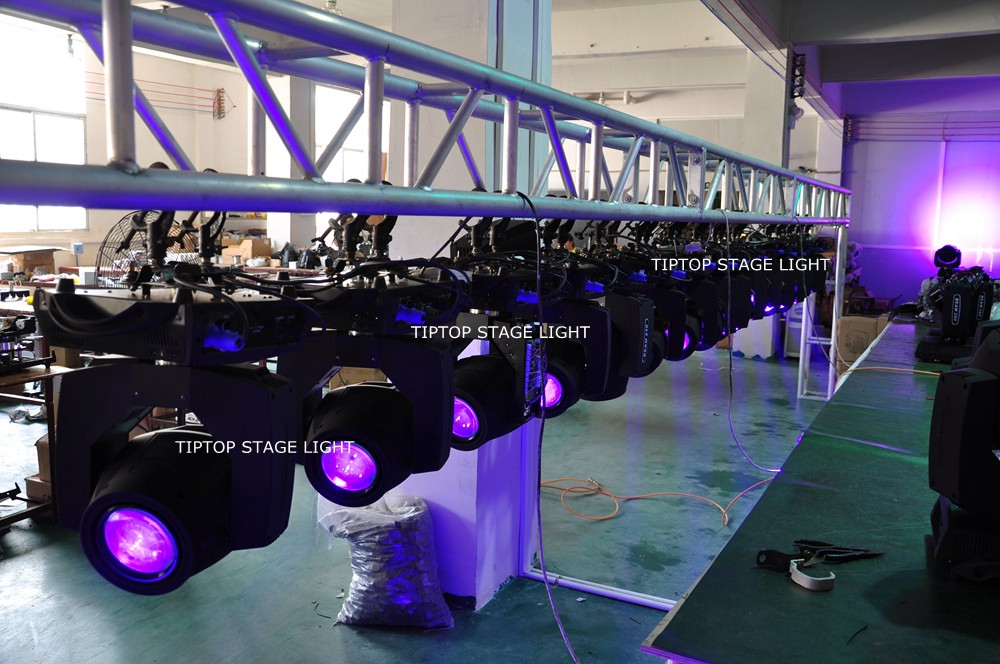

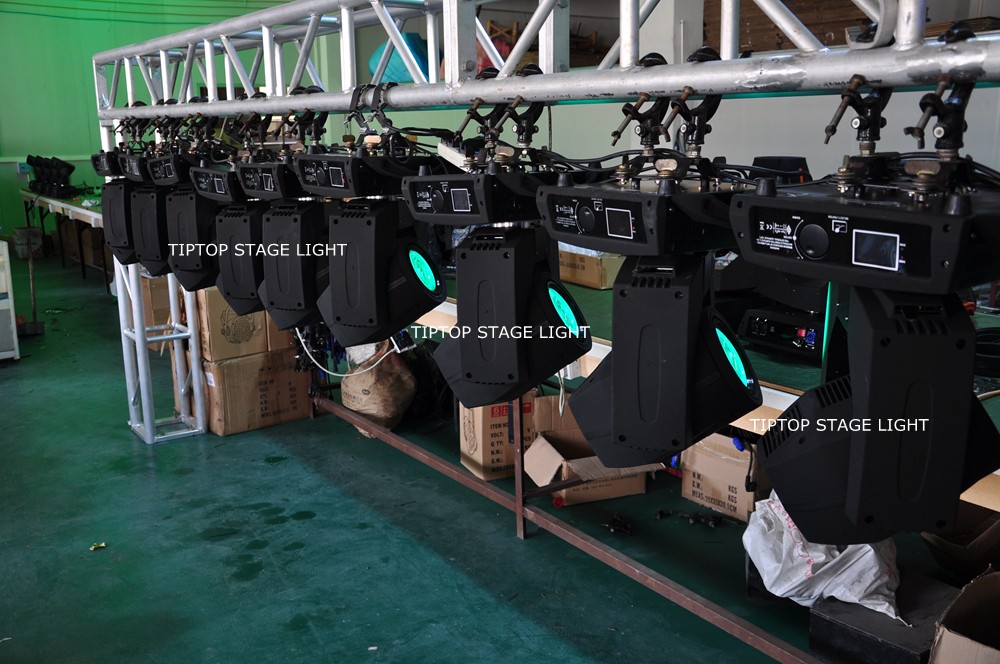

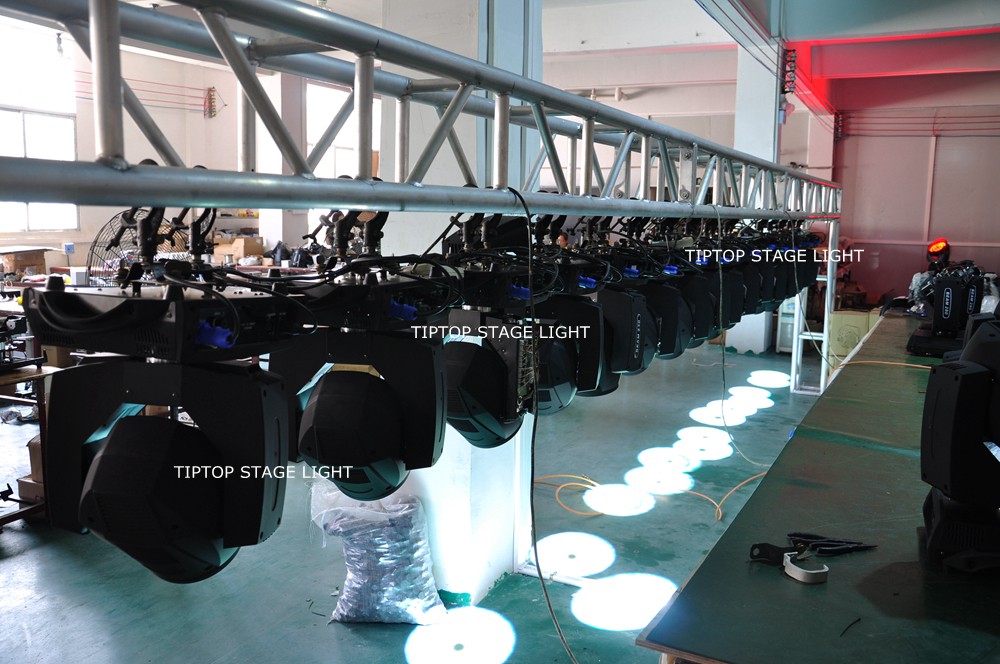

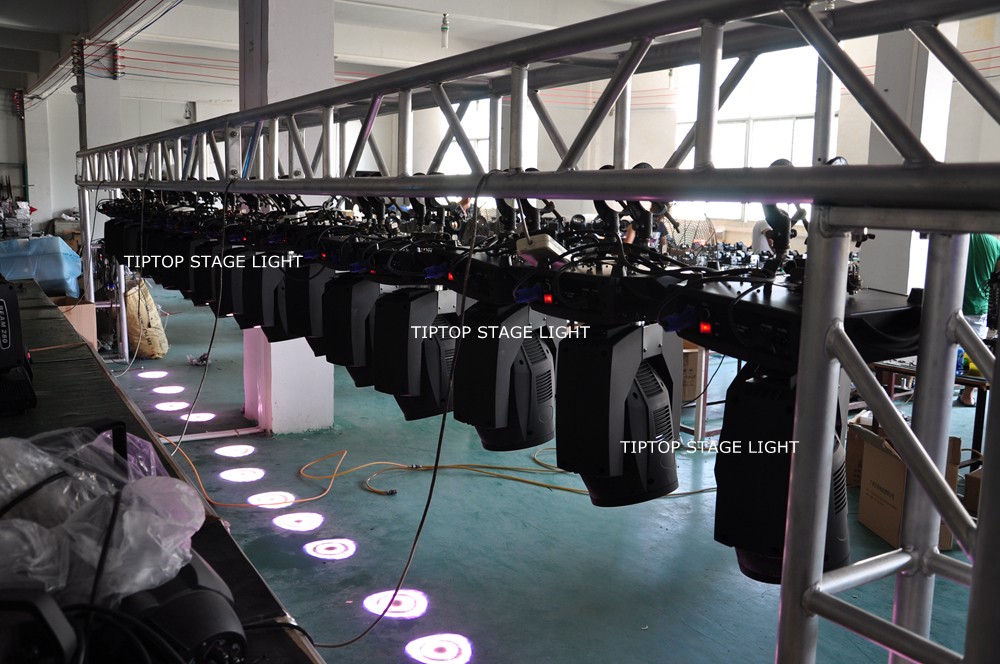

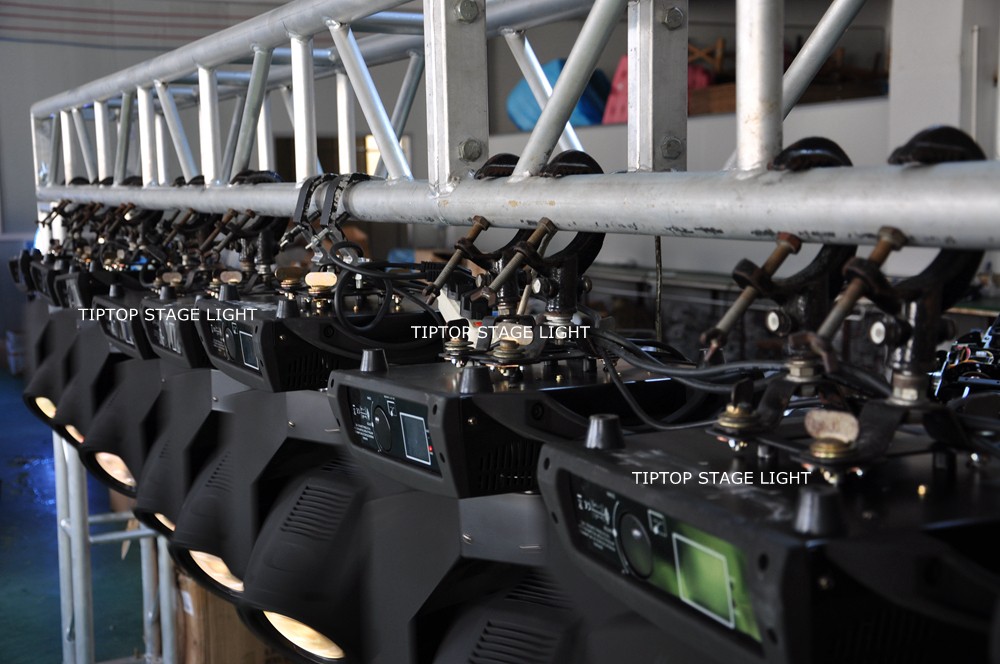

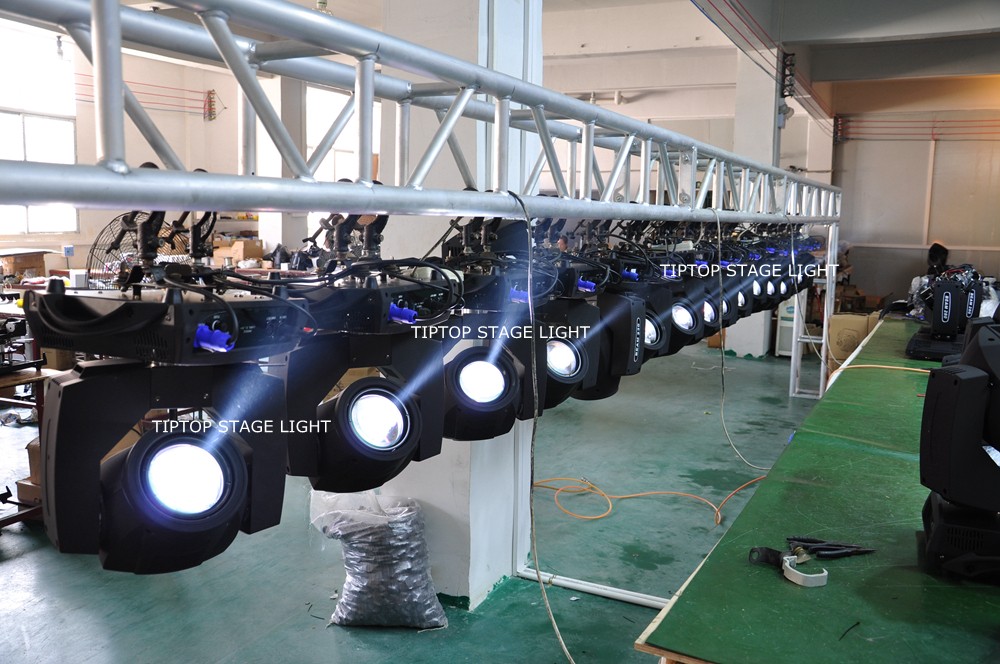

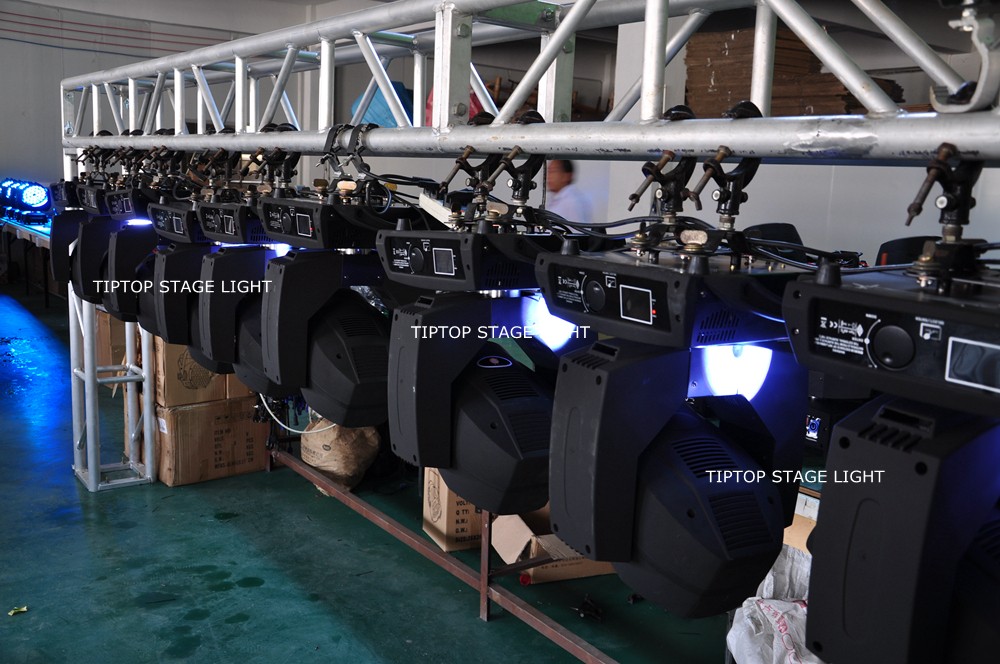

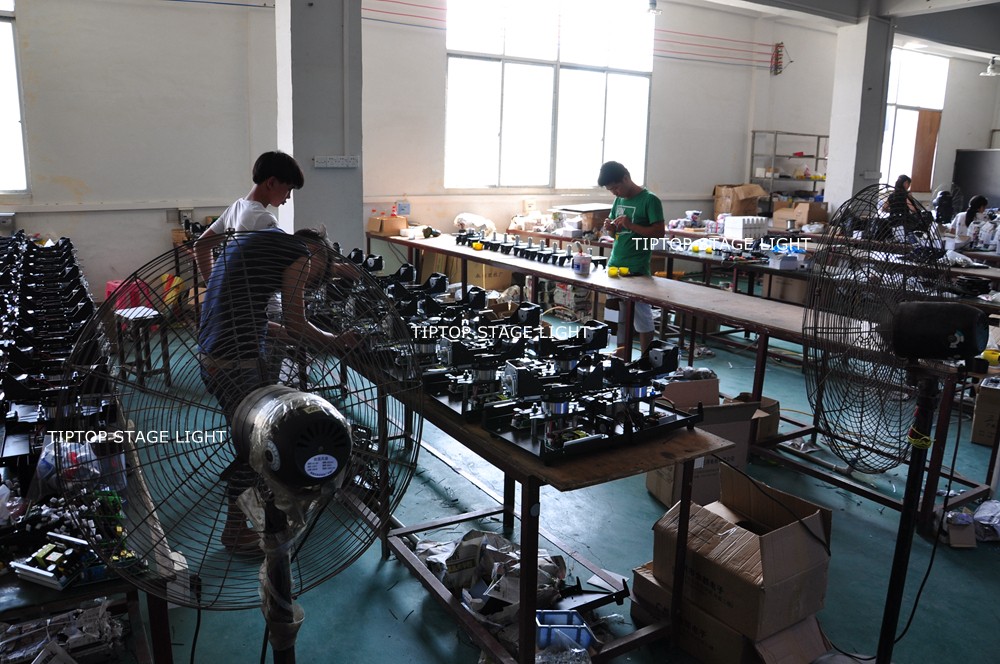

we only purchase good materials to assmble. and full testing 4 days before shipping!  the price is reasonable. no company can do that!

Please Trust us. Choose us! We will not make you disappointed!
