Product Main

Quick Details

Item Type: Stage Lighting Effect
Brand Name: WONSUNG
Style: DMX Stage Light
Occasion: Professional Stage & DJ
Unit Type: lot (8 pieces/lot)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
Package Weight: 2.0kg (4.41lb.)


LED Lighting DFI Wireless DMX Transmitter and Recharegeable Receiver for Diso Dj Home Christmas Professional Lighting
     DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console) by wireless way.No time delay when signal data is transmitting, signal data is real time and reliably.This product adopts a 2.4G ISM frequency section.High effective GFSK modulate,communication design; 126 channels jumping frequency automatically, high anti-jamming ability.

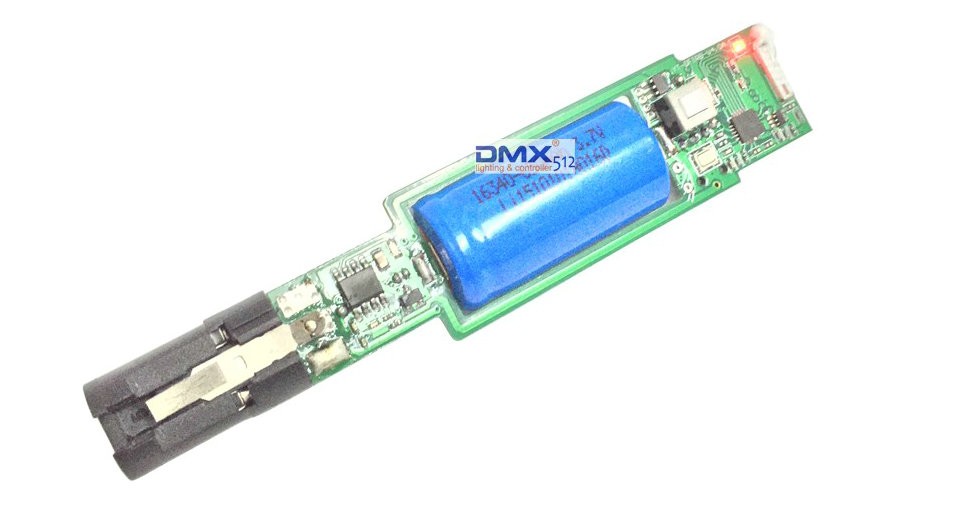

1. 2.4G wireless DMX512 Receiver, built in rechargeable Battery,battery can last about 9 hours.
2. 126 channels jumping frequency automatically, high anti-jamming ability. to ensure works
3. 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere .
4. each other in the same place...(Tricolor LED displaying Indicators)
5. Input voltage:5VDC 500mA
6. Communication distance: 300M (visible distance)
7. Work frequency section: 2.4G ISM,126 channels.frequency section
8. Receiver sensitivity: -94dBm
• Receiver Rechargeable Built-in Battery
• small size: 13.5cm x 2cm x 2cm (transmitter) ; 11cmx 2cm x 2cm(receiver)
• No time delay during data transmission
• 7 groups ID code settable
• Portable and easy to handle
• Economical
• one transmitter can control many receivers
Technical parameters:
Tricolor LED displaying
126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability.
7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.
Built in rechargeable battery, battery can last about 8-9hours
Input voltage: 5VDC 500mA MIN.
Communication distance: 500M.
Work frequency section: 2.4GHz ISM band, 126 channels frequency section.
Max transmitting power rate: 20dBm.
Receiver sensitive: -94dBm.
Signal port: 3 pin male plug (for transmitter) & female plug (for receiver)
Operating manual:
ID code and LED color corresponding correlation:
1: RED
Press key 1 time to indicate ID setting, press again to set ID, then ID value adding 1 each time by press.
Working condition:
LED constant lit up: no DMX or wireless signal
Red LED flash: transmitting
Green LED flash: Receiving
RF frequency------2. 400-2. 525G, total 126 channels, it is searching automatically.
ID Code------1-7 groups ID code, press "Key" for setting, it only can works under same ID code of transmitter and receiver.
Establishing Communication:
1. Power on DMX512 wireless received board and transmitted board.
2. Press "Key" button to set same ID value of transmitted board and received board, please use different ID value if you need to use more than 1 group wireless system at the same time in the same place.
3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.
4. Communication was established correctly then.
• Stage lighting,
• Bar lighting,
• Large literature performance,
• Gymnasium lighting,
• Temporary stage performance,
• City lighting system,
• TV station,
• Conference center,
• Professional showplace,
• Theme parks,
• Disco hall and so on.
      We Ship to Aliexpress address only, else address is not acceptable.
      1.  USA :Estimated Delivery 7~15 business days to major locations by ePacket/ American Line,3~7 business days by DHL.
      2.  AU/UK/IT/JP/KR/Sp, and so on,Delivery time is 8-20 business days,4~8 business days by DHL.
      3. To Brazil ,Russian, Argentian, 20-50 business days by Russian Air or China air post. (Tax maybe required if send from China,and tax is buyers' responsibility according to ebay policy.)
Package included:
     2 pcs DMX512 Wireless transmitter ( No built-in battery )
     6 pcs DMX512 Wireless Receivers ( Built-in battery )
     8 pcs Power plug (US,UK,EU,AU power plug,optional)
