| Item Type: | Lighting Transformers |
|---|---|
| Warranty: | 2 years |
| Output Voltage: | 12 V, 15 V, 24 V, 36 V,48V |
| Plug Type: | None |
| Certification: | CE |
| Input Voltage: | 90 ~ 132VAC / 180 ~ 264VAC by switch |
| Weight: | 2.6kg |
| Output Signal: | DC |
| Features: | full power |
| Input Signal: | AC |
| Model Number: | S-800W |
| Material: | metal case |
| Unit Type: | piece |
| Package Size: | 35cm x 15cm x 10cm (13.78in x 5.91in x 3.94in) |
| Package Weight: | 3.0kg (6.61lb.) |
Quick Details
Specifications
Welcome,my friend! Glad to introduce 800W 1000W switching power supply . If you have any questions, please don't hesitate to ask me.
Product Description
Features

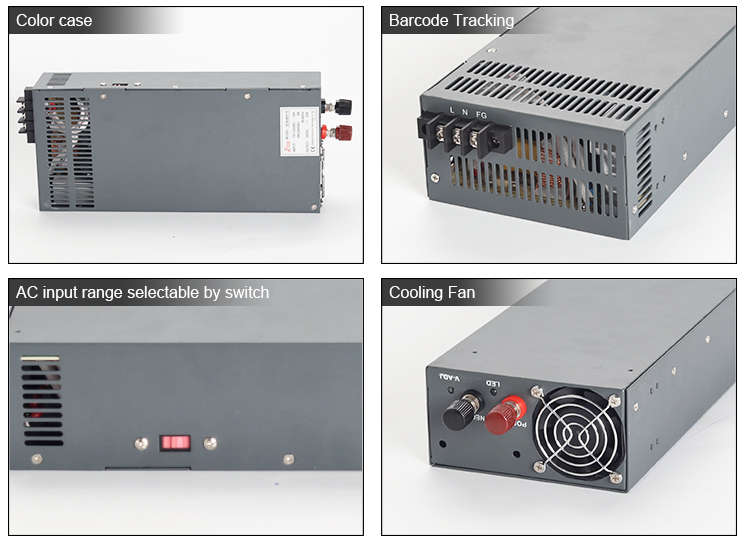

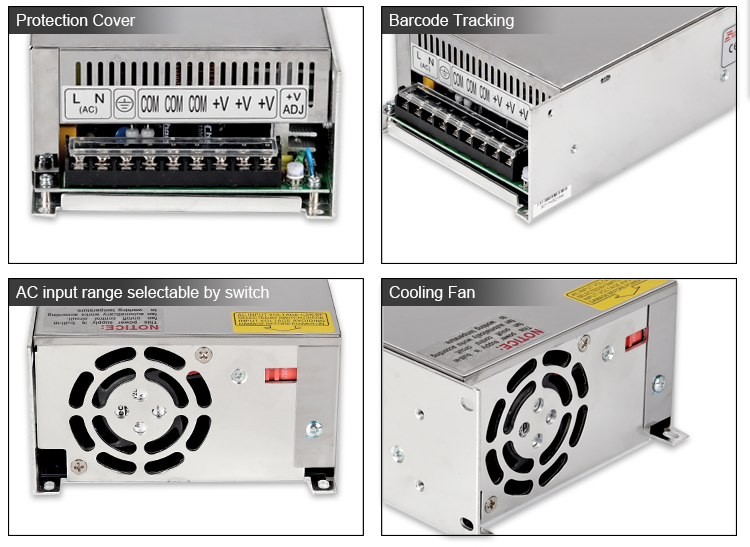

• Universal AC input BY switch
• Protections:Short circuit/Over load/Over voltage/Over temp
• Forced air cooling by built-in DC fan
• Built-in cooling Fan ON-OFF control
• 100% full load burn-in test
| Model 800W | S-800-12 | S-800-24 | S-800-48 | |
| OUTPUT | 12V 66A | 24V 33A | 48V 16A | |
| Model 1000W | S-1000-12 | S-1000-24 | S-1000-48 | |
| Output | DC Voltage | 12V | 24V | 48V |
| Rated Current | 83A | 42A | 21A | |
| Current Range | 0 ~ 83A | 0 ~ 42A | 0 ~ 21A | |
| Rated Power | 1000W | 1000W | 1000W | |
| Ripple & Noise (max.) | 150mVp-p | 150mVp-p | 240mVp-p | |
| Voltage Adj. Range | 10~13.2V | 20~26.4V | 41 ~ 56V | |
| Voltage Tolerance | ±1.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±0.5% | ±0.5% | ±0.5% | |
| Setup,Rise, Hold time | 200ms, 50ms, 20ms at full load | |||
| Input | Voltage Range | 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC | ||
| Frequency Range | 47~63HZ | |||
| Efficiency(Typ.) | 74% | 81% | 83% | |
| AC Current | 6.5A/115VAC 4A/230VAC | |||
| Inrush Current (max.) | 50A/115VAC 50A/230VAC | |||
| Leakage Current | <3.5mA / 240VAC | |||
| Protection | Over Load | 105 ~ 135% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| Over Voltage | 5.75V~6.75V | 15.5V~18.2V | 27.6 ~ 32.4V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| Function | Fan on/ off Control | RTH3 ≥55°c FAN ON, ≤45°c FAN OFF, ≥80°c output shutdown (5 ~ 7.5V) | ||
| RTH3 ≥65°c FAN ON, ≤55°c FAN OFF, ≥80°c output shutdown (12 ~ 15V) | ||||
| RTH3 ≥70°c FAN ON, ≤60°c FAN OFF, ≥85°c output shutdown (24 ~ 48V) | ||||
| Environment | Working Temperature | -10 ~ +50°c (Refer to output load derating curve) | ||
| Working Humidity | 20~90% RH Non-condensing | |||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | |||
| Temp. coefficient | ±0.03%/°C (0~50°C) | |||
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle,60min.each along X,Y,Z axes | |||
| Others | MTBF | 234.3K hrs min. MIL-HDBK-217F ( 25°c ) | ||
| Dimension | 291*132*68mm (L*W*H) | |||
| Packing | 2.6Kg; 12pcs/20.2Kg/0.92CUFT |
|||
