| Features: | 18CH |
|---|---|
| Warranty: | 1 |
| Model Number: | 12V 30A 360W |
| Output Signal: | DC |
| Input Signal: | AC |
| Weight: | 1kg |
| Certification: | RoHS,CE,CCC |
| Material: | metal |
| Input Voltage: | 100-240V |
| Output Voltage: | 12V |
| Item Type: | Lighting Transformers |
| 200000137: | 200002555 |
| Unit Type: | piece |
| Package Size: | 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in) |
| Package Weight: | 2.6kg (5.73lb.) |
Quick Details
Specifications

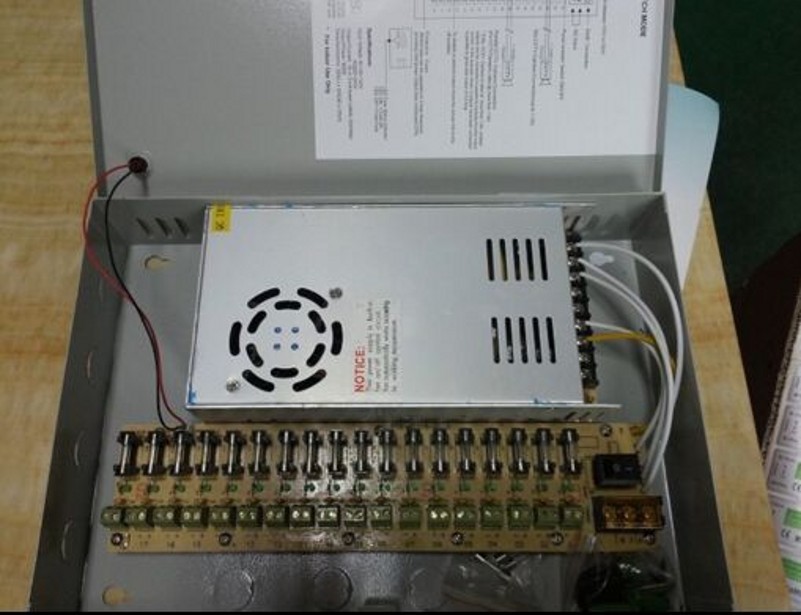

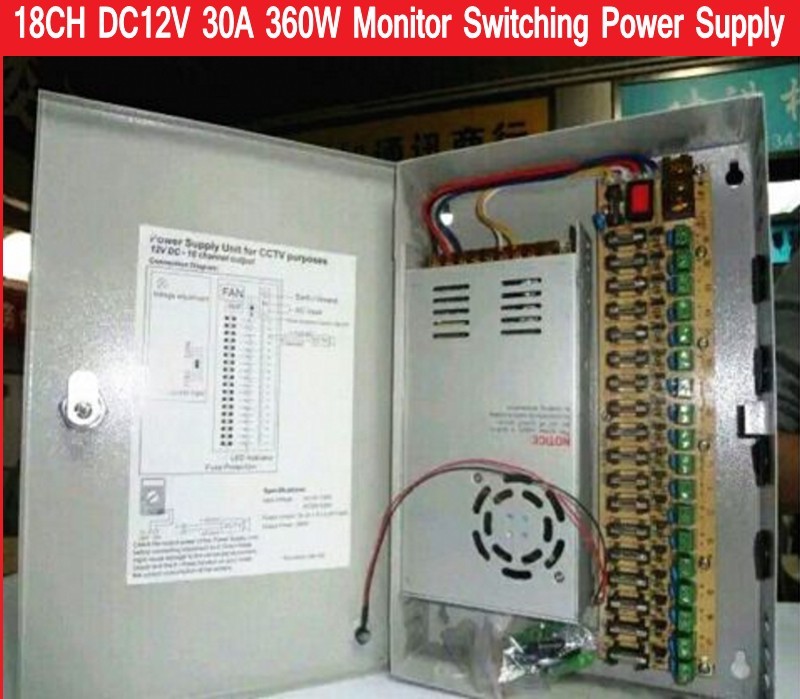

18CH DC12V 30A 360W Switching Power Supply Box / Monitor Power Supply
Main Feature:
High-efficiency, Compliance with environmental protection requirements switching Power Supply\'s circuit structure;
Optimized shape and structure more convenient for connecting system;
Ripple Small - Ensure camera video signal output more stable and clearer images;
Splitter output - a shunt failure does not affect the normal operation of other shunt devices;
Power protection function - with output overvoltage, overcurrent, short circuit protection.
Input voltage: 100-240V AC 50-60Hz
Output voltage:DC 12V
Output voltage adjustment range: 12-14V adjustable
Output current: 30Amp
Output shunt: 18 shunt
Overcurrent protection current: 14A 5%
Ripple: 50mV
Efficiency: 85%
Product size: 310 * 215 * 60
Net Weight: 2.5kg
Support 18 Ports at max for CCTV Cameras Using or led strip light 12v
