| Item Type: | Lighting Transformers |
|---|---|
| Warranty: | 2 years |
| Output Voltage: | 5 V, 12 V, 15 V, 24 V |
| Plug Type: | None |
| Certification: | CE |
| Model Number: | D-30W |
| Input Voltage: | 110vac/220vac |
| Output Signal: | DC |
| Weight: | 0.5kg |
| Input Signal: | AC |
| Features: | FULL POWEWR |
| Material: | metal case |
| Unit Type: | piece |
| Package Size: | 15cm x 12cm x 5cm (5.91in x 4.72in x 1.97in) |
| Package Weight: | 0.7kg (1.54lb.) |
Quick Details
Specifications
Welcome,my friend! Glad to introduce 30w Double Output Switching Power Supply. If you have any questions, please don't hesitate to ask me.
Product Description
Features :

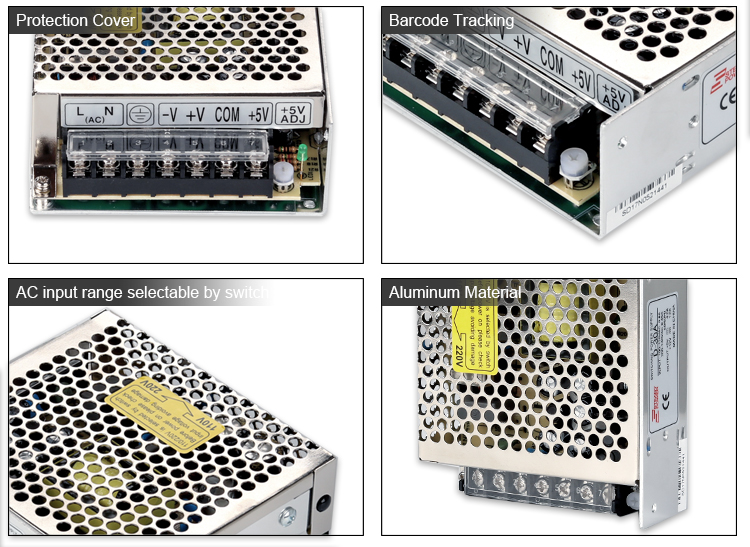

• AC input range selected by switch
• Protections:Short circuit/Over load
• Cooling by free air convection
• LED indicator for power on
• Fixed switching frequency at 23KHz
| MODEL |
D-30A |
D-30B |
|
|
OUTPUT
|
DC VOLTAGE |
5V 12V |
5V 24V |
| RATED CURRENT |
4A 1A |
2.2A 1A |
|
| CURRENT RANGE |
0.5 ~ 4A 0.1 ~ 1A |
0.5 ~ 4A 0.1 ~ 1A |
|
| RATED POWER |
32W |
35W |
|
| RIPPLE & NOISE (max.) |
50mVp-p 100mVp-p |
50mVp-p 100mVp-p |
|
| VOLTAGE ADJ. RANGE |
CH1 : 4.75 ~ 5.5V |
CH1 : 4.75 ~ 5.5V |
|
| VOLTAGE TOLERANCE |
±2.0% + 3,-7% |
±2% + 3,-5% |
|
| LINE REGULATION |
±0.5% ±1.0% |
±0.5% ±1.0% |
|
| LOAD REGULATION |
+0.5% +4.0% |
±0.5% ±4.0% |
|
| SETUP, RISE, HOLD TIME |
200ms, 50ms, 30ms at full load |
||
|
INPUT
|
VOLTAGE RANGE |
85 ~ 132VAC / 170 ~ 264VAC selected by switch 240 ~ 370VDC |
|
| FREQUENCY RANGE |
47 ~63Hz |
||
| EFFICIENCY(Typ.) |
72% 81% |
||
| AC CURRENT |
0.8A/115VAC 0.45A/230VAC |
||
| INRUSH CURRENT(max.) |
COLD START 18A/115VAC 36A/230VAC |
||
| LEAKAGE CURRENT |
<1mA/ 240VAC |
||
|
PROTECTION |
OVER LOAD |
105 ~ 150% rated output power |
|
| Protection type : Fold back current limiting, recovers automatically after fault condition is removed. |
|||
|
ENVIRONMENT
|
WORKING TEMP. |
-10 ~ +60°C (Refer to output load derating curve) |
|
| WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||
| STORAGE TEMP., HUMIDITY |
-20 ~ +85°C, 10 ~ 95% RH |
||
| TEMP. COEFFICIENT |
+0.03%/°C (0 ~ 50°C) |
||
| VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
||
|
OTHERS
|
MTBF |
417.6K hrs min. MIL-HDBK-217F (25°C) |
|
| DIMENSION |
129*98*38mm (L*W*H) |
||
| PACKING |
0.4 Kg; 30pcs/12Kg/0.86CUFT |
||
