DC 12V RGB Flexible LED Strips Controller

Sound to Light Controller

High Power Sound Reactive Controller

Multi-Channel RGB Controller

Audio Activated Controller

LED Spectrum Analyzer Controller

Better than LED VU Meter

Total 27 channels (RGB x 9 Groups) Output

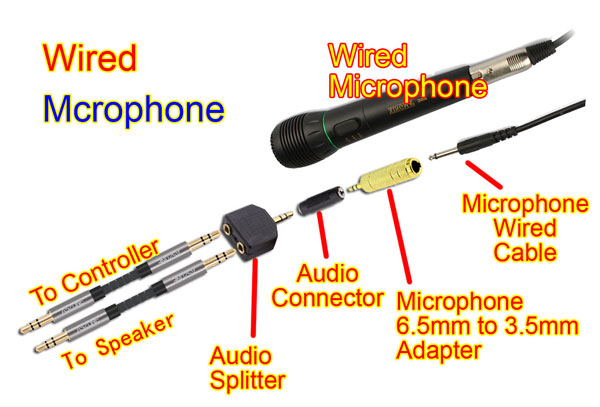

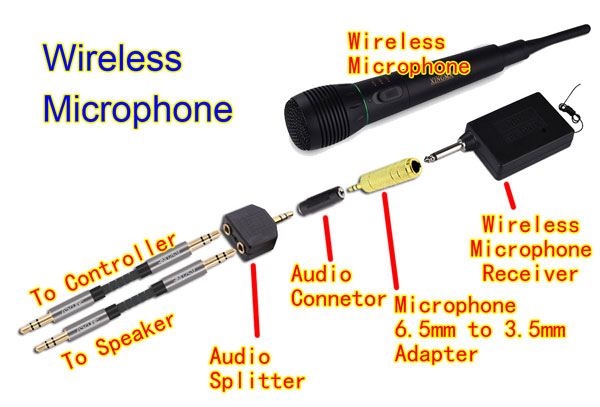

How to connect to your microphone:

*****************************************************************************************

Note: This selling list does not include any LED strips or DC power adapter.

Note: This selling list does not include any LED strips or DC power adapter.

MUSIC / AUDIO / MICROPHONE SYNCHRONIZATION RGB LED STRIPS CONTROLLER

Manual Instruction

Specifications:

(1) 3 X 9 = Total 27 RGB channels

(2) DC Voltage Input: DC 12V. Never power the unit with AC110-240V directly. You need an AC-DC adapter. Max DC current input: 30A

(3) Size: 14.5cm X 9cm X 4cm. Net Weight: 320g

Note: This selling list does not include any LED strips or DC power adapter.

This selling list only includes the controller and the accessories of audio cable and audio splitter.

This RGB-LED-MUSIC-CONTROLLER is perfect for RGB LED flexible strips (or other DC12V RGB LED fixtures) for music / audio / microphone synchronization. It's much more than a simple LED VU-meter or color organ.  Below little video of our controller's most simple application shows the difference. Our RGB-LED-MUSIC-CONTROLLER is MCU based and RGB enabled with soft elastic recovery of visual effects after each audio beat. You can refer to above video clip for it's working.

Three Steps Quick Start Guide for using the controller --

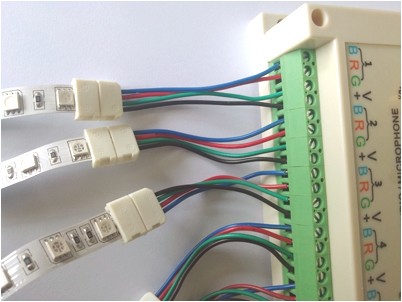

Step 1:

Connect the LED RGB flexible strips to each screw terminals, pay attention to your LED strips' R G B & V+ wires to match the terminals respectively. (Tips: you can connect mutiple strips to one terminal, it's up to your lighting sketch design, just let your imagination roar....)

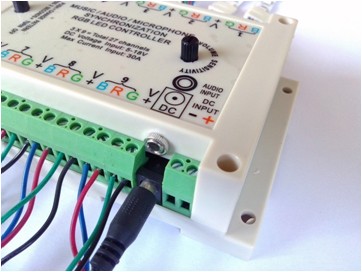

Step 2:

Power the unit with your 12V DC poweradapter.

If your connection is all correct, the LED strips will light up with the internal sequence: Red color, Blue color, and then Green color. This is the default shipment setting in order to let you test and check your LED fixtures' connection at your very first time powering up the unit. It's not music synchronization now. Are you eager to rush into music sync lighting? let's go to step 3.

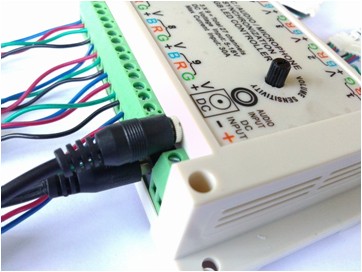

Step 3:

With your 12V DC adapter still powering on the unit, push the black tactile switch one time,  you will find all the LED lightings are off. OK, now we arrive at the music-sync-ready station. Now connect your music/audio/microphone input to the AUDIO INPUT port, you will find the LED fixtures is sound to light (music-sync) now! You can adjust the VOLUME SENSITIVITY knob to adjust your lighting responsiveness.

More words on the black tactile push switch

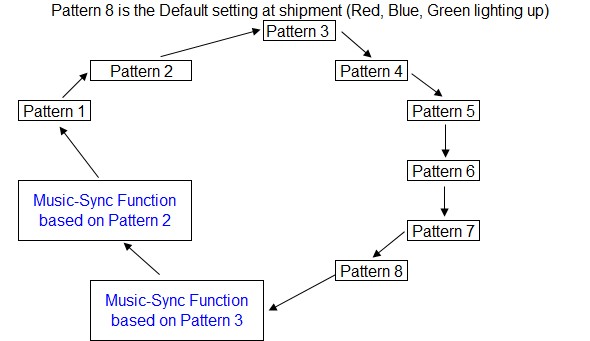

Push = Change Pattern in Cycle.

Press 2 seconds = Turn Off the unit, and then push to turn it on.

Now wake up your imagination to design your own lightings!

Below we show you some sample RGB LED strips wiring connections to our controller.

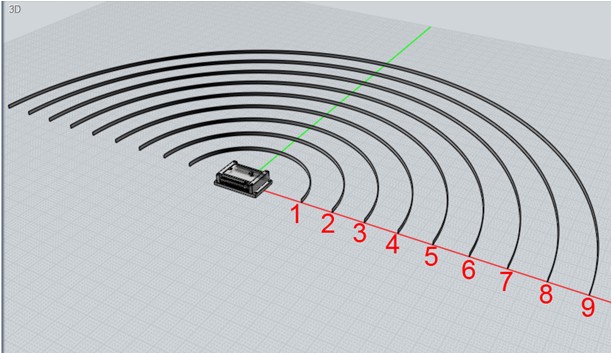

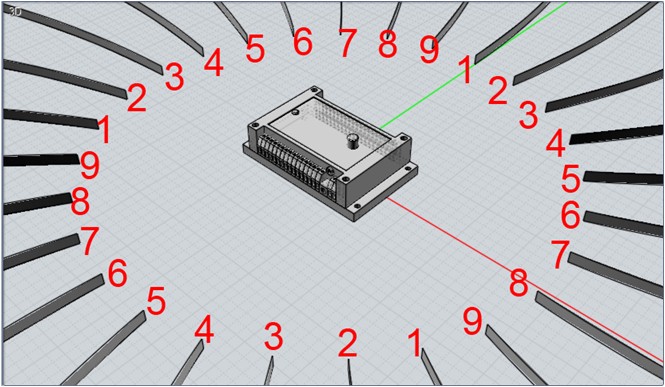

(1) Sunrise with one RGB LED strip to each screw terminal.

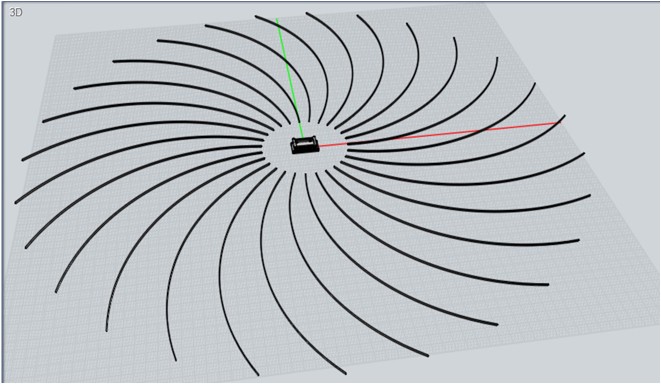

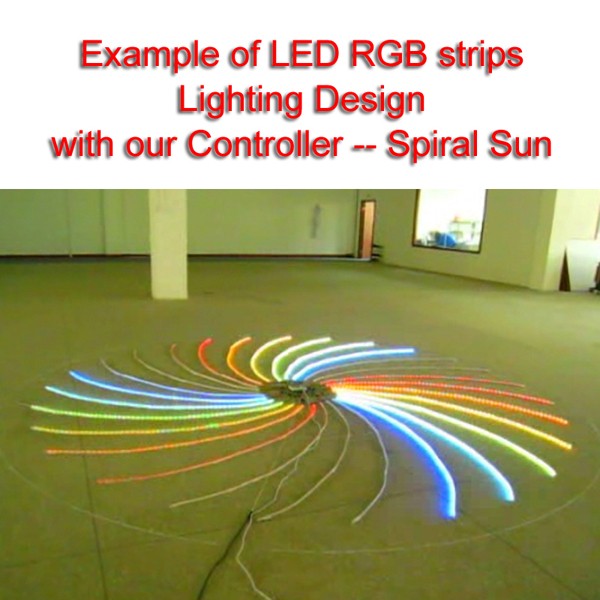

(2) Spiral Sun with three RGB LED strips to each screw terminal.

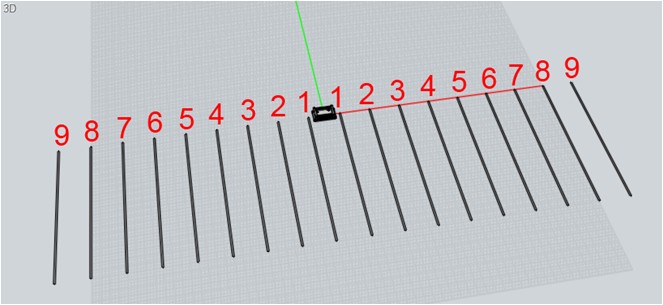

(3) Horizontally Symmetrical with two RGB LEDstrips to each screw terminal.

We provide the controller, you are the boss of your imagination.

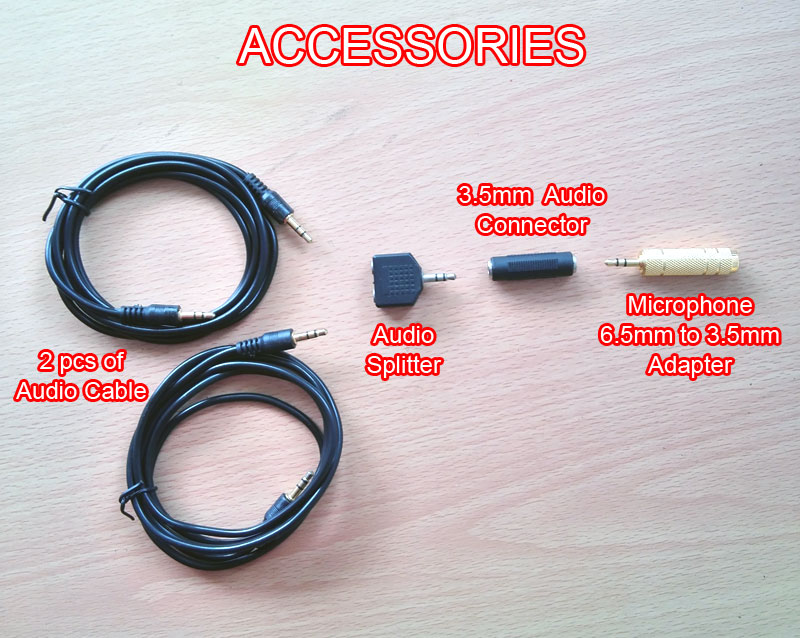

Free Accessories --

Note: This selling list does not include any LED strips or DC power adapter.

********************************************* THE END ***************************************************
