| Item Type: | RGB Controler |
|---|---|
| Features: | - |
| Applicable Lights: | LED strip |
| Warranty: | - |
| Max. Load Power: | - |
| Wattage: | 41-50W(41-50W) |
| Remote Distance: | - |
| Certification: | CE |
| Voltage: | 12V |
| Material: | Aluminum |
| Power Source: | DC |
| Connection Mode: | - |
| Model Number: | - |
| Oscillation frequency: | - |
| Controled Method: | - |
| Unit Type: | piece |
| Package Size: | 20cm x 15cm x 12cm (7.87in x 5.91in x 4.72in) |
| Package Weight: | 0.3kg (0.66lb.) |
Quick Details
Specifications
No.12 PLC programming controller colorful controller scanning controller monochromatic controller independently
Accessories: controller 1 PCS + print line 1
After buying specialized software and detailed how-to tutorials provide (by email)
A, technical parameters
Low power supply voltage: DC5-24 v
Low connection mode: Yang
Low installation dimensions: 165 * 85 * 26 mm
The low weight: 290 g
Low output current: < 5 a/way
Low control way: 12 road
Second, the DIY - USB controller features
1, a single monochrome leds runners can control 12 road, 7 colour 4 road running,
2, DC5 - wide working voltage 24 v, can control the leakage light, modules, light bar.
3, 12 road output, each output current up to 5 a, support monochromatic visible light, modules are 3000

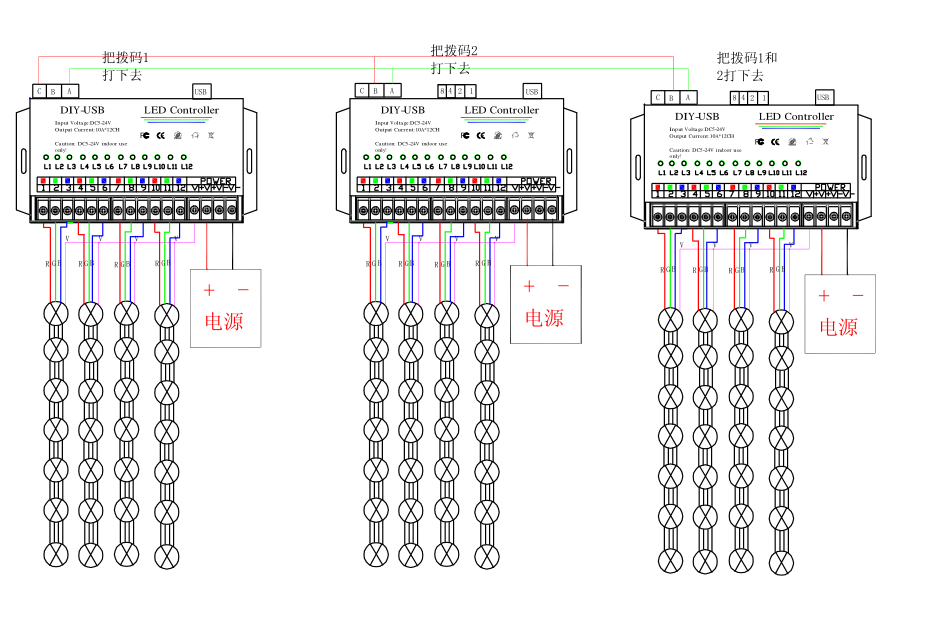

4, more than one can cascade synchronous controller, can control up to 120, the effect can modify, via USB download, simple and convenient operation, strong randomness.

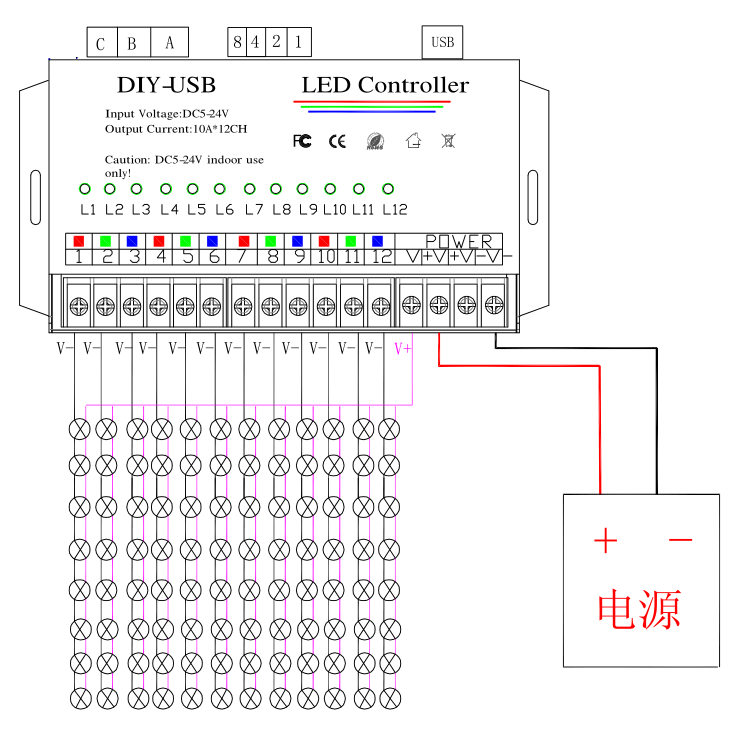

Controller schematic monochromatic products:

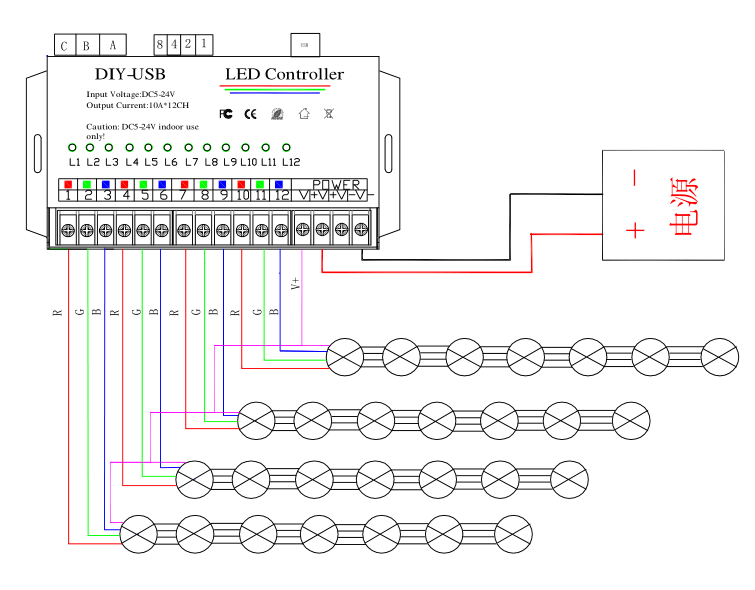

Controller by RGB sketches of lamps and lanterns:
