| Item Type: | RGB Controler |
|---|---|
| Power Source: | DC |
| Certification: | CE,RoHS,CCC |
| Voltage: | 5-24V |
| Warranty: | 3 years |
| Connection Mode: | direct connection |
| Applicable Lights: | LED RGB Light |
| Model Number: | DMX-SPI-201 |
| Remote Distance: | - |
| Oscillation frequency: | - |
| Features: | RGB Controler |
| Controled Method: | DMX |
| Max. Load Power: | - |
| Wattage: | - |
| Material: | metal |
| Unit Type: | piece |
| Package Size: | 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in) |
| Package Weight: | 0.3kg (0.66lb.) |
Quick Details
Specifications

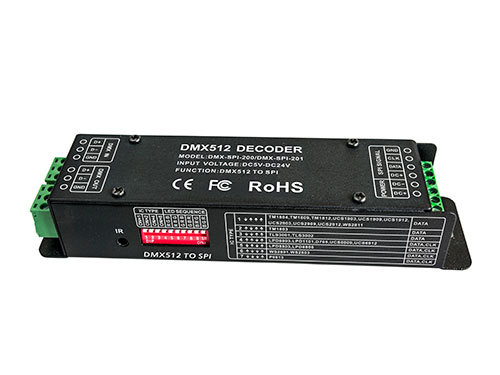

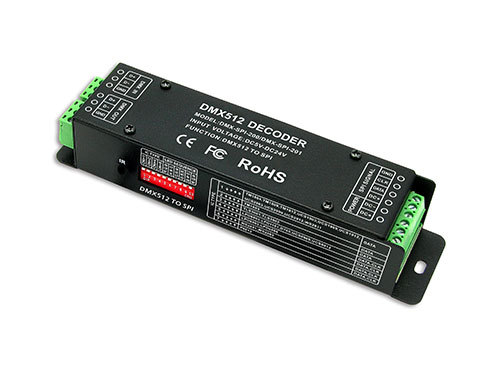

LTECH DMX-SPI-201 DMX 512 Digital Signal to SPI(TTL) Signal LED Decoder Switch ucs1903 LPD6803 WS2801 2812 WS2811 IC Pixel Strip
introduction
DMX-SPI-201 is DMX-SPI signal decoder, which convert the DMX512 digital signal into SPI(TTL) digital signal. It can work on the DMX console to control the LED lights with compatible driving ICs. DMX console can control every channel of the LED lights, realizing 0-100% dimming and various changing effect.
DMX-SPI-200 can switch 7 kinds of IC type, support more different lamps types of IC driver.
Performance Features

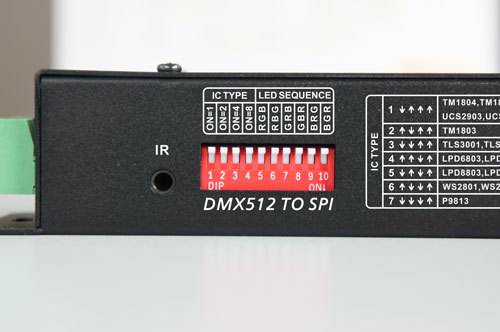

Can switch 7 kinds of IC type, support more different lamps types of IC driver.
Compatible with IC type list, be clear at a glance.
According to the different LED lamps can switch freely RGB line sequence..
Can be used as SPI console controller, with 35 kinds change effect
Product parameter
| Input signal | DMX512 |
| Input power | DC5V~DC24V |
| Decoder channels | 512 DMX CH/unit |
| Gray scale level | 256 levels/CH (8bit/CH) |
| Compatible IC | TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, TM1803, TLS3001, TLS3002, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813 |
| Dimming range | 0~100% |
| Working Temperature | -30-65 |
| Product Dimensions | L175×W42×H33mm |
| Package Dimensions | L178×W46×H58mm |
| Weight(G.W) | 310g |
