| Item Type: | Ballasts |
|---|---|
| Matched Tube: | T5 |
| Model Number: | bcx-en |
| Warranty: | 2years |
| Features: | High quality 2d/3d crystal laser inside engraving/cutting/printing mac |
| Ballast: | Electromagnetic |
| Unit Type: | piece |
| Package Size: | 2cm x 2cm x 2cm (0.79in x 0.79in x 0.79in) |
| Package Weight: | 1.0kg (2.20lb.) |
Quick Details
Specifications

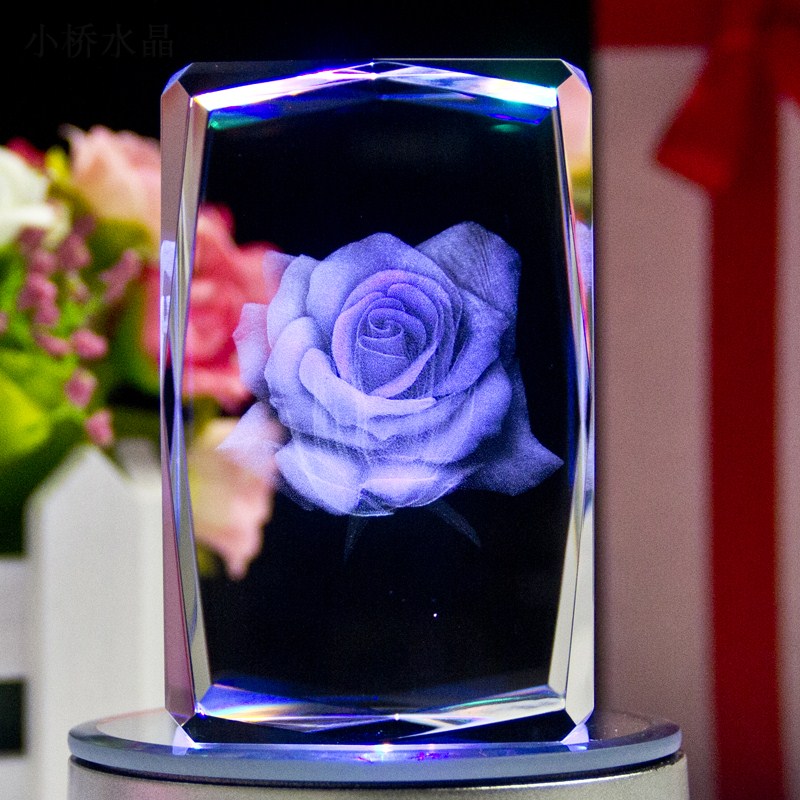

BCX-laser's 3d Crystal Laser Engraving machine machine can engrave 2D or 3D stereoscopic pattern inside of crystal, glass and other transparent materials. It can engrave 2D/3D portrait, name footprints, trophies, medals, and other personalized gift and souvenirs, and it is also suitable for mass production of 2D/3D animals, plants, buildings, vehicles, ships, aircraft and other models of products and 3D scene display.
parameter
| Type | 3D Crystal Laser inner Engraving Machine |
| laser / laser wavelength | semiconductor diode/ 532nm |
| laser repetition frequency | 4000hz |
| marking speed | 220,000dots/min. |
| max. marking scope | 150*200*80mm/300*400*150mm |
| focus diameter/resolution | 0.02nm/ 1200DPI |
| working | with high speed scanner+X+Y+Z (5 axis) |
| positioning accuracy | 10μm |
| continuous working time | 24 hours |
| cooling | air cooling |
| lifetime | >50,000hours |
| gross power/noise | 3W/ 50db |
| power requirement | single phase 220V or 110 V (+/- 10%), 50Hz or 60 Hz |
| software | self reseach software for 3D, 2Ddots cloud, and for control machine |
| suitable materials | Crystal, glass, hard plastic, acrylic, metal, etc. |
| working environment | temperature15-30°C |
Certifications
Company Information
Our commitment is to continue to improve the level of technology by research and development, standardization of scientific management, excellent product quality and customer ndly cooperation. Over the years, our products have been exported to more than one hundred countries and regions.
Packaging & Shipping
Our Services
FAQ
Q: Can I have my LOGO on my products?
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.
Q: What is the bulk order delivery time?
A: Order lead time will be 2-10 working days, depend on product you order.
Q: How long is your warranty?
A: Lasts for 12 months.
Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
