T5000 series thermostats are designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature as reaching the aim of comfort and saving energy.

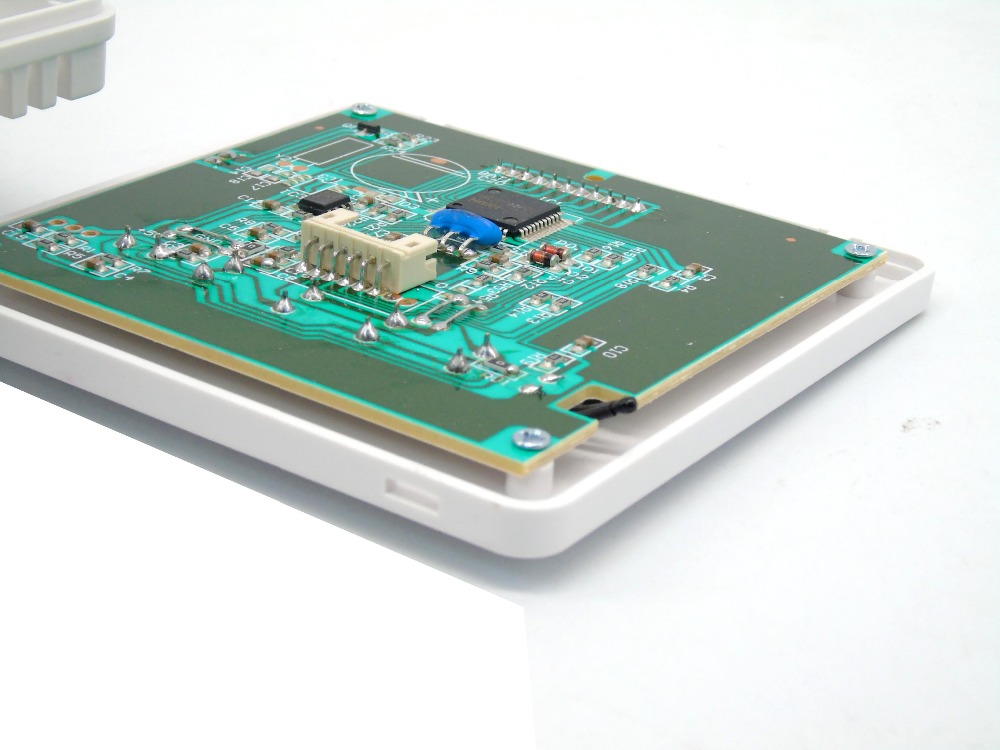

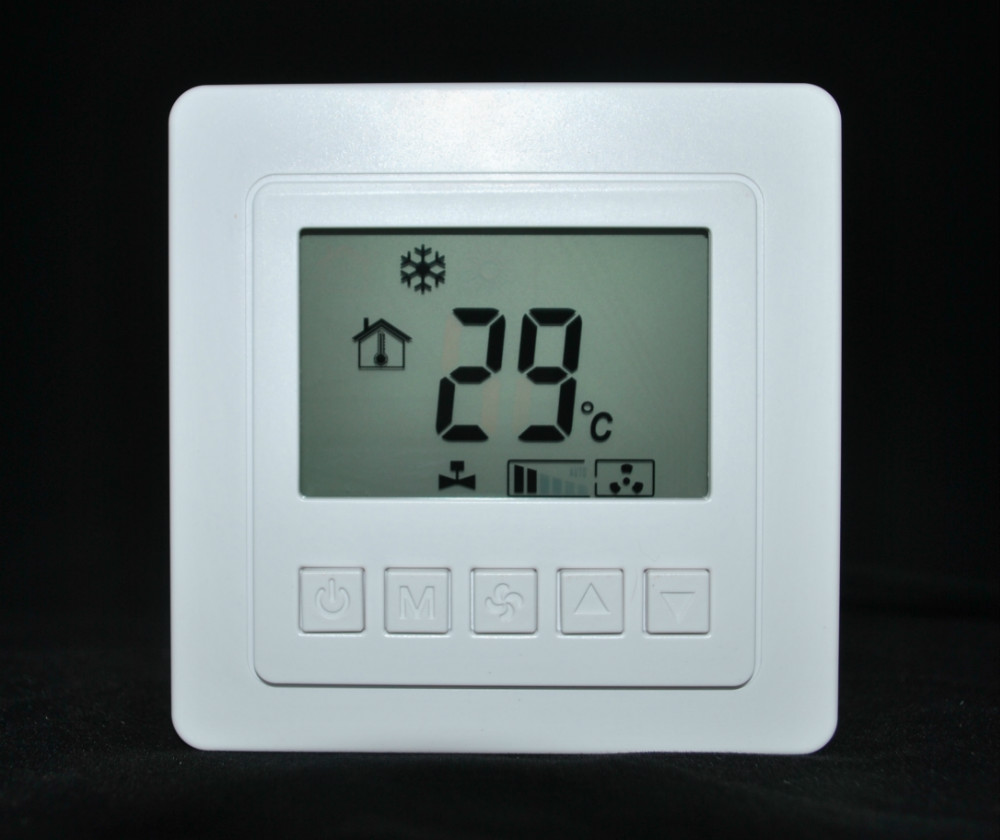

T5000 are microprocessor based thermostat with LCD display.It shows the follwing items:working states (cool/heat/ventilation),fan speed, room temperature,setting temperature.



Features

  Work modes (Cool,Heat,Auto or Vent)
  Fan speed (Low,Med,High or Auto)
  Low temperature protection function
  Time on and Time off
  Surveys, display and set room temperature

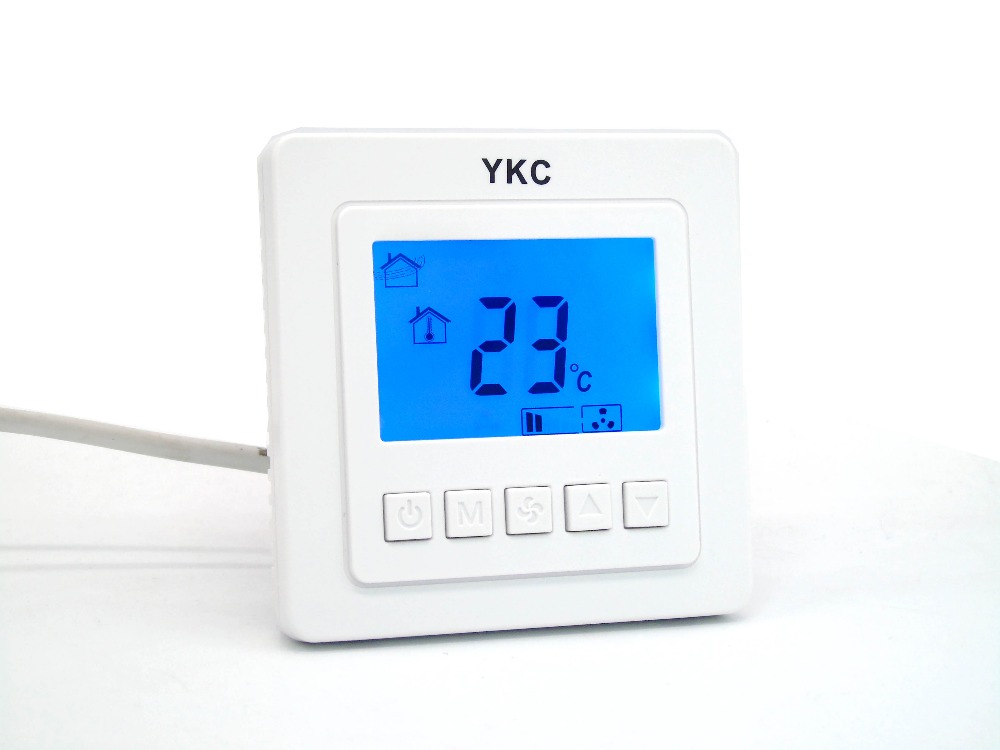

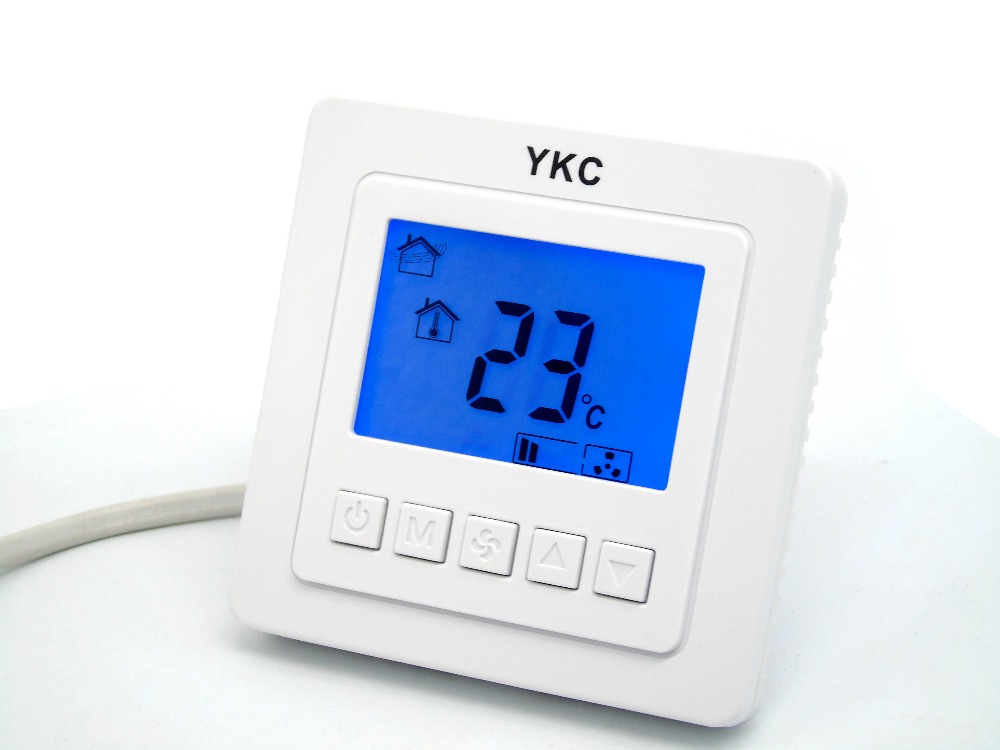

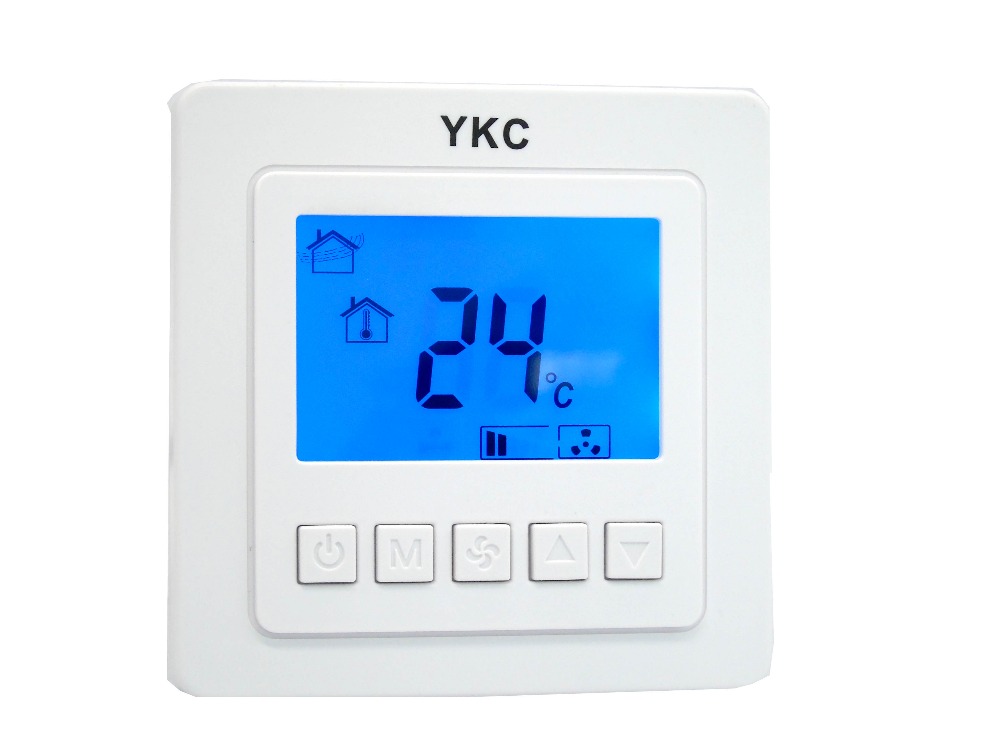

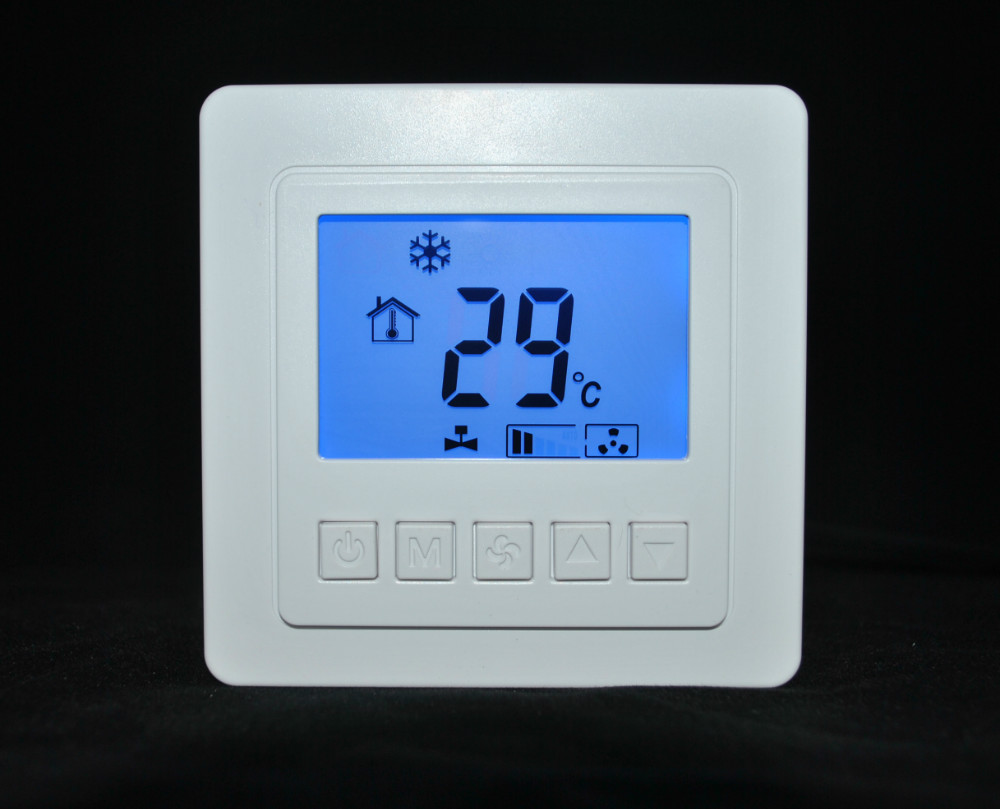

  Large, clear, LCD backlit display. Easy-to-see and read
  Memory function: parameters are permanently held in memory and retained during power outages.
  Guards against the rime function
  Anti-freezing protection

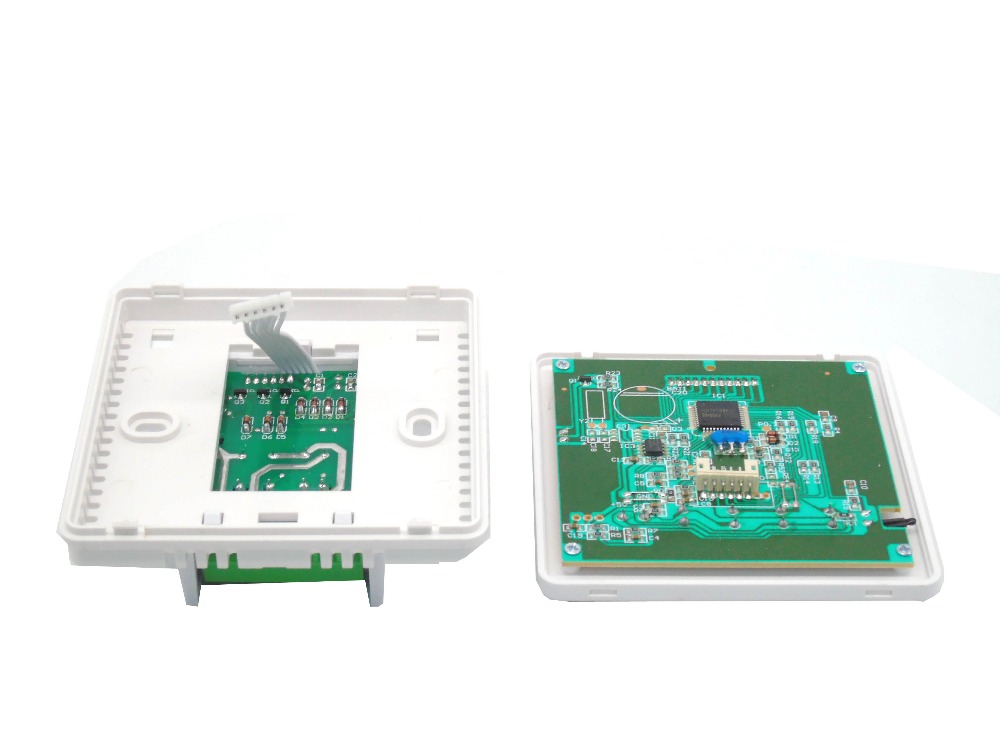

  Reliable DC power supply by transformer
  Reliable output by relays
  Five push-button for Power ,Mode ,Fan speed , Up and Down
 Three grades fan speed intelligent controlled with cooling, heating and auto mode
 LED backlight control keys, easy identification even in darkness
 Energy saving up to 30%



Specification

Supply voltage: 110-220VAC±10%, 50/60Hz
Temperature control precision: ± 1°c
Temperature control rating: 5°c-35°c
Temperature range : 0° c -40° c
Sensor type: NTC
Relative humidity: <85% (23°c)

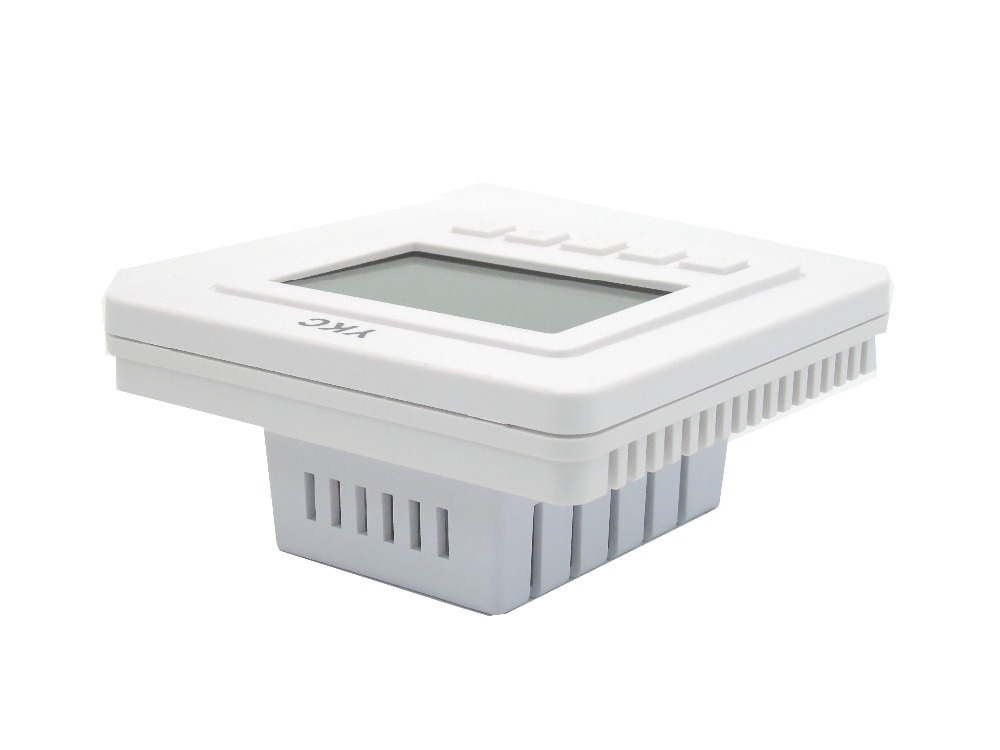

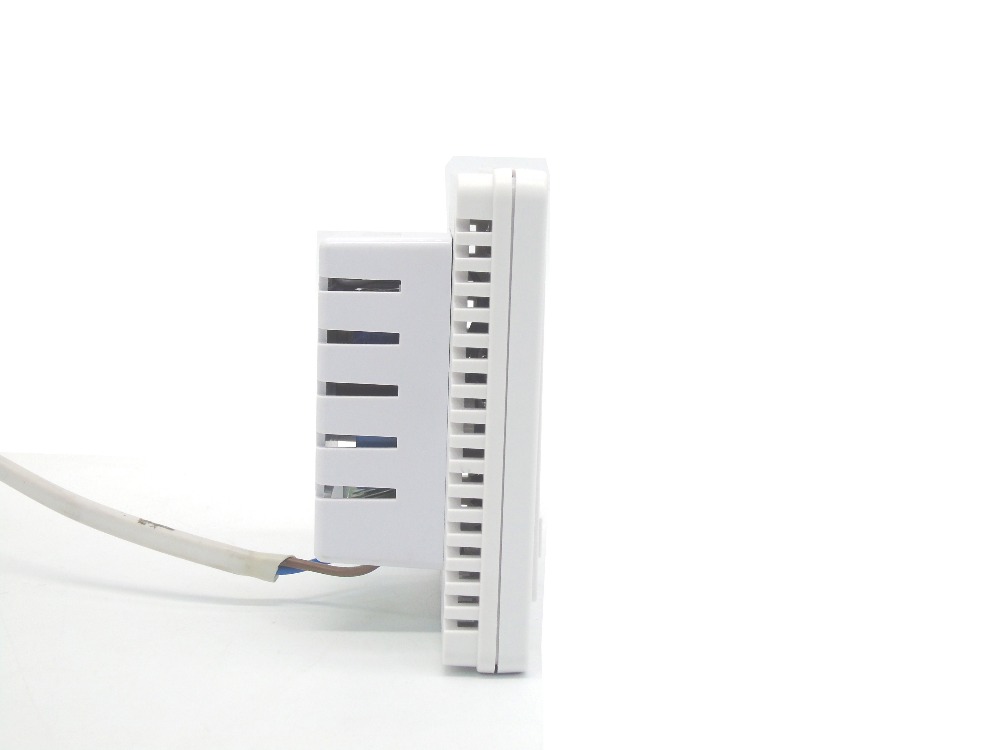

Dimension: 86mm X 86mm X 35mm (H/W/D)
Size of display:68 mm X 45mm (H/W)

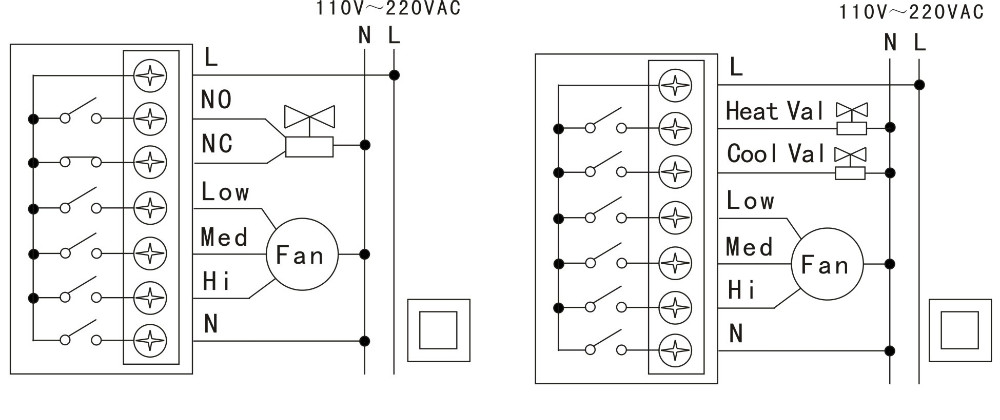

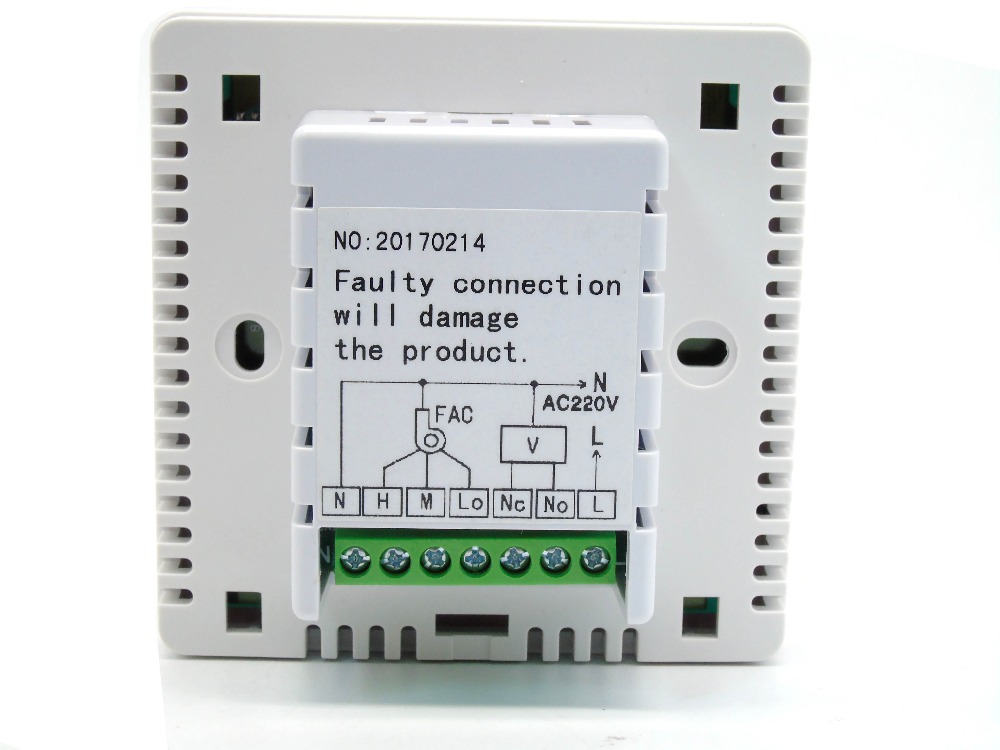

 Wiring terminal designations and connections for typical applications appear in Figure

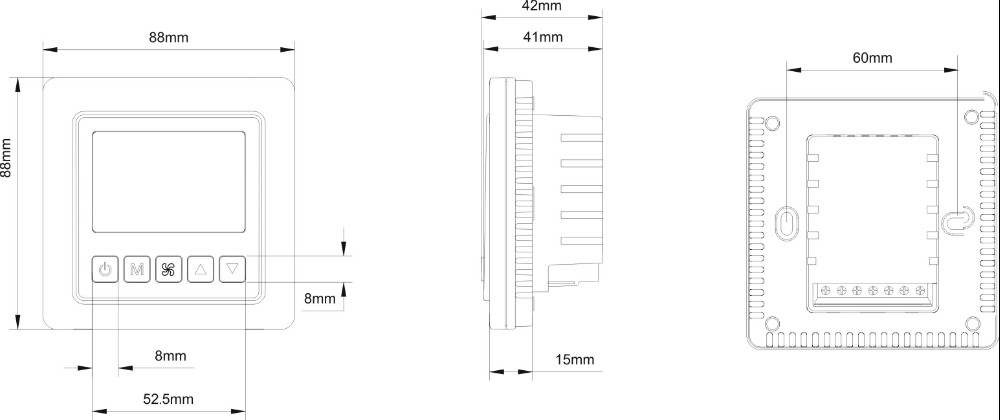

 Dimensions in (mm)







Mounting

Mount the T5000 Series thermostat to a 86×86×35mm standard electrical wallbox.Follow the instruction in Removing the Base and then proceed to the Wall Mounting and the Wiring sections.
Note:All T5000 Series models require two M4×25 mounting screw(included).
