| Model Number: | BX-5M4 |
|---|---|
| Motor Type: | display showing image |
| Communication: | Network+RS232 |
| Multi-language support: | Yes |
| Animation support: | Yes |
| Temperature & Humidity: | Support |
| Clock time animation: | Embeded |
| Place of Origin: | Fujian, China (Mainland) |
| Unit Type: | piece |
| Package Size: | 13cm x 10cm x 10cm (5.12in x 3.94in x 3.94in) |
| Package Weight: | 0.2kg (0.44lb.) |
Quick Details
Specifications

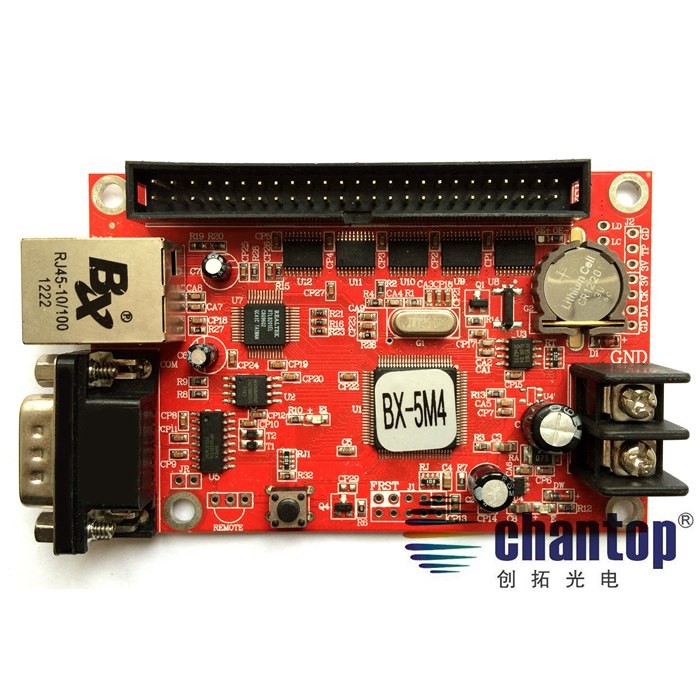

BX-5M4 LED display module control card specification:
Applications:
Mainly for website application, support the LAN and internet.
A best choice for single screen or cluster display system.
Widely used in larger lintel display screen and LED cluster display system.
Features:
On-board 100M Ethernet Interface, MAC bindings Mechanism,Ethernet auto-connection.
Support PC direct connection/cross-Ethernet connection/cross-internet connection
Flexible and rich display control, high cost performance
3.5V- 6.5V wide voltage range. -40°C~80°C wide work temperature.
Support software update online
Support temperature sensor and temp&humidity sensor
Technical parameters:
| Product model |
BX-5M4 |
| Product status |
The latest 5th generation products |
| Control area |
Single color128K: |
| Memory storage |
2MByte |
| Screen types |
All kinds of single and double colors LED screen |
| Software function |
Screens cluster management/multi-program/multi-areas display/multi-languages |
| Program type |
Normal/Shared program |
| Program quantity |
Support 128 programs,24 areas for each program |
| Area type |
Image/text/animation/lunar calendar/digital clock/analogue clock |
| Frame mode |
Most advanced colorful / magic graphics frame/Area frame |
| Background |
Support text/image/colorful and active background |
| Time mode |
Analogue clock/digital clock/timing and counting-down timer (support multi-groups) |
| Communication mode |
100M Ethernet and RS232 port |
| Interface |
1 * 50 PIN |
| Sensors supported |
Temperature /humidity |
| Remote control |
Remote control program/lock screen/brightness adjustment/power on/off /screen test |
| Bright regulation |
16 grades brightness, manual and auto-timing adjustment/remote control |
| Power on/off mode |
Auto-timing powered on/off /software power on & off/remote power on&off |
| Voltage |
5V (3.5V~6.5VwideVoltage) |
| Maximum power |
≤2W |
| Temperature |
-40°C~80°C |
| Secondary development |
Provide the DLL and corresponding demos |
| Software |
LedshowTW2015 |
| User manual |
LEDshowTW software user manual |
| Adapter |
HUB256-T8 HUB128-T8 HUB256-T12 HUB128-T12 |
