Motor Type: DC Motor
Voltage: 24V
Power Supply: DC
Model Number: ACS606+BLM57090-1000
work: 24VDC
Power: 90W
encoder: 1000
Speed: 3000RPM
Torque: 0.87NM
Unit Type: piece
Package Size: 30cm x 25cm x 15cm (11.81in x 9.84in x 5.91in)
Package Weight: 2.0kg (4.41lb.)

Specifications

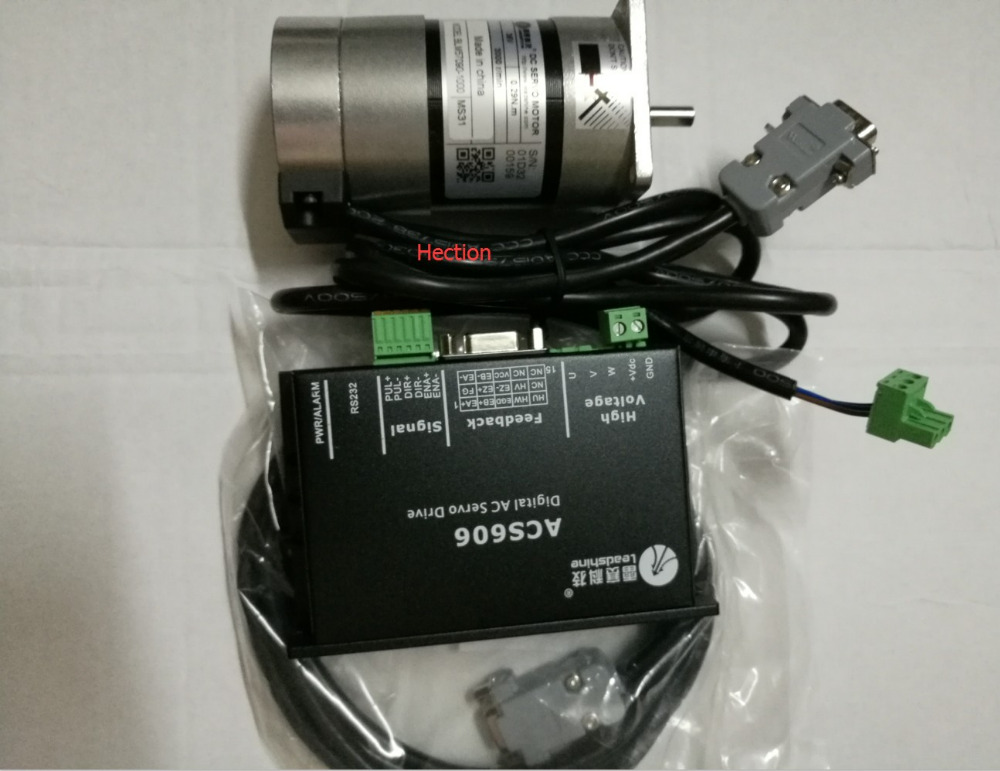

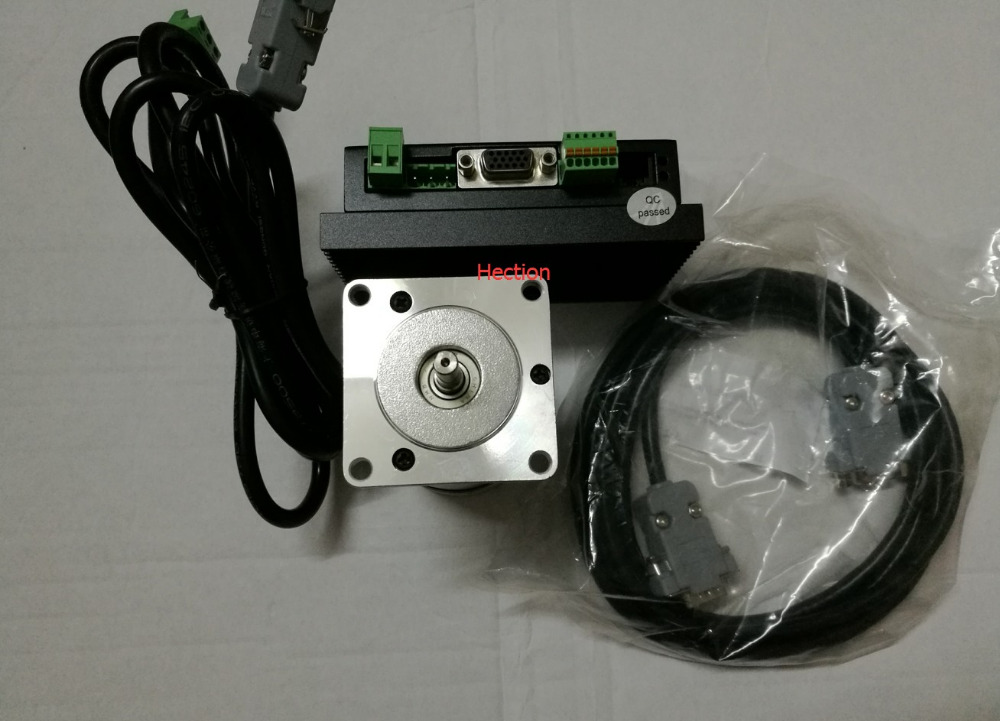

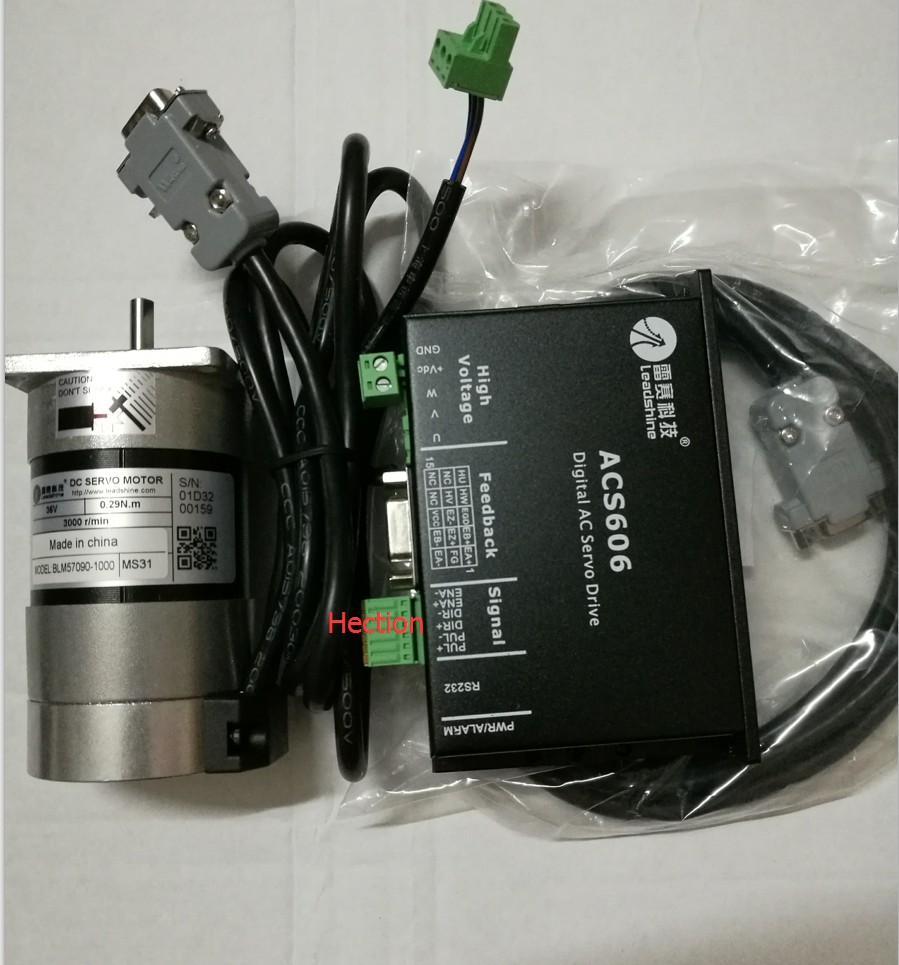

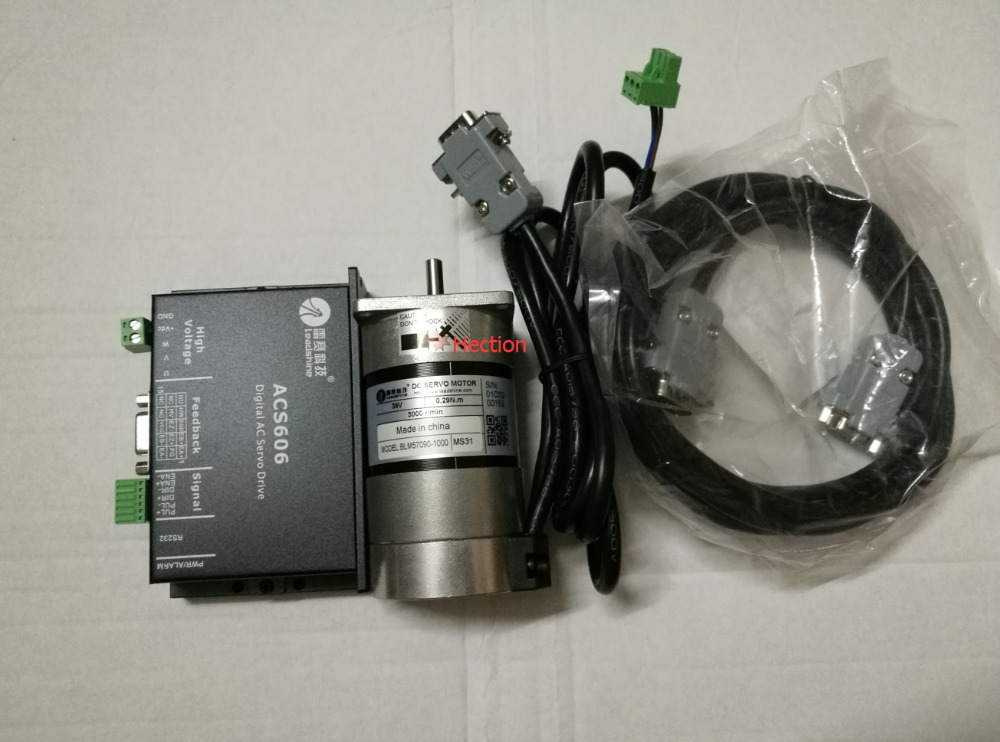

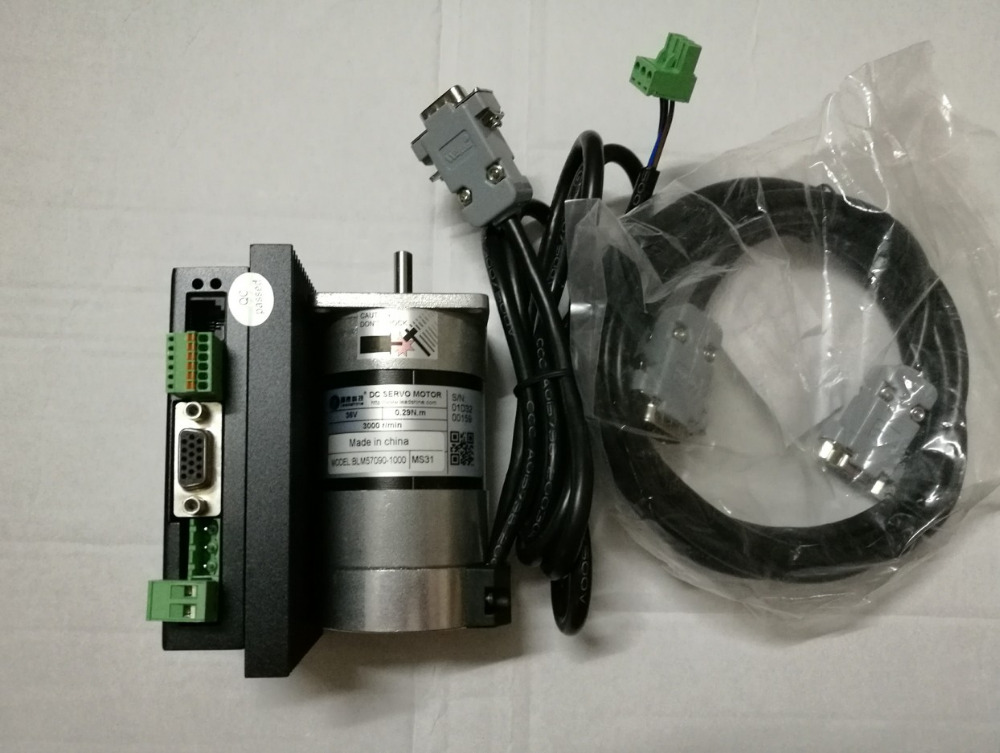

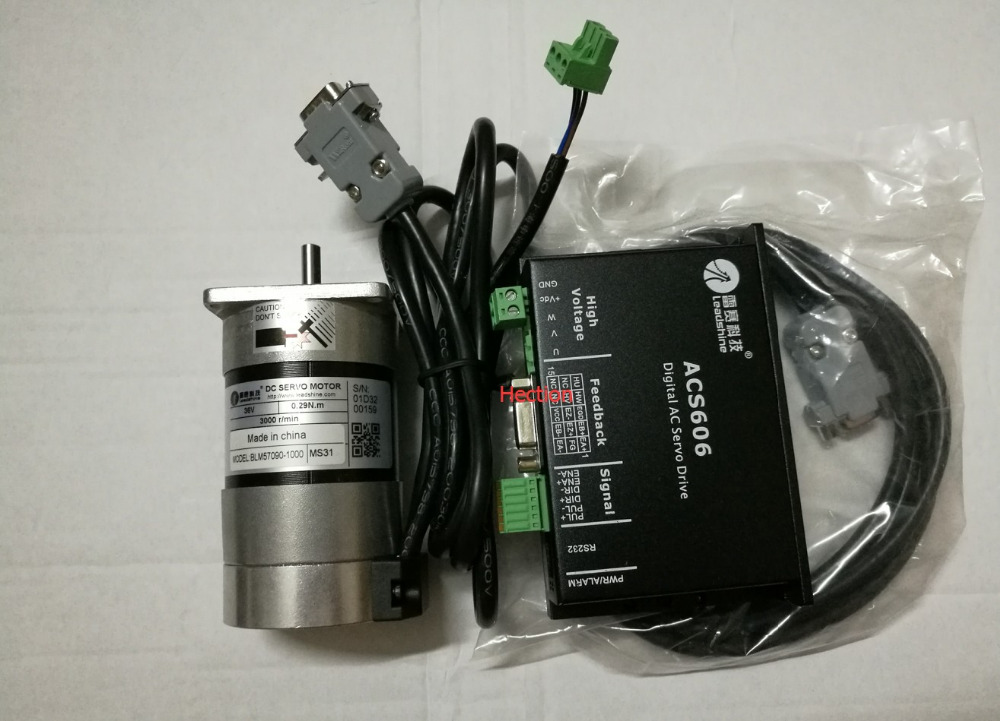

New Leadshine 90W Brushless servo drive ACS606 and Brushless motor BLM57090 -1000 Engine a set work 24VDC speed 3000RPM 0.87NM ,small CNC Machine good parts





  our store have many types of motion control products, including CNC products, if you are willing, please tell us what you need, we will find it for you ,Until you are satisfied ,we also have the technical Support ,so if you have any question ,please let us know ,then we can take the value suggest for you , thanks





90WACS606ACS606+BLM57090BLM servo motor 1BLM servo motor aBLM servo motor









Features:



  • Winding connection: Delta connection
  • Hall Sensor: 120 degree
  • Phase: 3
  • Shaft Radial Play: 0.025 mm
  • Shaft Axial Play: 0.025 mm@460g
  • Pole Pairs (-): 2
  • Allowable radial load: 75N@20mm from the flange
  • Allowable axial load: 15N
  • Isolation Level: Class B
  • Isolation Strength: 500VDC for one minute
  • Isolation Resistance: 100M ohms

Introduction :





Leadshine's BLM series motors are highly cost-effective brushless DC servo motors. Rated speed is 3000 rpm for BLM series motors, and 4000 rpm for 57BL series. Standard model includes a standard 1000 line encoder with differential encoder signals (A, B, Index), and Hall Sensors with standard Hall signals (U, V, W).

When driven by Leadshine ACS series servo drives, the BLM and 57BL series motors can meet requirements of many applications requiring speed from as low as 1 rpm to as high as 4000 rpm. They can offer AC-servo-like performance, such as high speed, high precision, low motor noise and low heating performance, while at the cost of normal stepper systems. BLM series motors are flange mounted motors, and mounting are compatible with NEMA23 stepper motors. The 57BL series are screw mounted motors.





Specifications :













No.

Parameters

BLM57025

BLM57050

BLM57090

BLM57130

BLM57180

57BL180

1

Rated Voltage (VDC)

24

24

36

36

36

36

2

Rated Power (W)

25

50

90

130

180

180

3

Rated Torque (N.M)

0.08

0.16

0.29

0.41

0.57

0.43

4

Peak Torque (N.M)

0.24

0.48

0.87

1.23

1.71

1.27

5

Rated Speed (RPM)

3000

3000

3000

3000

3000

4000

6

Rated Current (A)

1.6

3

3.45

5.3

6.7

7

7

Peak Current (A)

4.8

9

10.35

15.9

20

20.5

8

Torque Const. (N.M/A)

0.05

0.053

0.084

0.078

0.085

0.063

9

Back EMF Const. (V/KRPM)

5.2

5.55

8.8

8.2

8.9

6.6

10

Resistance (ohms)

1.73

0.88

1.35

0.63

0.9

0.35

11

Inductance (mH)

3.36

2.2

4.1

2.17

2

1

12

Inertia (kg x 10-4 )

30

75

119

173

230

230

13

Motor Length (mm)

45

55

75

95

115

115

14

Mass (Kg)

0.25

0.5

0.75

1

1.25

1.25

Wiring :



NO.

Color

Wire Size

Name

Description

1

Red

UL 1007 26 AWG

Vcc

Power Input of Hall (+5V)

2

Blue

HALL A

Hall Sensor A

3

Green

HALL B

Hall Sensor B

4

White

HALL C

Hall Sensor C

5

Red

GND

Power GND of Hall

6

Blue

UL 1007 20 AWG

PHASE A

Motor Coil, Phase A

7

Green

PHASE B

Motor Coil, Phase B

8

White

PHASE C

Motor Coil, Phase C

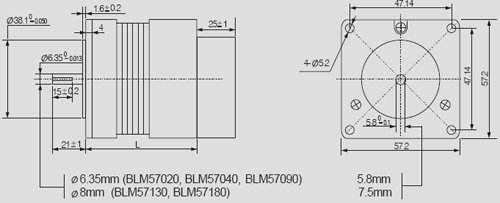

Mechanical :
