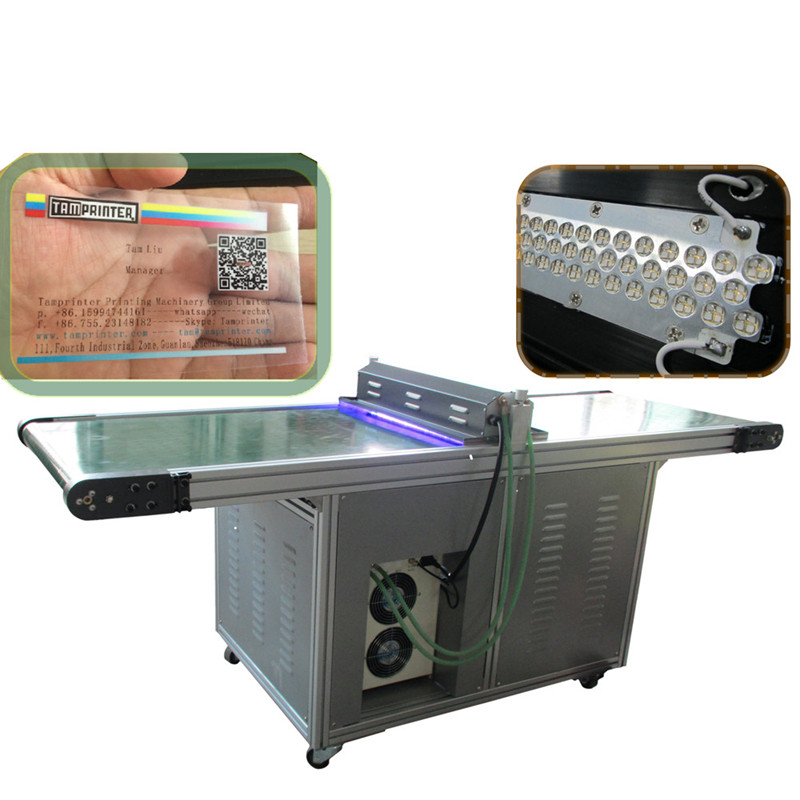

Membrane UV-LED line light curing machine features:

   Features:
1, long life: life is more than 10 times that of traditional mercury type curing machine, about 25,000 to 30,000 hours.
    2, cold light, no heat radiation, according to the product surface temperature is low, resolved optical communications, LCD production and long-standing problem of heat damage. Especially for liquid crystal Edge, film printing and other requirements applicable to small temperature rise of the occasion.
    3, heat a small, solve the mercury inkjet equipment heat, staff unbearable problem.
    4, instant light, no warm-up instantly reach 100% power UV output.
    5, from the opening and closing times on life.
    6, high energy, light output stable, good illumination uniformity effect, improve production efficiency.
    7, the effective radiation area can be customized in length from 20mm to 1000mm.
    8, the maximum illumination intensity of up to 6000mw / cm2.
    9, do not contain mercury, it does not produce ozone, it is to replace traditional light source technology a safer, more environmentally friendly choice.
    10, low energy consumption, power consumption is only 10% of the traditional mercury lamp type curing machine can save 90% power.

     11, small size, easy to carry, and only 1/8 the size of conventional mercury lamps.

     12, the maintenance cost is almost zero, using UV-LED curing equipment annual savings of at least 10,000 yuan / station supplies costs

Applications:

Can be used PVC pet film or membrane UV curing, and scientific experiments.
for UV ink,

the machine features:

the beautiful appearance, light weight, space-saving, reliable and suitable for a wide range of quality, safe and easy to operate.

the machine can move work, strong randomness and flexibility, the disadvantage is low efficiency.

Imported light reflector, the maximum UV light refraction to enhance drying curing effect.

Advanced cooling system to ensure that the workpiece is not affected by temperature, extended lamp life.

Technical parameters:

1,size 2m*0.8m*1m
2, the lamp irradiation width: 600mm;
3. Cooling: water-cooled system;
4, the light measurement range of values: 1000-9500mJ / cm2
5, power supply: single-phase 220V 50HZ;
6, Weight:           200KG;
