General Description

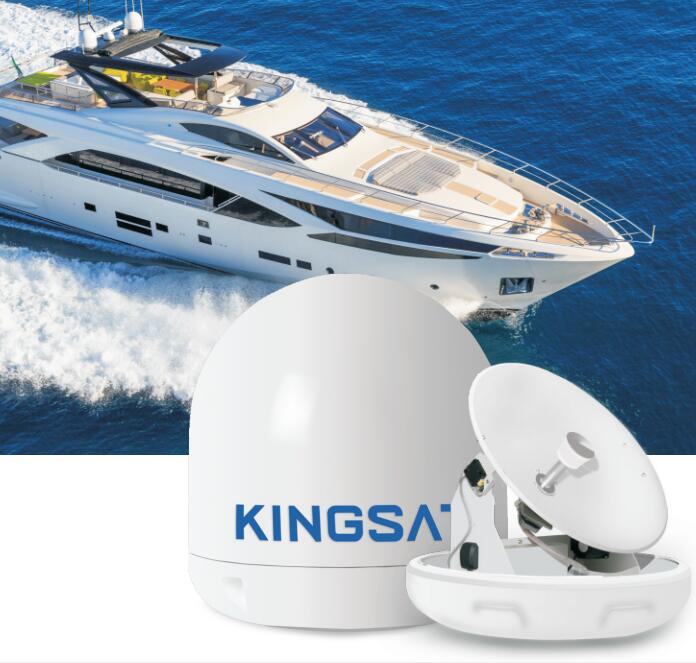

the dependable EMA-V450/V450L auto tracking marine satellite TV systems

Enable high quality satellite TV watching onboard in all conditions.

Features

Worldwide satellites database; quick lock signal with built-in GPS

Automatic identifier with a superior satellite tracking performance

High-performance antenna supported by a high precision gyro with 3-Axis movement.

Offsets shocks and waves at high speed traveling for any marine vessel

Easy installation and operation

Weather proofed

Application Supports

Dish Diameter :

45cm/17.7 inch

Dimension :

600mm(H) x 520mm(D)

Weight :

12kg/26lbs

Minimum EIRP:

48dBW

Reception frequency :

Ku-band(10.7~12.75GHz)

Local Frequency:

10750,11300,9750/10600MHz(Option)

Power Requirement :

AC 100V-240V/1.5A

Operating Voltage :

DC 24V

Environment Humidity

0~95%

Static Power Consumption:

12W

Elevation Range:

0~90

Temperature:

-30~70

Ship's Motion:

Roll25,Pitch15,Yaw8@6 sec period

Azimuth Range :

0~690

Turning Rate :

More than 90/sec

RF Output :

Dual/Quad

Water Ingress :

IP56

ACU Dimensions(WxDxH) :

179 x 140 x 54mm

Polarization:

Linear or Circular
