| Plate Type: | Screen Printer |
|---|---|
| Automatic Grade: | Semi-Automatic |
| Usage: | Tube Printer,Keg Bottle Pipe Barrels Cylinder printer |
| Brand Name: | Tamprinter |
| Condition: | New |
| Plate Type: | Rotary Screen Printing Machine |
| After-sales Service Provided: | Overseas third-party support available |
| Warranty: | two years warranty |
| Certification: | ce |
| Weight: | 550kg |
| Dimensions(L*W*H): | 2200*1800*1680mm |
| Color & Page: | Single Color |
| Model Number: | TM-1500e |
| Max Printing Area: | 1250*300mm |
| Left and Right Stroke: | 1500mm(Electric) |
| Workpiece up and Down Stroke: | 100mm (Pneumatic) Power: 220V 50Hz 200W |
| Atmospheric Pressure: | 5-7bar (110litre/Min) |
| Printing Speed: | 200PCS/Hr |
| Power: | 220V 50Hz 200W |
| Printing Plate Size: | 1200~1250*600mm |
Quick Details
Specifications

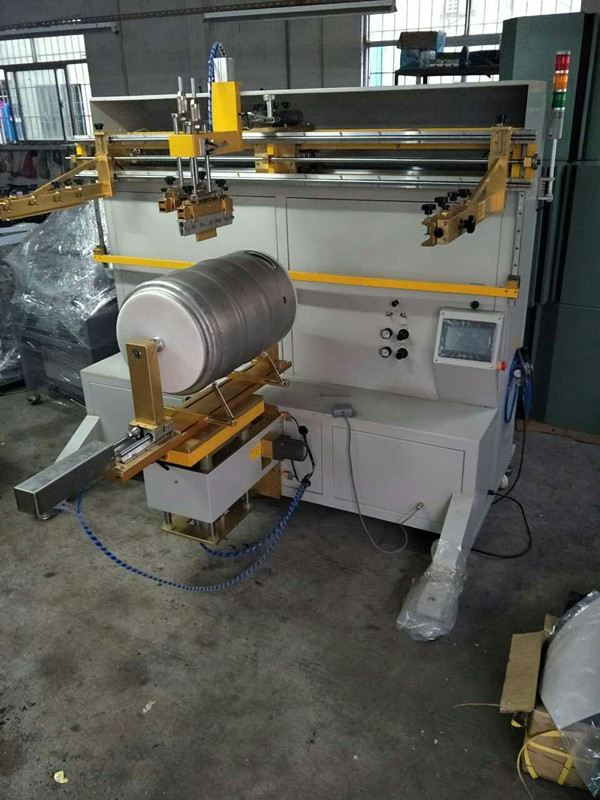

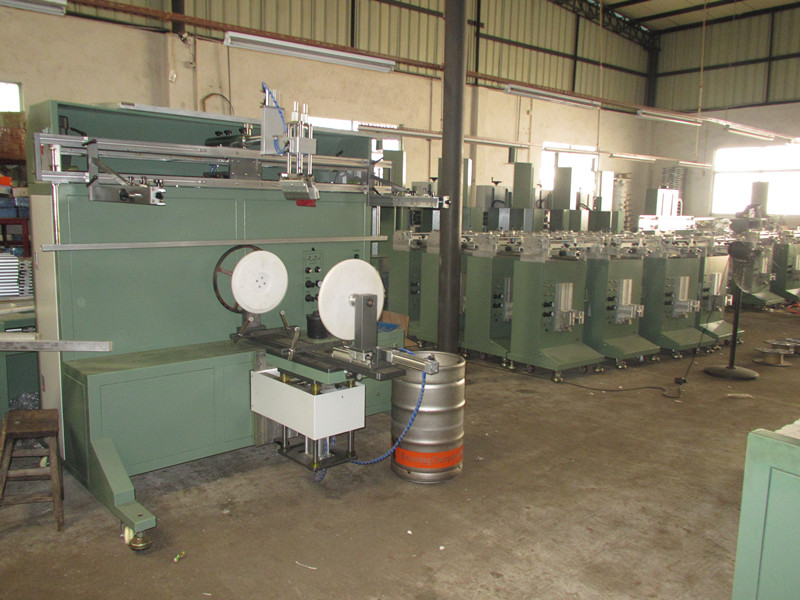

TM-1500E 400mm large keg pipe screen printer
Technical Parameters:
Screen printer plywood: 1.98*2.23*2.08m 200w220v
UV machine 2 plywood:2.73*1.14*1.55m 9.2kw 220v
UV tube L500mm, 3KW
Product Description:
Non-standard large drum screen printer is a customized large screen printing machine based on customer's specific demand and specifications. this machine is suitable for printing logos on mainframe drums, mineral water barrels, chemical barrels, paint barrels etc. Machines use inverter motor control with rail slide printing, in that way the machine is more stable, higher precision, and lower noise.
Characteristics:
1 microcomputer control high degree of automation, simple operation; glance!
2, using the brand pneumatic components, stable and reliable performance;
3, back to the oil scraper dual mode selection; accommodate various printing requirements;
4, the printing stroke and speed are adjustable to meet the 360-degree and multi-color overprint different printing requirements;
5, self-balancing blade, to ensure equalized printing pressure;
6, using imported axis, so that the screen scraper smooth glide sleeve printing;
7, slide speed can be adjusted independently, easier to use, fast;
8, about the use of high-precision linear slide rail slide, with Taiwan Wanxin brand motor,
9, using the stepless speed and with Danfoss frequency converter drive, running precise, stable 10 long life
11, lift up and down using the cylinder type,
12, widening thick heavy base,
13, so set manually fine-tuning, convenient and accurate alignment.
Technical Parameters:
| Starting Mode | Panel /foot switches |
| up and down drive | Pneumatic |
| Left and right drive | Electric |
| Workpiece up and down stroke | 100MM (Pneumatic) |
| Left and right stroke | 1500mm(electric) |
| Max printing area | 1250*300mm |
| Printing plate size | 1200~1250*600mm |
| Max printing diameter | 400mm |
| Max printing length | 1200mm or Customized |
| Printing speed | 200PCS/Hr |
| Power | 220V 50HZ 200W |
| Atmospheric pressure | 5-7BAR (110litre/min) |
| Weight | 550kg |
| Dimension | 2200*1800*1680mm |
Screen printer plywood: 1.98*2.23*2.08m 200w220v
UV machine 2 plywood:2.73*1.14*1.55m 9.2kw 220v
UV tube L500mm, 3KW
Product Description:
Non-standard large drum screen printer is a customized large screen printing machine based on customer's specific demand and specifications. this machine is suitable for printing logos on mainframe drums, mineral water barrels, chemical barrels, paint barrels etc. Machines use inverter motor control with rail slide printing, in that way the machine is more stable, higher precision, and lower noise.
Characteristics:
1 microcomputer control high degree of automation, simple operation; glance!
2, using the brand pneumatic components, stable and reliable performance;
3, back to the oil scraper dual mode selection; accommodate various printing requirements;
4, the printing stroke and speed are adjustable to meet the 360-degree and multi-color overprint different printing requirements;
5, self-balancing blade, to ensure equalized printing pressure;
6, using imported axis, so that the screen scraper smooth glide sleeve printing;
7, slide speed can be adjusted independently, easier to use, fast;
8, about the use of high-precision linear slide rail slide, with Taiwan Wanxin brand motor,
9, using the stepless speed and with Danfoss frequency converter drive, running precise, stable 10 long life
11, lift up and down using the cylinder type,
12, widening thick heavy base,
13, so set manually fine-tuning, convenient and accurate alignment.
