| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Warranty: | two years warranty |
| Brand Name: | Tamprinter |
| Type: | Vacuum Drying Equipment |
| Condition: | New |
| Certification: | ce |
| Weight: | 250kg |
| Dimension(L*W*H): | 1700*700*1200mm |
| Model Number: | TM-UV400 |
| Convey Belt Width(mm): | 380 |
| Effective Range (mm): | 400 |
| Max Thickness of Cured (mm): | 2~20 |
| Power(P/V/Hz): | 3/380/50 |
| UV Lamp (Kw/1PCS): | 3 Kw |
| Total Power (Kw): | 3.4 |
| Driving Power (W): | 60 |
| Size (L*W*H): | 1700*700*1200 |
| Weight (Kg): | 250 |
Quick Details
Specifications

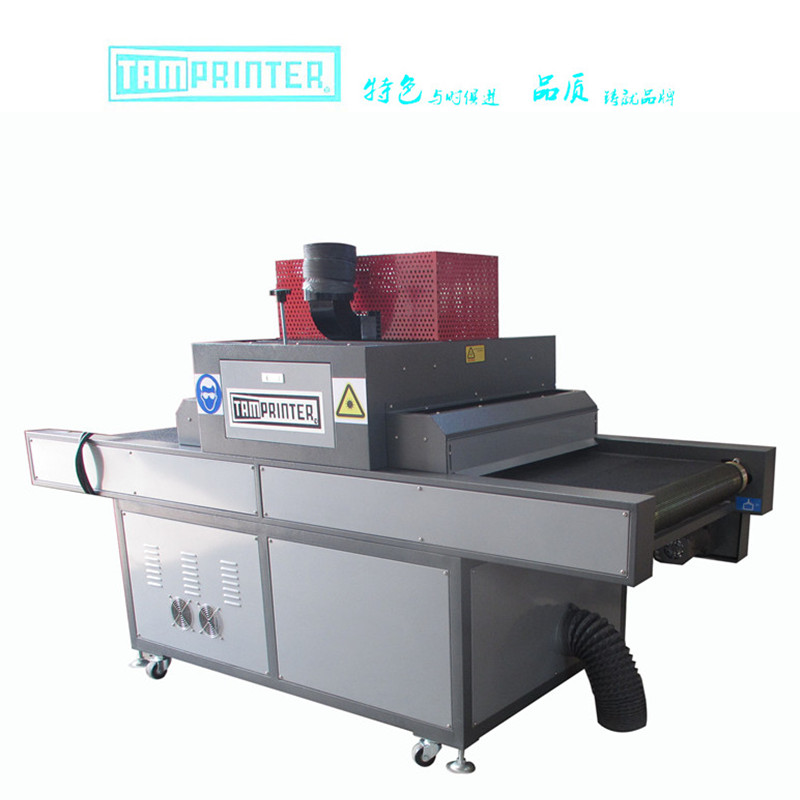

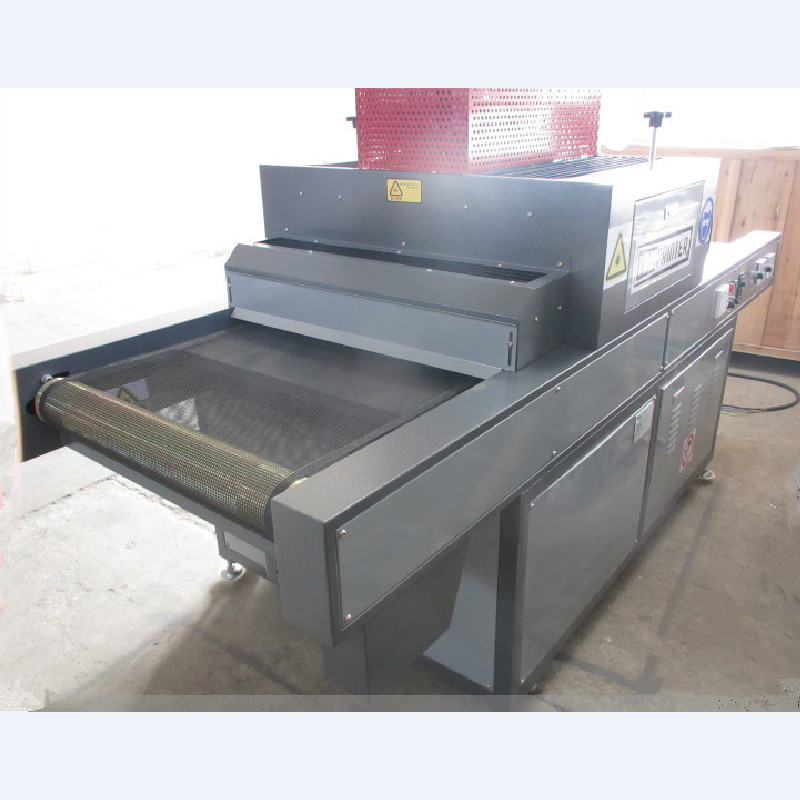

TM-UV400 Flat UV Adhesive Varnish UV Drying Systems UV Machine Suppliers
Technical Parameters:
Application:
Flat UV adhesive Varnish UV Drying
Widely used for the field of drying UV ink, UV coating for UV spray finishing, processing after paper's UV printing, UV glue, UV tests.
Function and feature:
1, Well-designed cooling system reduces the heat generated by the light source, so as to avoid high temperature leaving some products (such as paper, PVC film) affected and deformed.
2, Electronic variable speed, speed is stable, sensitivity is adjustable.
3, High quality light source, long operating life, it can start instantly and access to normal brightness quickly.
4, Good stability and good environmental adaptability. during the use, energy output evenly, and after the prolonged uses, there is no significant change in the spectral distribution.
5, Strong exhaust pump makes the article adsorbed on the conveyor belt, and difficult to drift and fall.
Free Fittings:
UV lamps: 1pcs*3kw
Manual and operating video
Additional Info:
Price Terms -- FOB or CFR
Payment Terms--- T/T or LC
Packing ---- wooden case
Lead Time ---- 7days after confirm Payment
SKU ---- 10 SETS
Standards Certificate --- CE
Cubic Meter---- 1.5 CBM
Gross Weight --- 300KG
Technical Parameters:
| TYPE | TM-UV400 |
| Convey belt width(mm) | 380 |
| Effective range (mm) | 400 |
| Max thickness of cured (mm) | 40 |
| Conveying speed (m) | 2~20 |
| POWER(P/V/Hz) | 3/380/50 |
| UV lamp (KW/1pcs) | 3 kw |
| Driving power (W) | 60 |
| Total power (KW) | 3.4 |
| SIZE (L*W*H) | 1700*700*1200 |
| WEIGHT (Kg) | 250 |
Application:
Flat UV adhesive Varnish UV Drying
Widely used for the field of drying UV ink, UV coating for UV spray finishing, processing after paper's UV printing, UV glue, UV tests.
Function and feature:
1, Well-designed cooling system reduces the heat generated by the light source, so as to avoid high temperature leaving some products (such as paper, PVC film) affected and deformed.
2, Electronic variable speed, speed is stable, sensitivity is adjustable.
3, High quality light source, long operating life, it can start instantly and access to normal brightness quickly.
4, Good stability and good environmental adaptability. during the use, energy output evenly, and after the prolonged uses, there is no significant change in the spectral distribution.
5, Strong exhaust pump makes the article adsorbed on the conveyor belt, and difficult to drift and fall.
Free Fittings:
UV lamps: 1pcs*3kw
Manual and operating video
Additional Info:
Price Terms -- FOB or CFR
Payment Terms--- T/T or LC
Packing ---- wooden case
Lead Time ---- 7days after confirm Payment
SKU ---- 10 SETS
Standards Certificate --- CE
Cubic Meter---- 1.5 CBM
Gross Weight --- 300KG
