| Type: | TFT |
|---|---|
| Brand Name: | TSD |
| Interface Type: | RGB 24 bits interface |
| Resolution: | 480*272 |
| application: | Industrial/Medical application |
| Model Number: | TST043WQCH-13C |
| Place of Origin: | China (Mainland) |
| TFT type: | TFT Positive Transmissive |
| Driver IC: | HX8257A |
| Viewing angle: | 12 O'clock |
| Touch panel: | Multi touch |
Quick Details
Specifications

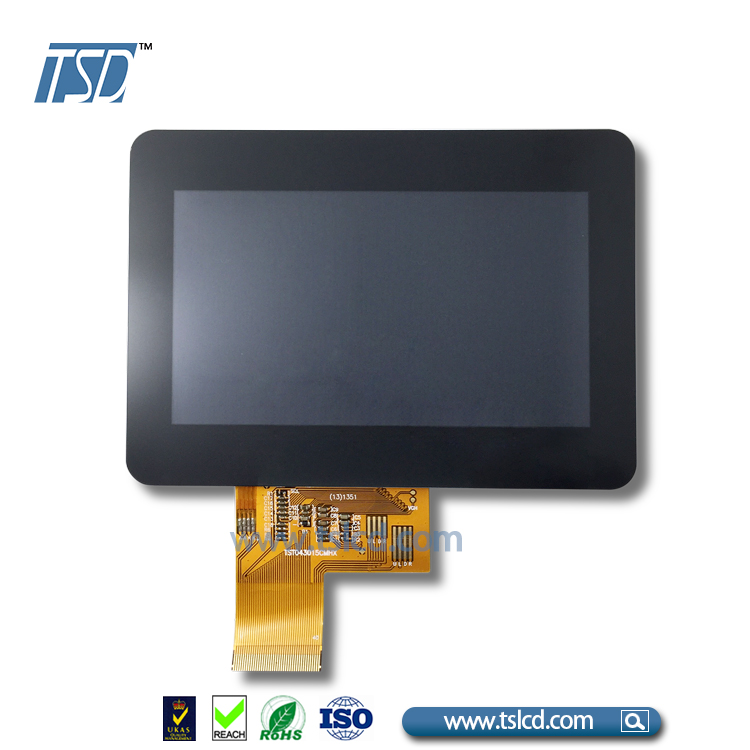

High brightness 4.3 inch TFT LCD display 480*272 with PCAP
Item |
Specification | |
Part No. |
TST430MINI-05D | |
Outline Dimension(mm) |
105.5x67.2x4.2(Typ.) | |
Display Area(mm) |
95.04(H)x53.856(V) | |
Driver IC |
0TA5180A | |
Resolution(dots) |
WQVGA, 480*RGB*272 | |
Description |
4.3" LCD modue with touch | |
Operating temperature(C) |
-20-70 | |
Storage temperature(C) |
-30-80 | |
Number of Pixel(pixels) |
480RGB(H)*272(V) | |
Pixel Pitch |
0.198(H)*0.198(V) | |
Pixel arrangement |
RGB Vertical stripe | |
Display mode |
Normal white,262k colors, 4.3 inch TFT LCD | |
Surface treatment |
Antiglare, Hard-Coating(3H) | |
Module brightness(CD/m2) |
350(Typ.) | |
Backlight |
LED Side-light type, | |
White LED(20MA/chip, recomendation) | ||
Power Consumption(w) |
Logic system |
0.09Max. |
B/L system |
0.924Max. | |
TFT LCD Module series:
1. Our standard TFT LCD module size:
1.44", 1.77", 2", 2.2", 2.4",2.8'', 3.2", 3.5", 4"(3.97"), 4.3", 5", 5.6", 5.7", 7", 8", 10.1"
2. Developed 4.3", 5.0", and 7" TFT module with SSD1963 controller.
3. Developed 2.4'',2.8'',3.2'' 3.5'' small TFT LCD with ZIF FPC connection.
4. Standard CTP for 3.2'', 3.5'',4.3",5." 7''.,Can make customized CTP.
5. High(96%) transmittance RTP for 4.3" and 7". Common RTP only with 78%-80% transmittance.
6. Developed New items 4.3''IPS, 7'' IPS Panel.
7. 3.5" transfletive TFT Panel, sunlight readable.8. All common TFTs will Ofilm can be super wide view angle, Close to IPS panel & same as MVA glass.
9. High brightness TFTs with Anti-reflective film with good performance under sunlight (outdoor).
9. High brightness TFTs with Anti-reflective film with good performance under sunlight (outdoor).
10. We are a medium-sized enterprise in a rapid and stable development, We understand to make products with satisfied quality and reasonable price is the key to win more customers.
