| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | New |
| Brand Name: | Mingling |
| Weight: | 133KG |
| color: | White |
| Model Number: | MLK-H1510 |
| Place of Origin: | China (Mainland) |
| Application place: | factory |
| Application material: | leather,Rubber,Knitted Fabric |
| Delivery package: | Standard Sea Worthy Cartoon Packing |
| Sewing area: | 150*100mm |
| Hook type: | ratary hook |
Quick Details
Specifications

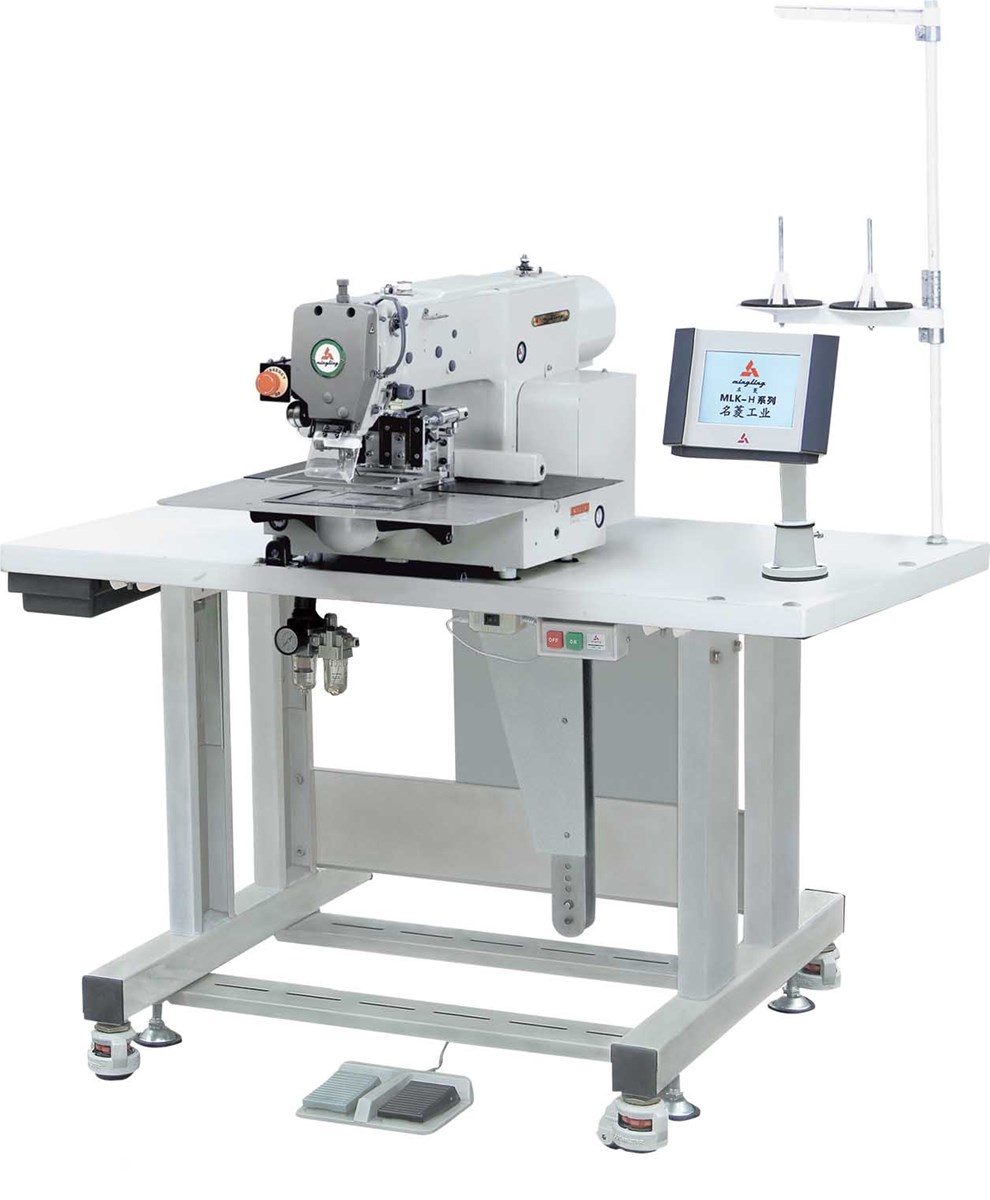

Electronic Computerized Intelligent Industrial Handbags Leather Sewing Machine Mlk-H1510R
Sewing speed wil be affected by the operation,material and fixture weight factors due to different.
| Item | MLK-H1510R |
| Stitching type | Single needle lockstitch |
| Hook type | Shuttle hook |
| Sewing area | 150*100mm |
| Maximum sewing speed | 2800 stitches/pattern |
| Feed method | Intermittent/Continuous(switch over mehod) |
| Stitching pitch | 0.1mm-12.7mm(resolution 0.1mm) |
| Maximum no.of stitches | 20000 stitches/pattern |
| Maximum no.of stored patterns | 999 patterns(control panel internal memory) |
| Enlargement/reduction function | 10 to 200% for both X and Y axis(variable in 0.1% steps) |
| Memory mdium | SD/USB flash memory(not included with sewing machine)(USB-connected FDD can also be connected) |
| Total weight | 133kg |
| Clamp holder method | 38mm |
| Work holder method | Pneumatic |
| Chuck device | Special specification |
| Presser foot lift stroks | 3-15mm two level adjustment |
| Presser foot stroks | 3-15mm |
| Spindle motor | MINGLING electric 750w direct servo motor |
| Applicable needle | Dpx17#18(standard) |
| Operation panel | 5.7'' LCD touch panel,white LED backlight |
| Outline dimension | 1200*867*1230mm(excluded thread stand) |
| Power supply | 220-240V,single-phase 110-120V, 380-415(option unit required) |
