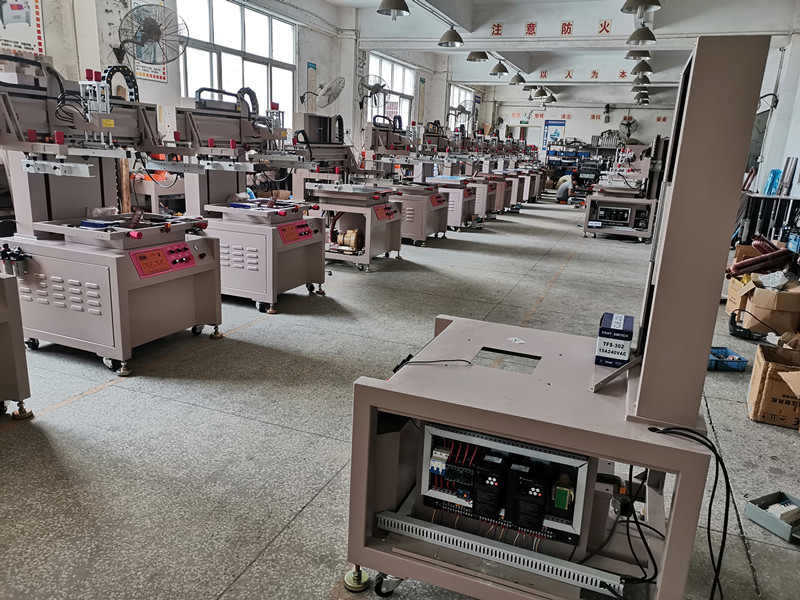

TM-D6090  Precision vertical plane screen printer

Technical  parameter:

Common keys screen printing machine

Features:

1. the vertical structure, the screen rises and falls uses air operated perpendicular, about pad head slides the precise straight line guide rail and uses the frequency conversion motor-driven.

2. Uses the monolithic integrated circuit integration microcomputer control, the simplicity of operator facilitates.

3. the printing shaving knife reciprocating action uses the pneumatic control, the pressure size adjustable, about the traveling schedule uses the photoelectric control, according to screen size length adjustable.

4. Control panel with manual, semi-automatic, fully automatic three modes, printing and indirect time digital control.

5. the independent nose elevating gear, cleans the screen doctor blade, the oil discharge knife, when the para-position color printing is very convenient, prints the platform to be equipped with the X, Y, Z direction the fine trimming.

6. the net clamps the arm to use the double guide pillar form, the adjustment is convenient, and according to the printer area size, provides to the net installment.
