| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Warranty: | two years warranty |
| Brand Name: | TM-LED800 |
| Type: | Flash Drying Equipment |
| Condition: | New |
| Certification: | ce |
| Model Number: | TM-LED800 |
| Type: | Single Layer |
| Power Supply: | Single-Phase 220V 50Hz |
| Cooling Way: | Forced Water Cooling |
| Size: | 2*0.98*1.1m |
| UV LED Band: | 365 Nm, 395 Nm |
| The Input Voltage: | AC220-240 - V |
| Wire and Pipe Size: | 5 M |
Quick Details
Specifications

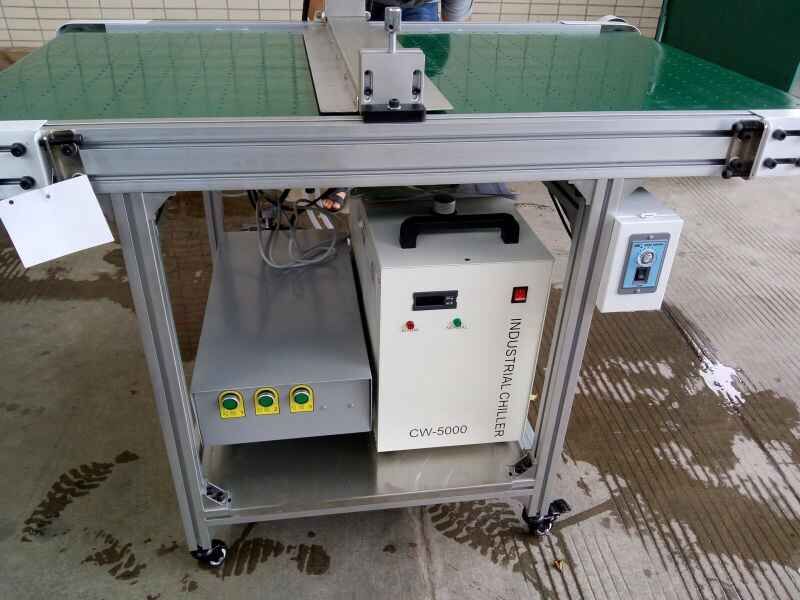

TM-LED800 Manual Membrane LED UV light Source Curing Machine
TM-LED800 Film LED UV Dryer for PVC, UV Ink, Floor
TM-LED800 Film LED UV Drying machine for PVC, UV Ink, Floor
Product specifications:
the input voltage: AC220-240 - v
the cooling way: forced water cooling
Water-cooled machine size: 470 mm * 260 mm * 260 mm wide
PVC belt W800mm
Power:1600w

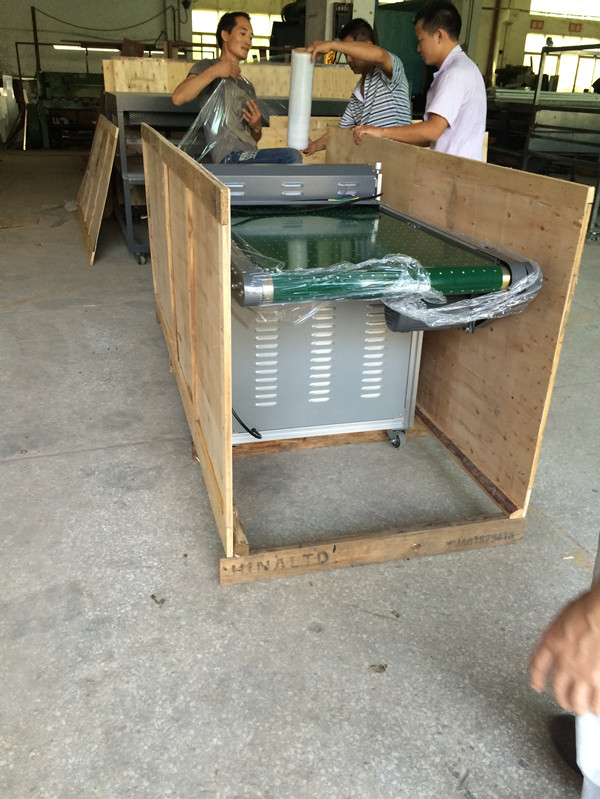

Size: 2*0.98*1.1m Plywood Package about 3.3CBM
Wire and pipe size: 5 m
Import of vertical structure light source: the Taiwan chip, quartz lens encapsulation, 120-200 - w, small size, high power, fast curing
UV LED band: 365 nm, 395 nm
UV LED light intensity:
365 nm (1200 mw/cm2-1600 mw/cm2)
395 nm (2800 mw/cm2-3600 mw/cm2)
Effective radiation area: 75 mm * 25 mm
Warranty: two years warranty
Control mode:
1. A key switch: to control the light output on/off.
2. Adjustable power set: UV energy using the infinite set arbitrary between 0-100%.
3. Intelligent protection: intelligent temperature and water flow cut-off alarm protection, temperature alarm value can be set, and water power.
UV LED light source characteristics:
1. No solvent - the greenhouse effect.
2. Conducive to environmental protection.
3. the work sites and no pollution.
4. Quick production.
5. Room temperature curing.
6. Product has unique properties.
7. to save energy.
8. Easy to wash.
9. Save space.
10. High gloss.
11. Less waste.
12. Method diversity, adaptability, product replacement fast.
Tip: We can manufacture according to customer's requirement. We can do any curing width, pls advise the max curing width you need!
TM-LED800 Film LED UV Dryer for PVC, UV Ink, Floor
TM-LED800 Film LED UV Drying machine for PVC, UV Ink, Floor
Product specifications:
the input voltage: AC220-240 - v
the cooling way: forced water cooling
Water-cooled machine size: 470 mm * 260 mm * 260 mm wide
PVC belt W800mm
Power:1600w
Size: 2*0.98*1.1m Plywood Package about 3.3CBM
Wire and pipe size: 5 m
Import of vertical structure light source: the Taiwan chip, quartz lens encapsulation, 120-200 - w, small size, high power, fast curing
UV LED band: 365 nm, 395 nm
UV LED light intensity:
365 nm (1200 mw/cm2-1600 mw/cm2)
395 nm (2800 mw/cm2-3600 mw/cm2)
Effective radiation area: 75 mm * 25 mm
Warranty: two years warranty
Control mode:
1. A key switch: to control the light output on/off.
2. Adjustable power set: UV energy using the infinite set arbitrary between 0-100%.
3. Intelligent protection: intelligent temperature and water flow cut-off alarm protection, temperature alarm value can be set, and water power.
UV LED light source characteristics:
1. No solvent - the greenhouse effect.
2. Conducive to environmental protection.
3. the work sites and no pollution.
4. Quick production.
5. Room temperature curing.
6. Product has unique properties.
7. to save energy.
8. Easy to wash.
9. Save space.
10. High gloss.
11. Less waste.
12. Method diversity, adaptability, product replacement fast.
Membrane UV-LED line light curing machine features:
1, long life: life is more than 10 times that of traditional mercury type curing machine, about 25,000 to 30,000 hours.
2, cold light, no heat radiation, according to the product surface temperature is low, resolved optical communications, LCD production and long-standing problem of heat damage. Especially for liquid crystal Edge, film printing and other requirements applicable to small temperature rise of the occasion.
3, heat a small, solve the mercury inkjet equipment heat, staff unbearable problem.
4, instant light, no warm-up instantly reach 100% power UV output.
5, from the opening and closing times on life.
6, high energy, light output stable, good illumination uniformity effect, improve production efficiency.
7, the effective radiation area can be customized in length from 20mm to 1000mm.
8, the maximum illumination intensity of up to 6000mw / cm2.
9, do not contain mercury, it does not produce ozone, it is to replace traditional light source technology a safer, more environmentally friendly choice.
10, low energy consumption, power consumption is only 10% of the traditional mercury lamp type curing machine can save 90% power.
11, small size, easy to carry, and only 1/8 the size of conventional mercury lamps.
12, the maintenance cost is almost zero, using UV-LED curing equipment annual savings of at least 10,000 yuan / station supplies costs
Applications:
1, Can be used PVC pet film or membrane UV curing, and scientific experiments.
2, for UV ink,
Tip: We can manufacture according to customer's requirement. We can do any curing width, pls advise the max curing width you need!
