| Plate Type: | Screen Printer |
|---|---|
| Automatic Grade: | Semi-Automatic |
| Usage: | Bill Printer,Card Printer,Cloths Printer,Label Printer,Paper Printer,Tube Printer |
| Brand Name: | Tamprinter |
| Condition: | New |
| Plate Type: | Vertical Screen Printing Machine |
| After-sales Service Provided: | Overseas third-party support available |
| Warranty: | two years warranty |
| Certification: | ce |
| Weight: | 480kg |
| Dimensions(L*W*H): | 1200X1000X1650mm |
| Model Number: | TM-D6090 |
| Size of Printing Table: | 700X1100mm |
| Max Printing Area: | 600X900mm |
| Highest Impressions: | 400-600PCS/H |
| Machine Repeatability: | +0.03mm |
| Air Consumption: | 104litre/Min(6bar) |
| Substrate Thickness: | Less Than 50 |
Quick Details
Specifications

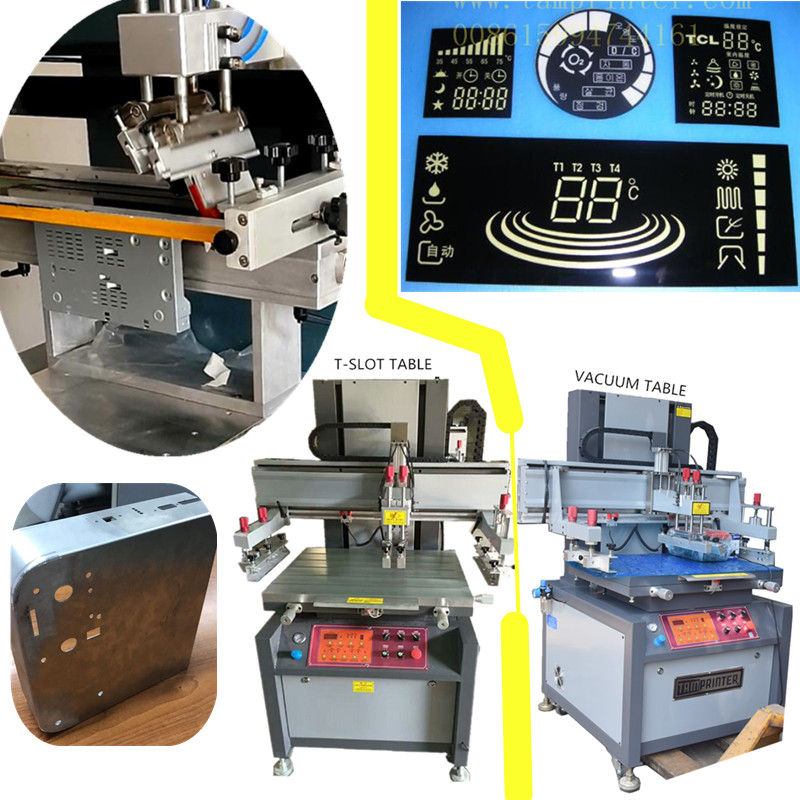

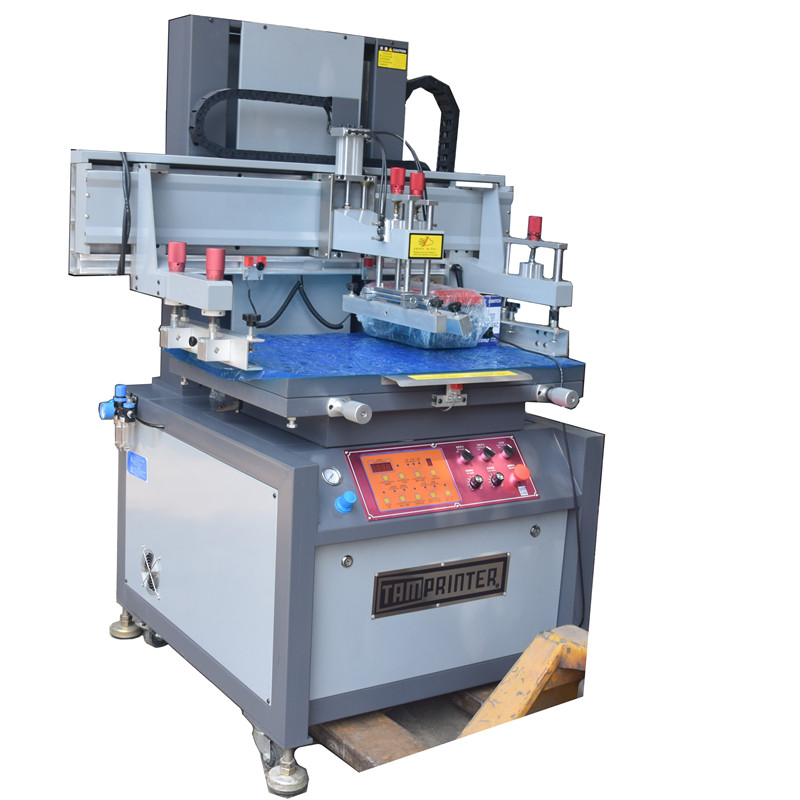

TM-D6090 Precision vertical plane screen printer
TM-D6090 Electric Precision vertical plane screen printing machine for plastic
Technical parameter:
TM-D6090 Electric Precision vertical plane screen printing machine for plastic
Technical parameter:
Common keys screen printing machine
Model No. |
TM-D2030 | TM-4060C |
TM-D4060 |
TM-5070C |
TM-D5070 |
TM-6090C |
TM-D6090 |
Drive type |
X Common motor /Z Cylinder |
X /Z Cylinder |
X Common motor /Z Cylinder |
X /Z Cylinder |
X Common motor /Z Cylinder |
X /Z Cylinder |
X Common motor /Z Cylinder |
Printing area |
100X150mm | 400X600mm |
500X700mm |
600X900mm | |||
Table size |
250X280mm | 500X700mm |
600X900mm |
700X1000mm | |||
Max frame |
250X320mm | 650X720mm |
750X920mm |
800X1200mm | |||
Printing thickness |
0~40mm | 0~40mm |
0~ 50mm |
0~ 50mm | |||
Overlay accuracy |
0.05~0.08mm | 0.05~0.08mm |
0.05~0.08mm |
0.05~0.08mm | |||
Platform precision |
about +/-0.04mm | about +/-0.04mm |
about +/-0.06mm |
about +/-0.075mm | |||
Printing pressure |
4.0-8.0 kgf/cm2 | 4.0-8.0 kgf/cm2 |
4.0-8.0 kgf/cm2 |
4.0-8.0 kgf/cm2 | |||
Air pressure (mpa) |
0.5~0.6(Mpa) | 0.5~0.6(Mpa) |
0.5~0.6(Mpa) |
0.5~0.6(Mpa) | |||
Air consumption |
35L/min | 35L/min |
35L/min |
35L/min | |||
Printing speed |
1000pcs/h | 960pcs/h |
800pcs/h |
600pcs/h | |||
Power |
220V/1.5KW | 380V/1.5KW |
380V/1.5KW |
380v /2.3kw | |||
Dimensions (LXWXH)mm |
850X600X1350mm | 980X820X1580mm |
1330mmX1000mmX1750mm |
1500X1070X1750mm | |||
Weight |
200kg | 280kg |
420kg |
480kg | |||
Applications: signs and panels, screen printing machine (Figure 6) plastic sheets, advertising materials, printed circuits. Some emerging screen printing industry to extraordinary growth rate, such as CD-ROM, security printing.Packaging and Printing, Advertising Printing, Circuit Printing
Features:
1. the vertical structure, the screen rises and falls uses air operated perpendicular, about pad head slides the precise straight line guide rail and uses the frequency conversion motor-driven.
2. Uses the monolithic integrated circuit integration microcomputer control, the simplicity of operator facilitates.

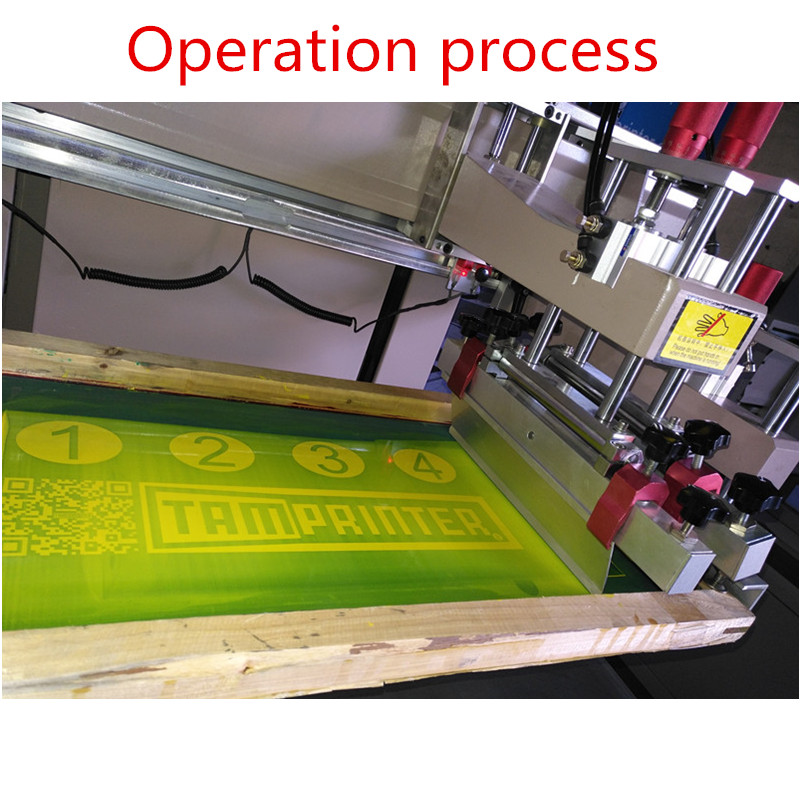

3. the printing shaving knife reciprocating action uses the pneumatic control, the pressure size adjustable, about the traveling schedule uses the photoelectric control, according to screen size length adjustable.

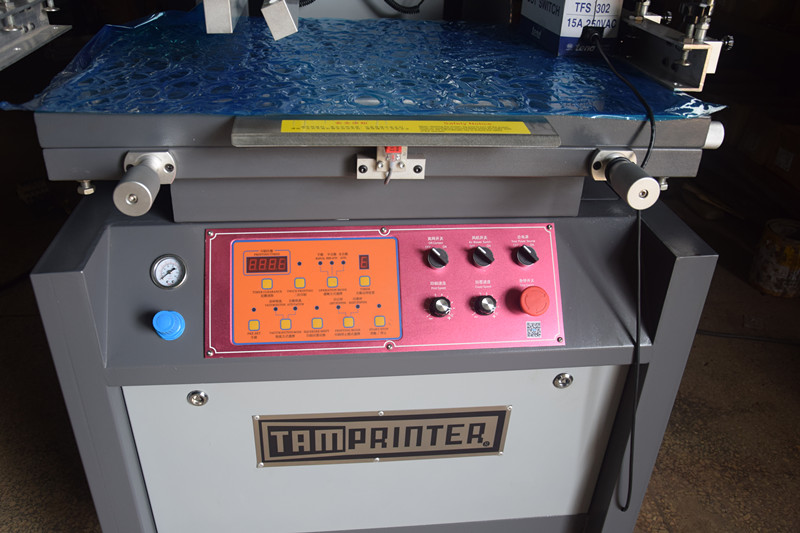

4. Control panel with manual, semi-automatic, fully automatic three modes, printing and indirect time digital control.
5. the independent nose elevating gear, cleans the screen doctor blade, the oil discharge knife, when the para-position color printing is very convenient, prints the platform to be equipped with the X,Y,Z direction the fine trimming.
6. the net clamps the arm to use the double guide pillar form, the adjustment is convenient, and according to the printer area size, provides to the net installment.
