Specifications

Series PCS Portable Coalescence Separation which uses advanced Coalescence and Separation filters, gathers fine filter, high efficiency demulsification and dehydration into a integral whole. this machine, which can remove large of water without heating, creates the fastest dehydration speed in domestic at present.
Can quickly separate water from the oil, which even contains half water, to attain cleanness of NAS Grade 6, Convenient using with the go-cart model designed.
It's very suitable for treating light oils such as diesel oil, fuel oil, gasoline oil, and other industrial oils containing too much water but can not be heated.
Pressure Gauge monitors the working status of machine and pollution levels continuously.

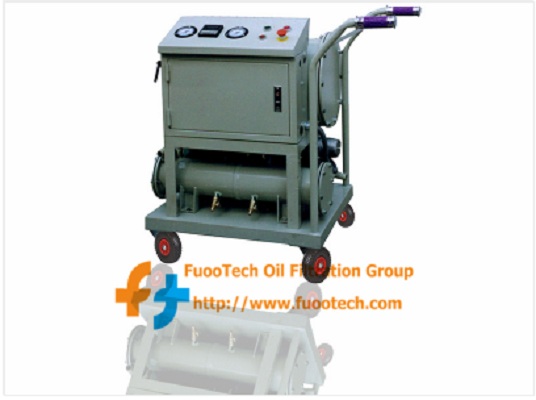

Series PCS Portable Coalescence Separation Oil Purifier
the features of
  1. Use advanced Coalescence and Separation filters to separation large quantity of water content from the oils without heating
  2. as no heating is needed, the additives in the oil are well prevented from degradation or deterioration.
  3. Compact structure, small volume, light weight, easy to carry
  4. High quality and precision oil filter installed, repeated use, save cost, no contamination.
  5. Can be made into explosion-proof type, used at dangerous working area.
  6. Easy-to-operate, water can be discharged online
  7. Low operation cost, 20%-40% lower than vacuum purifier, centrifugal purifier and filter press.
  8. Stable and safe Operation with low noise.
  9. Can effectively purify the tiny and fine mechanical impurity from oil
Technical Specifications of
Parameters
Unit
PCS-10
PCS-20
PCS-30
PCS-50
PCS-80
PCS-100
PCS-200
PCS-300
Flow rate
L/H
600
1200
1800
3000
4800
6000
12000
18000
Working pressure
Mpa
0.3
Working noise
Db(A)
 65-80
Running hours without   malfunction
H
4000
Continuous running   hours
H
150
Water content
after Purification
PPM
100
Cleanliness
after Purification
NAS
1638
6
Power
KW
0.75
0.75
1.1
1.5
2.2
3
5.5
7.5
Dimension
 (L W H)
mm
700
570
550
700
570
600
700
600
650
850
650
750
900
650
800
1000
700
850
1100
750
950
1200
800
1000
Weight
Kg
80
90
105
135
150
185
200
230

Note:
1. the dimension and weight will be changed with changing of technical specs.
2. All the specs can be customized according to client's requirements.
for more info, pls don't hesitate to.
