Product Main

Quick Details

After-sales Service Provided: Overseas service center available
Certification: CE, ISO, WSF
Weight: 1
Brand Name: Fuoo Tech
Condition: New

Specifications

PO Series Portable High Precision which mainly deal with unqualified insulating oil, turbine oil, lubricating oil etc., it consists with motor-driven special gear pump and multi-stage filters for filtering dirty oils by removing various sizes of particles & impurities. Small and flexible size, easy to operate and requires no filter paper and causes no contamination to the ground. It has a wider application than ordinary filter press and has a long lifetime, being a new substitute for frame filter press.
Suction point is equipped with a coarse filter to protect pump, and prolong the service life of main two filters. Filter precision can be adjusted and changed according to client's actual need. this machine can do precision filtering, it usually equips three-stage filters, also can equip four or five stage filters as per user's requirements. Light weight, easy operation, it can be used as oiling machine for long distance and high-lift oiling works.
Pressure Gauge monitors the working status of machine and pollution levels continuously.
Is also used for oil transferring/ filling at working fields, suitable for field portable assignments and aerial work, while oil filling, filtration is also done at same time.

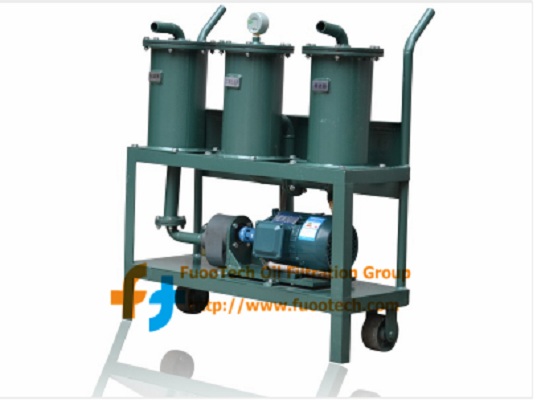

Series PO Portable High Precision Oil Purification Filling System
the features of
  1. Compact structure, small volume, light weight, easy to carry
  2. Internal use high quality stainless steel maiterials filter element to filter particles, repeated use, save cost, not contaminated sites
  3. Filtration precision, the product specifications can be free to choose according to need
  4. Can be made into explosion-proof type, used at dangerous working area.
  5. Use patented technology to produce. Such as high-effective separating separation tower, fuzzy control technology, dewatering and degassing very effectively.
  6. It can purify the losing-efficient insulation oil and make the oil reach the new oil standard without power cut, changing the oil or using filtering papers.
  7. Have the function of filling oil.
  8. the purifier has large route, strong capability of holding dirt and can be used for a long time.
  9. the ultrasonic cleaning function can be selected.
  10. Stable and safe Operation with low noise.
  11. Can effectively purify the tiny and fine mechanical impurity from oil, enabling it to be a prior choice of power industry, petroleum, chemical, metallurgy, mechanics and railway for oil filling, oil drawing and high precision impurity removal of mutual inductor, lathe, and oil breaker which do not use large quantity of oil.
Technical Specifications
Item
Unit
PO-32
PO-50
PO-100
PO-150
PO-200
PO-300
PO-500
PO-600
Flow rate
L/H
1920
3000
6000
9000
12000
18000
30000
36000
Lift
m
5
8
8
10
15
15
18
20
Cleanness
NAS
7
6
6
6
6
5
5
5
Power supply
380 VAC, 50 Hz, 3   Phase (or as per required)
Working noise
DB (A)
65 ~ 75
Motor Power
KW
0.75
1.1
1.5
2.5
3
6
9
13
Inlet (outlet)   caliber
mm
25
25
25
32
42
50
50
60
Weight
Kg
95
105
120
130
140
160
300
370
Note:     1. the dimension and weight will be changed with changing of technical specs.
                2. All the specs can be customized according to client's requirements.

    for more info, pls don't hesitate to .
