| Type: | TFT |
|---|---|
| Brand Name: | Frida |
| Interface Type: | RGB 24Bit |
| Resolution: | 1024*RGB*600 |
| application: | Multimedia device, PC |
| Model Number: | FRD101P40023-A |
| Place of Origin: | China (Mainland) |
| Screen Size: | 10.1inch |
| Display Mode: | Normally White |
| Color Number: | 262K |
| Color Arrangement: | TFT Active matrix |
| Back Light: | White LED3*9 |
| Viewing Direction: | 6:00 |
| Touch panel: | With CTP |
| Driver IC: | :EK79001AI/EK73215BCGA |
| Surface Treatment: | UV Cut |
Quick Details
Specifications
10.1 inch RGB TFT LCD Module /Screen/display
Product Description
10.1inch TFT LCD module display RGB-stripe screen with RGB 24Bit Interface
FRD101P50006-BIs a transmissive type a-Si TFT-LCD (amorphous silicon thin film transistor liquid crystal display) module, which is composed of a TFT-LCD panel, a driver circuit a backlight unit, the panel size is 10.1 inch and the resolution is 1024600. High image quality a-Si TFT LCD module. Partial-screen display function is available. Sleep and Stand-by modes are available for power saving.
10.1inch TFT LCD module display RGB-stripe screen with RGB 24Bit Interface
Features /Specification
Item |
Specification |
Display Mode |
Normally White |
Screen Size |
10.1inch (diagonal) |
Resolution |
1024RGB600 |
Color Number |
262K |
Color Arrangement |
RGB stripe |
Driver IC |
EK79001AI/EK73215BCGA |
Back Light |
White LED3*9 |
Viewing Direction |
6 o'clock |
Interface |
RGB 24Bit |
Surface Treatment |
UV Cut |
Outline dimensions |
235.0(W) 143.0(H) 5.0(D) (LCM, not include FPC) mm |
Active area |
222.72(W) 125.28(H) mm |
Resolution |
1024(H)RGB 600(V) dots |
Dot size |
0.0642(H) x 0.1790(V) mm |
Application
PC; portable multimedia device, etc.
Our Advantage
1. Competitive price, best service
2. Quality Assurance: large modern factory Building +professional technical team +International Quality Inspection Certificate

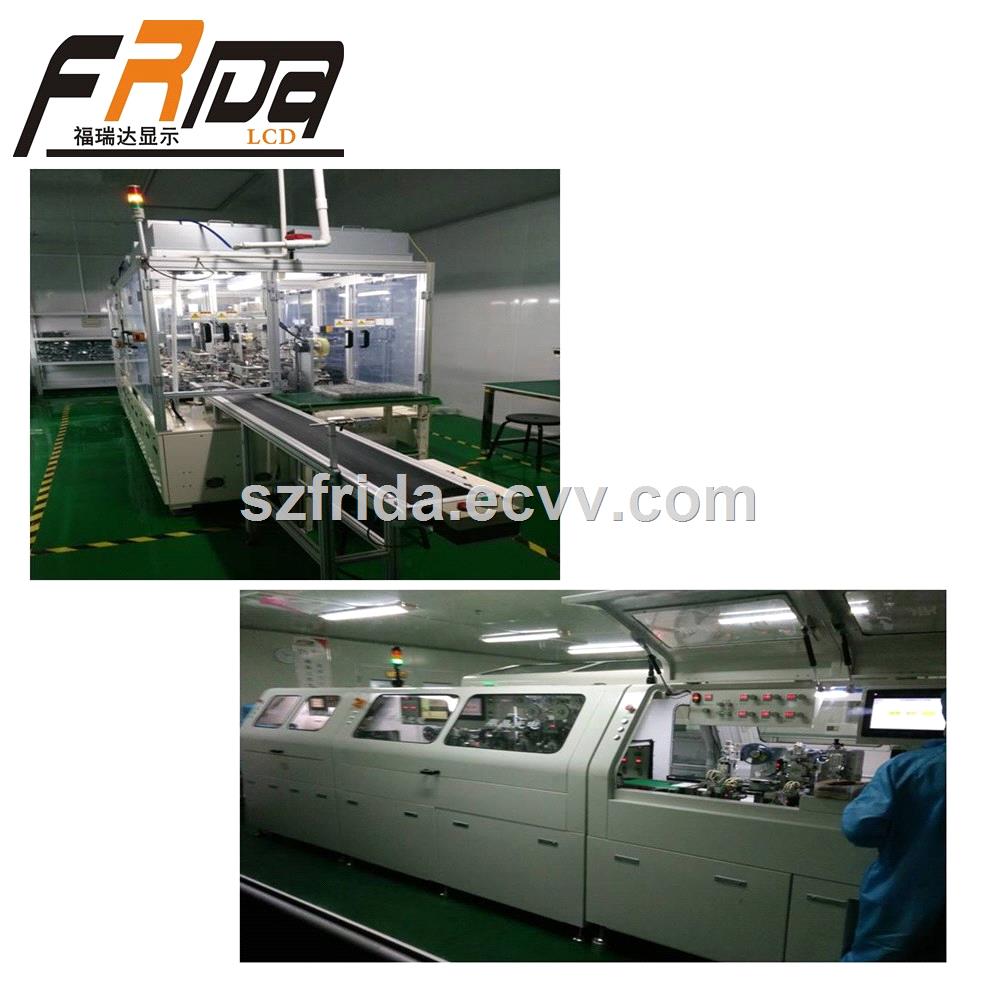

Our Factory
