the following example is for you reference.

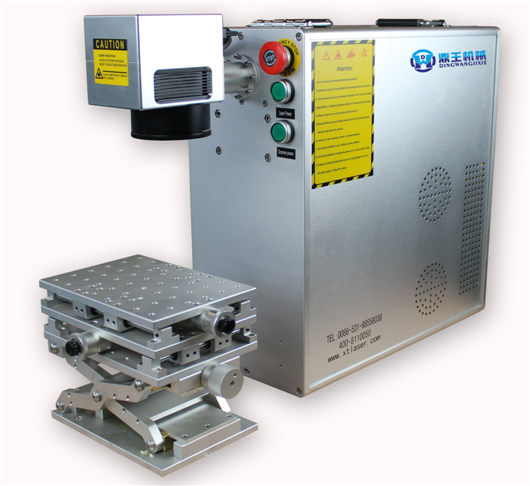

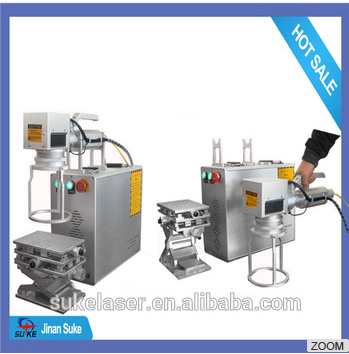

1.Brief Introduction:

the fiber laser marking machine can mark on most of metals and some non-metals and is mainly used on clocks and molding, electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication,food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft, Jewellery industry, electronic components, metal products, tools, accessories, and integrated circuits (IC), electrical appliances, mobile communications, precision instruments, glasses, clocks and watches, jewellery accessories, auto parts, plastic buttons, building materials, PVC pipe, medical equipment industries, etc.

2.Techincal parameters:


Type specification	SK-FP10	SK-FP20	SK-FP30	SK-FP50
Wave length of laser	1064nm
Laser repetition frequency	20kHz~100kHz
Laser power	10W	20W	30W	50W
Marking scope	70*70 /100*100 /200*200mm/300*300mm
Laser sources	Fiber module
Laser Head	Scanning head
the minimum focus facula diameter	20m
Minimal character	0.01mm
Marking speed	7000mm/s
Repeated accuracy	0.0025mm
Cooling ways	Force-air Cooling
Power supply	220V/ 50Hz/2kVA
Gross weight	65KG	65KG	65KG	65KS
Volume	1m3	1m3	1m3	1m3
Process Material	All kinds of metal and part of Non-metal Materials
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Standard Crate for export
the whole machine include	LCD display, controller box ,laser systems,
Configuration	Coaxial red light position system up & down worktable
Accessory box	Microsoft dog, quality certificate etc

3.Performance features:

• It use advance fiber pumping technology,producing higher quality beam,higher photoelectric conversion, the marking quality will be more finer and higher precision.
• Small Size wtih Air cooling,no water chiller.
•  No maintenances laser source(100,000 hours service time), Easy to adjust focus,
•  low operation cost (LOw power consumption)
•  Maintenance free without routine replacement of  consumables
•  Easy to use by unskilled operator

Configuration:

Name	Remarks
Optical laser	Long service life, high reliability, fine beam quality
Galvo mirror(Laser head)	Fine marking, more quick and high reliability
F- lens	High quality optical device(you can choose 110*110mm 200*200mm 300*300mm)
Marking software	Powerful, simple and convenient operation, Auto-cad, Coreldraw, Photoshop software compatible format
Control computer	Industrial Computer
Control cabinet	Optical fiber special cabinet, all the mold production, high seal
