| Swing over bed: | 440mm |
| Max turning diameter: | 300mm |
| Max turning length: | 450mm |
Quick Details
Specifications
Product Description:
Automatic bearing outer ring inner race production line:

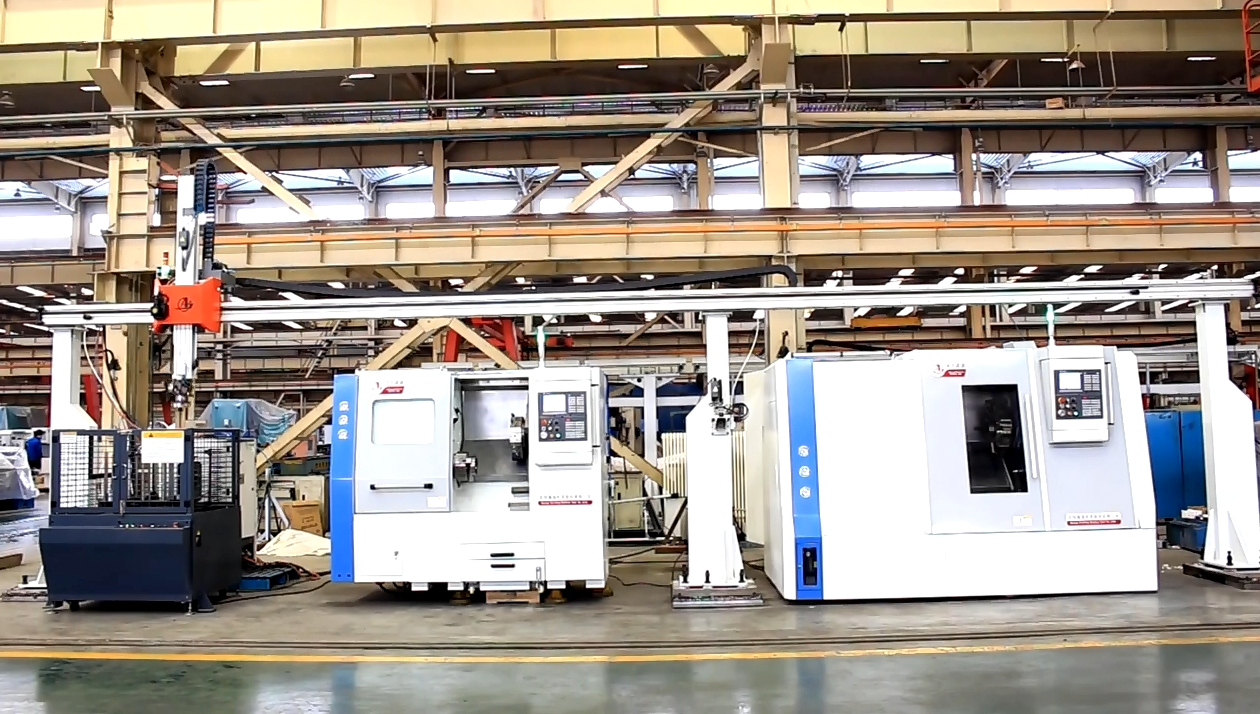

XSPT-002 bearing ring automatic line with three ADJ15P CNC lathes and a set of SMT20 Manipulator automatic loading and unloading device.
the automatic line to grab the workpiece weight 7Kg.
Outer diameter: 100mm-200mm
the width of disk type parts: 14mm-70mm.
Designed according to user-specific requirements.
Technology:
Workpiece |
Bearing out ring(No. CG-GAC110S/K.01-LG1) |
Annual yield estimation |
12 months26 days20 hours3600 seconds0.85 Utilization rate/85 seconds(Automatic line cycle time)= 224640 pieces. |
Specification:
ITEM |
UNIT |
AD15 |
AD25X | |
CAPACITY |
Swing over bed |
mm |
440 |
520 |
Max turning diameter |
mm |
300 |
420 | |
Maximum cutting diameter of gap |
mm |
255 |
360 | |
Max turning length |
mm |
450 |
530 | |
TRAVEL |
X-travel |
mm |
180 |
230 |
Z-travel |
mm |
480 |
590 | |
Spindle speed |
rpm |
50-4500 |
35-3500 | |
SPINDLE |
Spindle nose |
A2-6 |
A2-8 | |
Chuck size |
Inch |
8 |
10 | |
Spindle hole |
mm |
62 |
87 | |
Turret working position |
8 |
12 | ||
TURRET |
Indexing time |
s |
0.58 |
1 |
Section of tool shank |
mm |
2525 |
2525 | |
Diameter of bore shank |
mm |
40 |
40 | |
Six-station Rotary tray silos:
the feeding and unloading of the automatic line is completed by the 6 Station pallet type rotary silos, and the silo is controlled by the sensor induction signal to control the lifting of the feeding position and the stroke of each action.
Silo specifications: 6 stations.
Delivery parts diameter range: 30 ~ 230;
Each station stack height: 400mm.
Each tray carrying weight: 35kg.
6-station tray-type rotating silo Action Description: Manually fill the blank filled with five stations, robots grab the blank from the feeding position, the sensor signals a bunker tray up a position (distance from the parts thickness). after the parts are processed, the robot puts the blank in the lower feeding position, the sensor sends a signal, and the lower feeding tray cn (the distance is the thickness of the part
