| Type: | Laminating Machine |
|---|---|
| Automatic Grade: | Automatic |
| Packaging Material: | Plastic, |
| Packaging Type: | |
| Application: | |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Weight: | 8000kg |
| Dimension(L*W*H): | 13000*2400*2400 |
| Model Number: | YB-1450H |
| Brand Name: | Youbond |
| Place of Origin: | China (Mainland) |
| Power: | 22KW/380V |
| Voltage: | 380V/50HZ |
| Driven Type: | Electric |
| Accuracy: | 1.5mm |
| Max speed: | 12000sheets/h |
| Range of Top paper: | Cardboard,kraft paper,grayboard |
| Range of bottom paper: | Cardboard, corrugated,grayboard |
Quick Details
Specifications

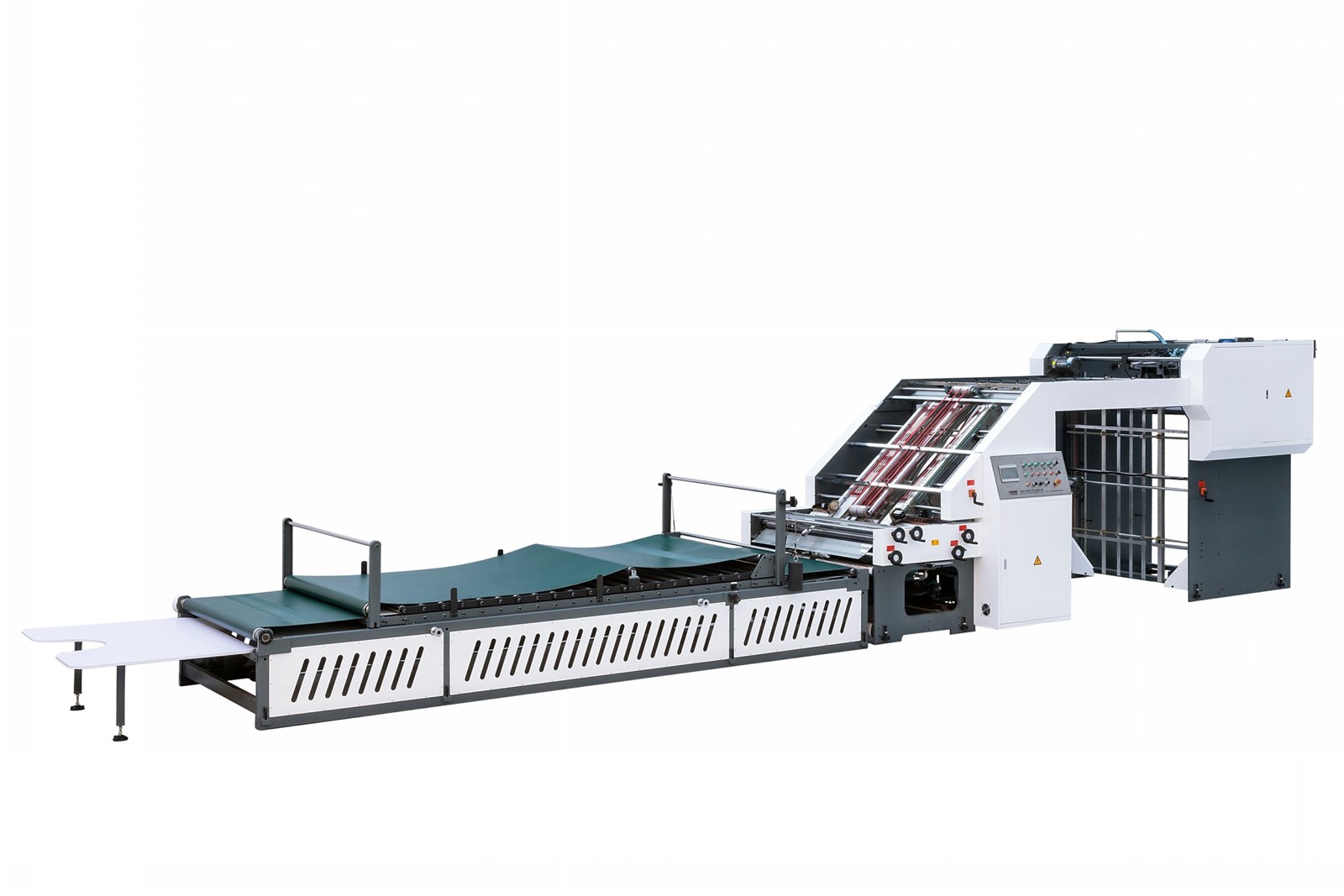

YB-1450/1650H High Speed Servo type laminating machine
Brief Introduction
this machine combines the motion control system and servo correction device, there are multiple sets of photoelectric sensor inducing the position of the bottom sheets, and servo motors on both sides of the top sheet make independent compensation action, so the top sheet and the bottom sheet can be positioned accurately. Servo laminating machine is easy to operate, it can achieve adjustment automaticly once the paper size is typed in.
Distinguished Features: 1. Max Speed: 12000sheets/h
2. Servo Compensation Positioning
3. Automatic Adjustment When Paper Size Changed
Specification
Model |
YB-1450H |
YB-1650H |
Max Sheet |
1450*1300mm |
1650X1450mm |
Min Sheet |
500X500mm |
500X500mm |
Top Paper Thickness |
150-500g |
150-500g |
Max Speed |
150m/min |
150m/min |
Fitting Precision |
1.5mm |
1.5mm |
Measurement |
13*2.4*2.4M |
15*2.6*2.4M |
Machine Weight |
8500kg |
9000kg |
Machine Power |
22KW/380V |
25KW/380V |
Bottom Paper Thickness |
A,B,C,E,F,AB,BB,BC,EE/ Corrugated paper/ Industry coardboard | |
Our Company

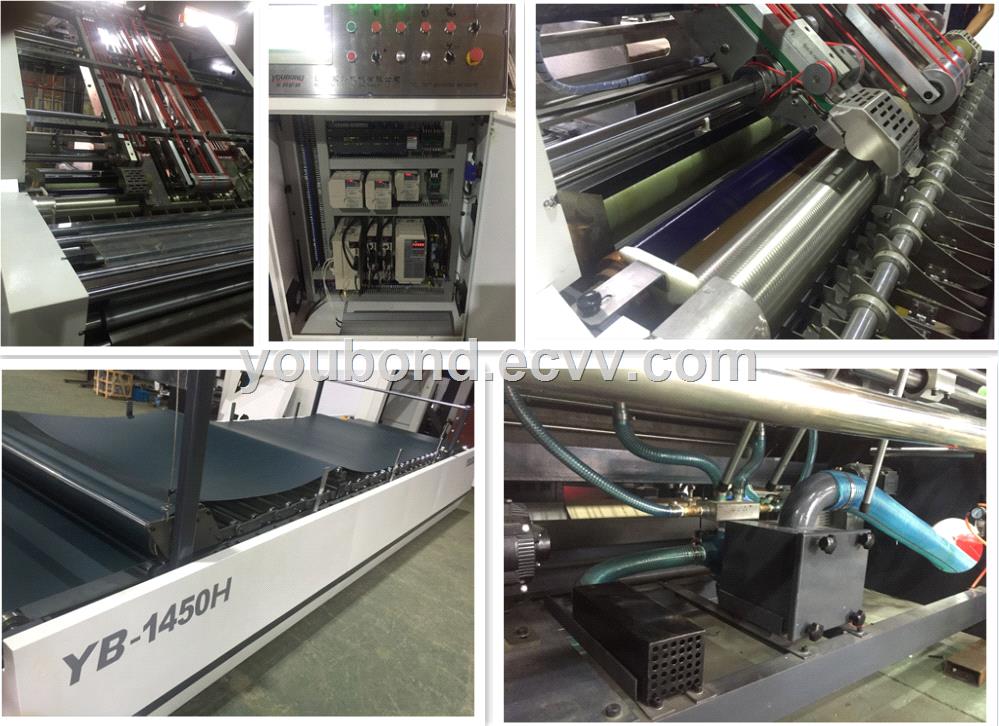

Machine Detail:

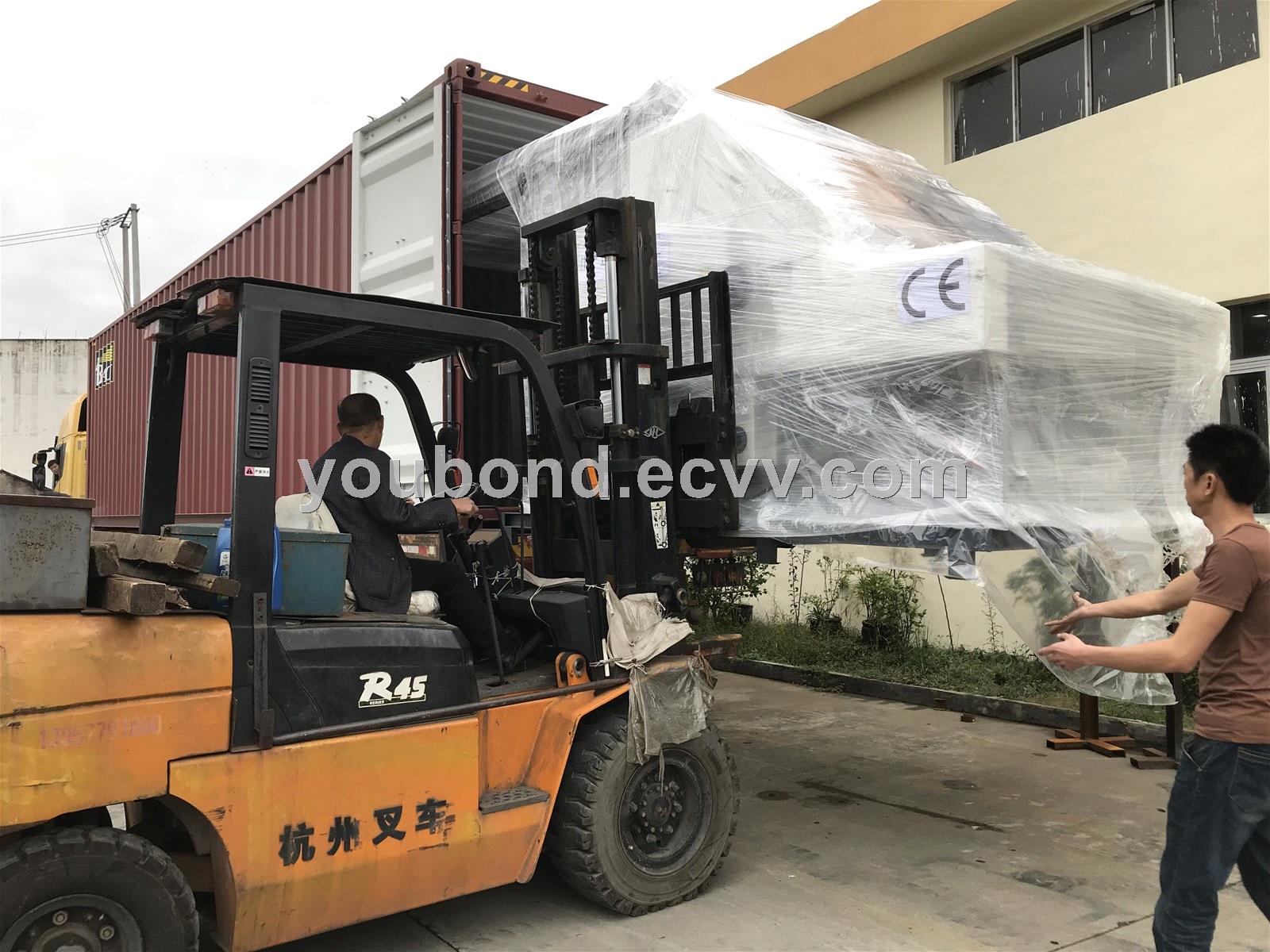

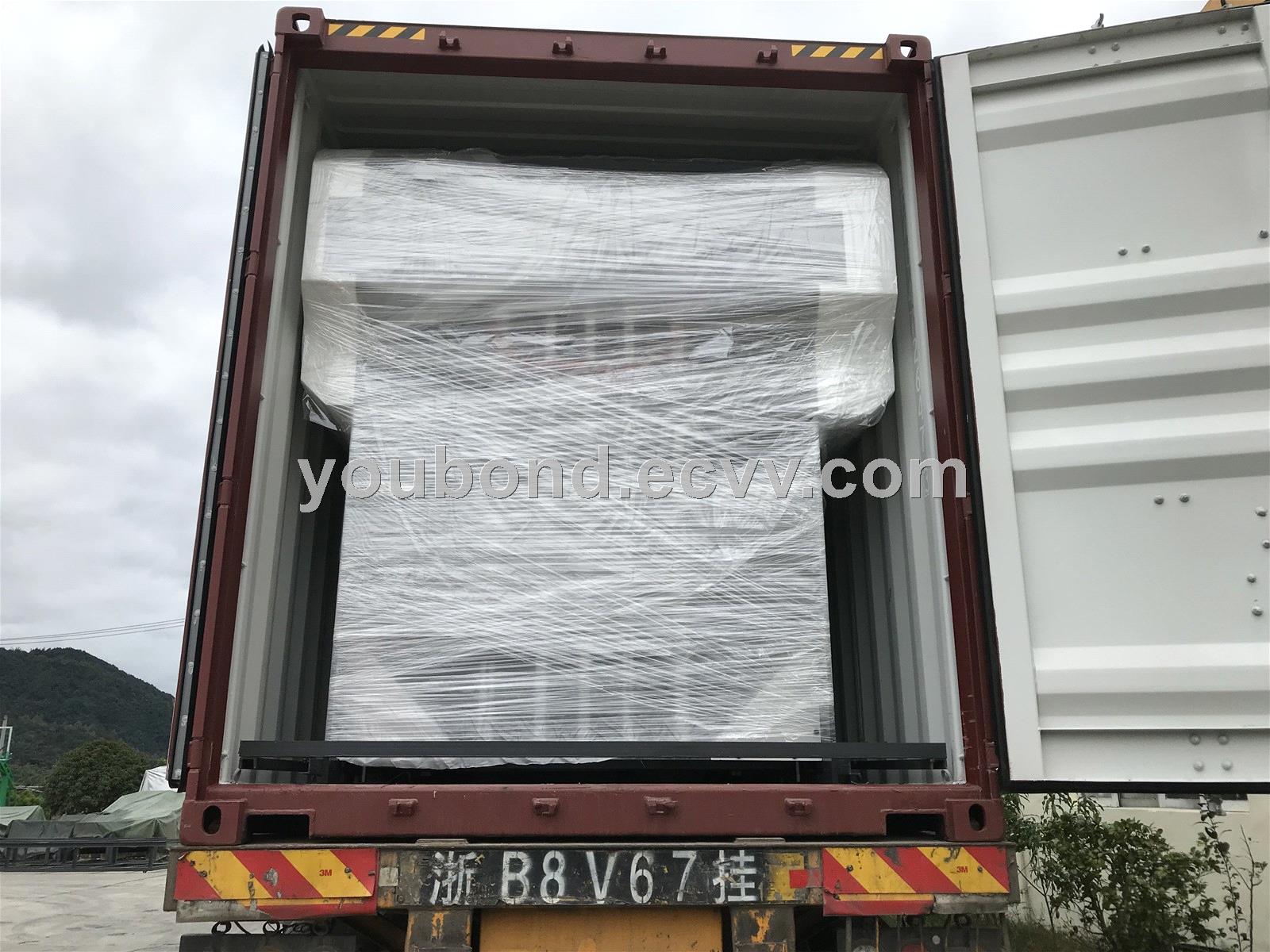

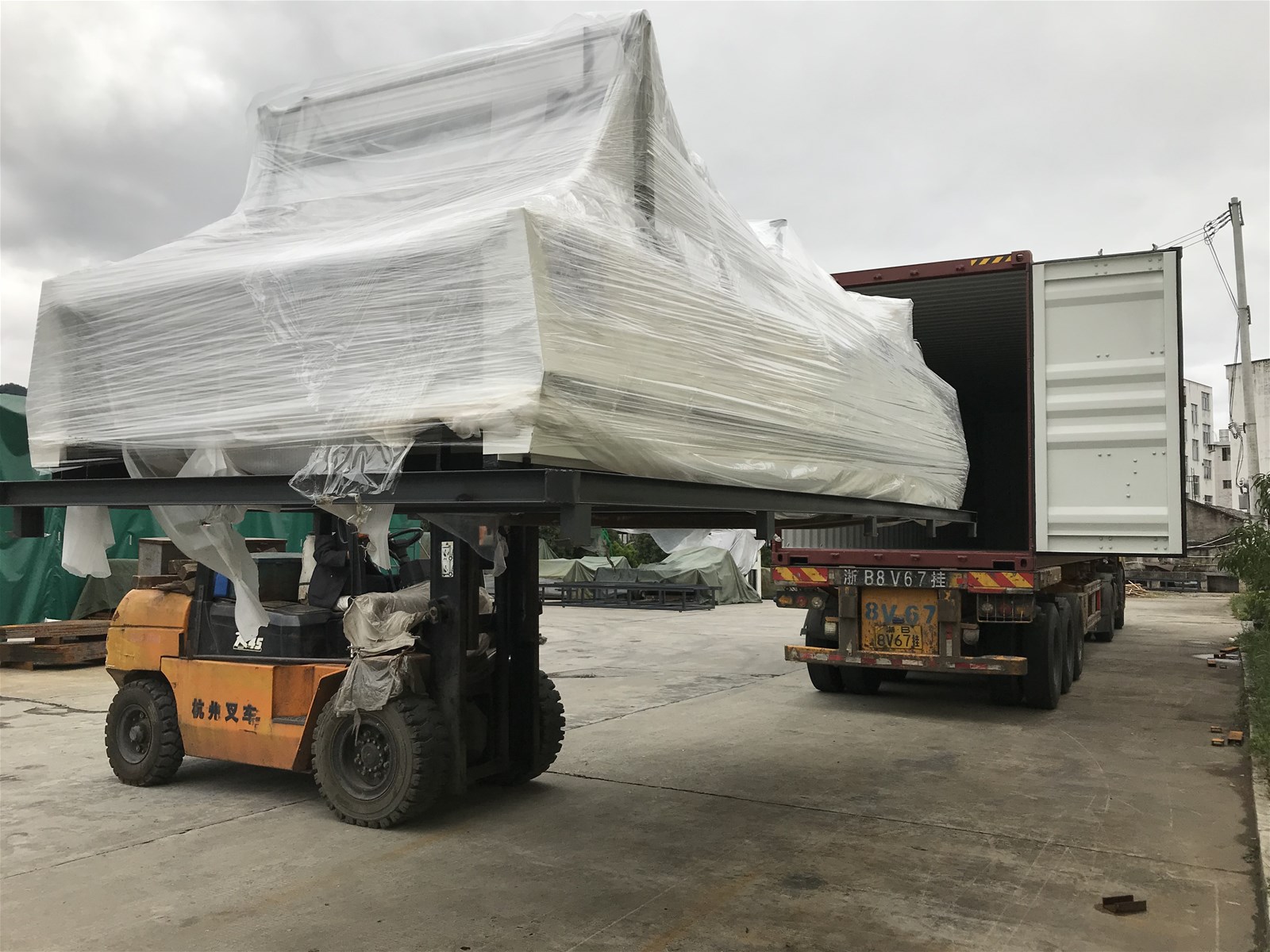

Package Images:
