YB-1100B/1300B/1450B/1650B semi-automatic flute lamination machine

Introduction:

this machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. this humanized design makes paper feeding easier and more efficient. It is suitable for the top paper of the Cardboard paper (Duplex paper) from 175-600GSM, kraft paper from 130-450GSM, E flute (for the semi-automatic flute laminator). the bottom paper of the A/B/C/E/F flute, four layers paper, such as: AB/BB/BC/BE/EE, gray board paper from 600GSM to 2000GSM and three layers and five layers corrugated paper.





Main Technical Parameter:

Model	Max.Sheet size	Min.Sheet size	Total power	Speed	Weight	Measurement
YB-1100B	1100*1100mm	350*350mm	8kw	0-90m/min	4000kg	8000*1770*1750mm
YB-1300B	1300*1100mm	350*350mm	8kw	0-90m/min	4500kg	8000*1970*1750mm
YB-1450B	1450*1100mm	350*350mm	9kw	0-90m/min	5000kg	8000*2020*1750mm
YB-1650B	1650*1300mm	350*350mm	11kw	0-90m/min	5500kg	8000*2250*1750mm

1. Measurement of the machine: 8000*2020*1750mm;

2. G.W/ N.W: 4500KG/4000KG

3. Speed: 0-90m/min

4. Voltage: 380V, 50HZ, 9kw, 3 phase

5. Max. Sheet size: 1450**1100mm

6. Min. Sheet size: 350*350mm

7. Glue: cornstarch glue and the glue is adoptIng the Flute laminatiNg machine

8. Top sheet: Top sheet of cardboard paper from 175GSM to 600GSM

           Kraft paper from 130GSM to 450GSM

           E/F Flute

9. Bottom sheet: A/B/C/E/F corrugated paper

Four ply corrugated paper, such as: AB/BB/BC/BE/EE

the gray board paper from 600GSM to 1800GSM





Main Parts of the machine:

1. Touch screen  WENVIEW (Taiwang)

2. PLC  FATEK (Taiwang)

3. LIquid Level Relay  CHAT

4. Axletree  SNK (Japan), Haerbin (China)

5. Convey belt  HABASIT (Switzerland)

6. Plane Transmission belt -- HABASIT (Switzerland)

7. the machine passed CE of European Union seCurity certificate



Vedio on Youtube:



Our Company:

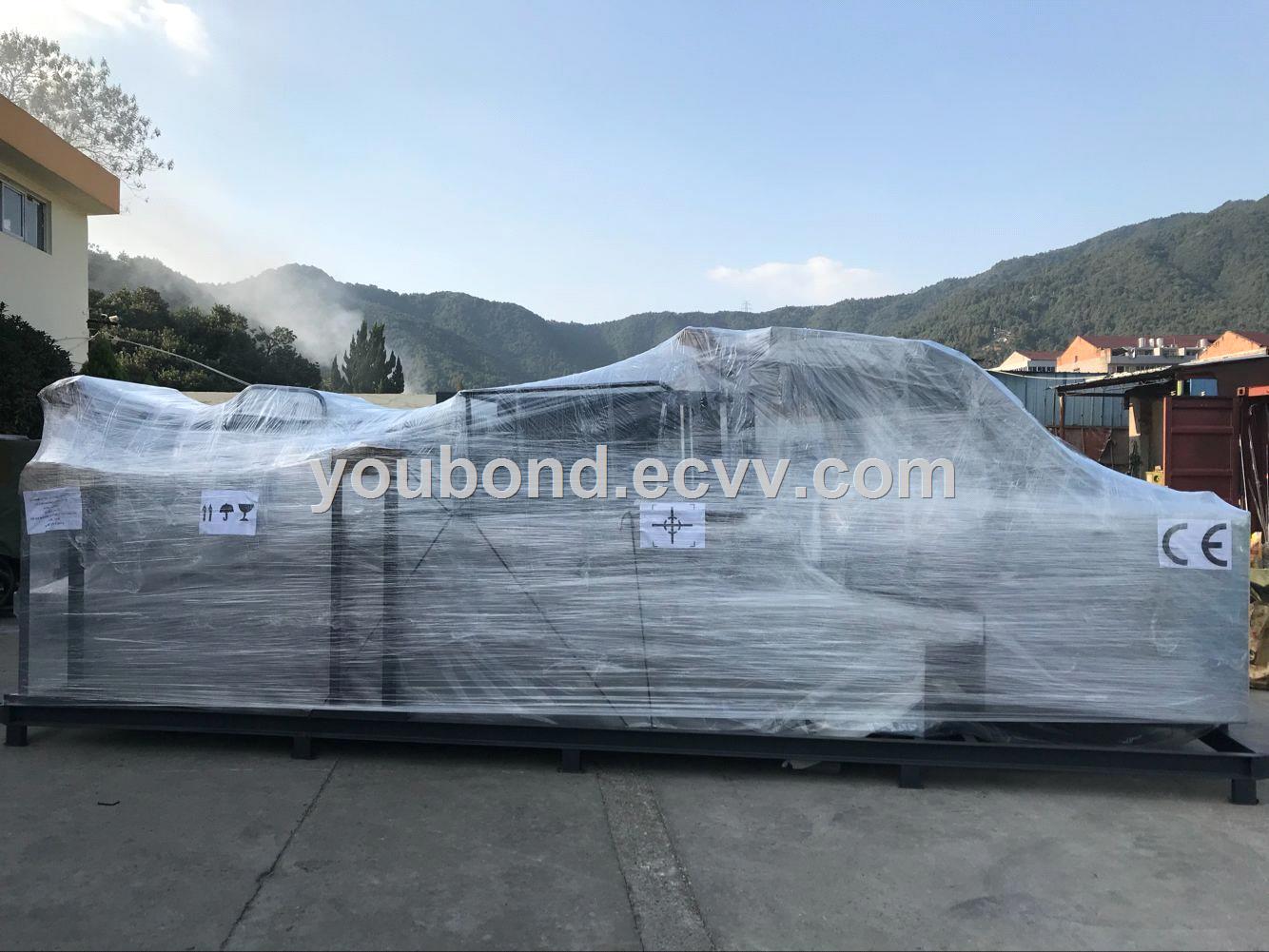

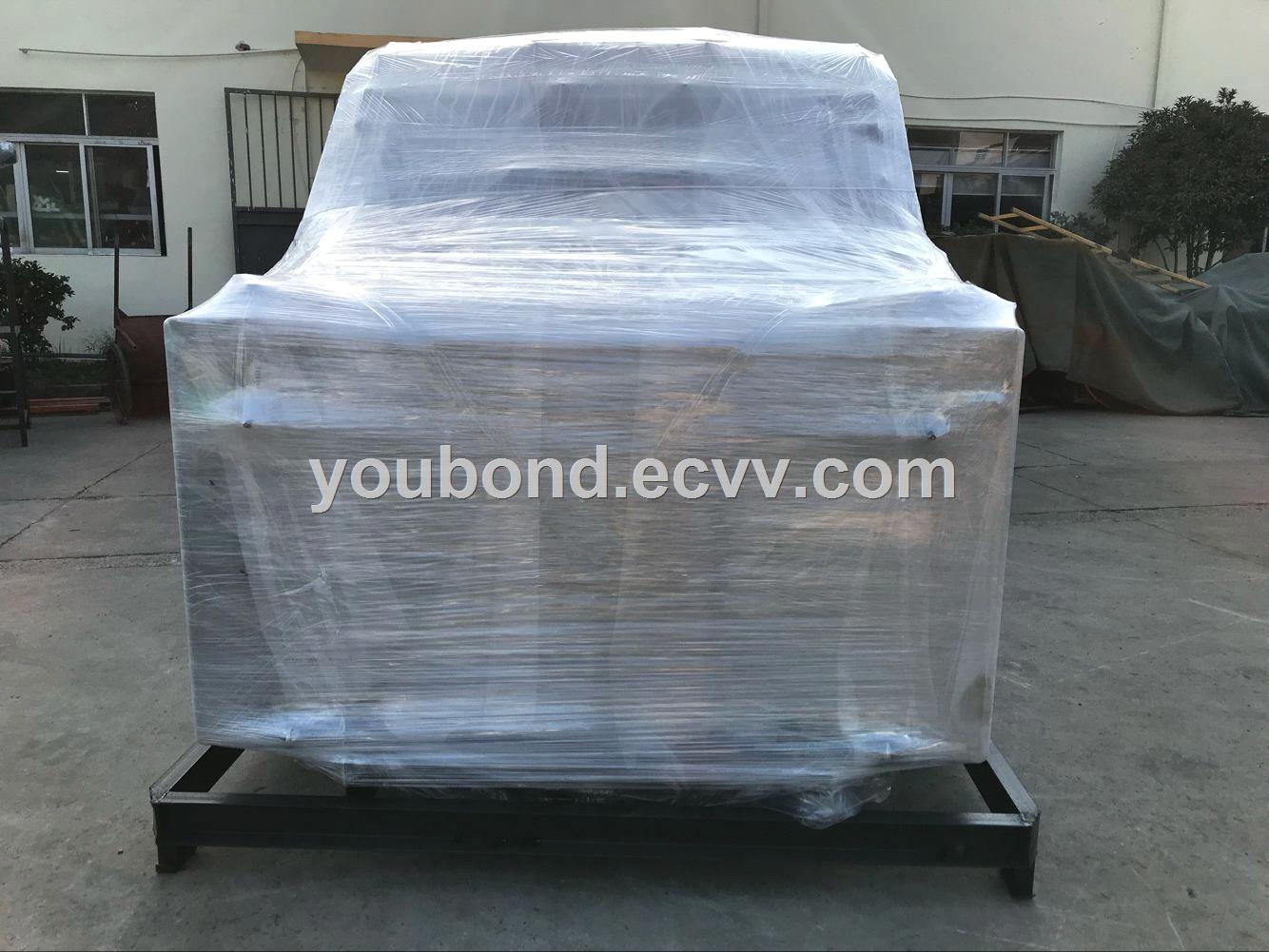

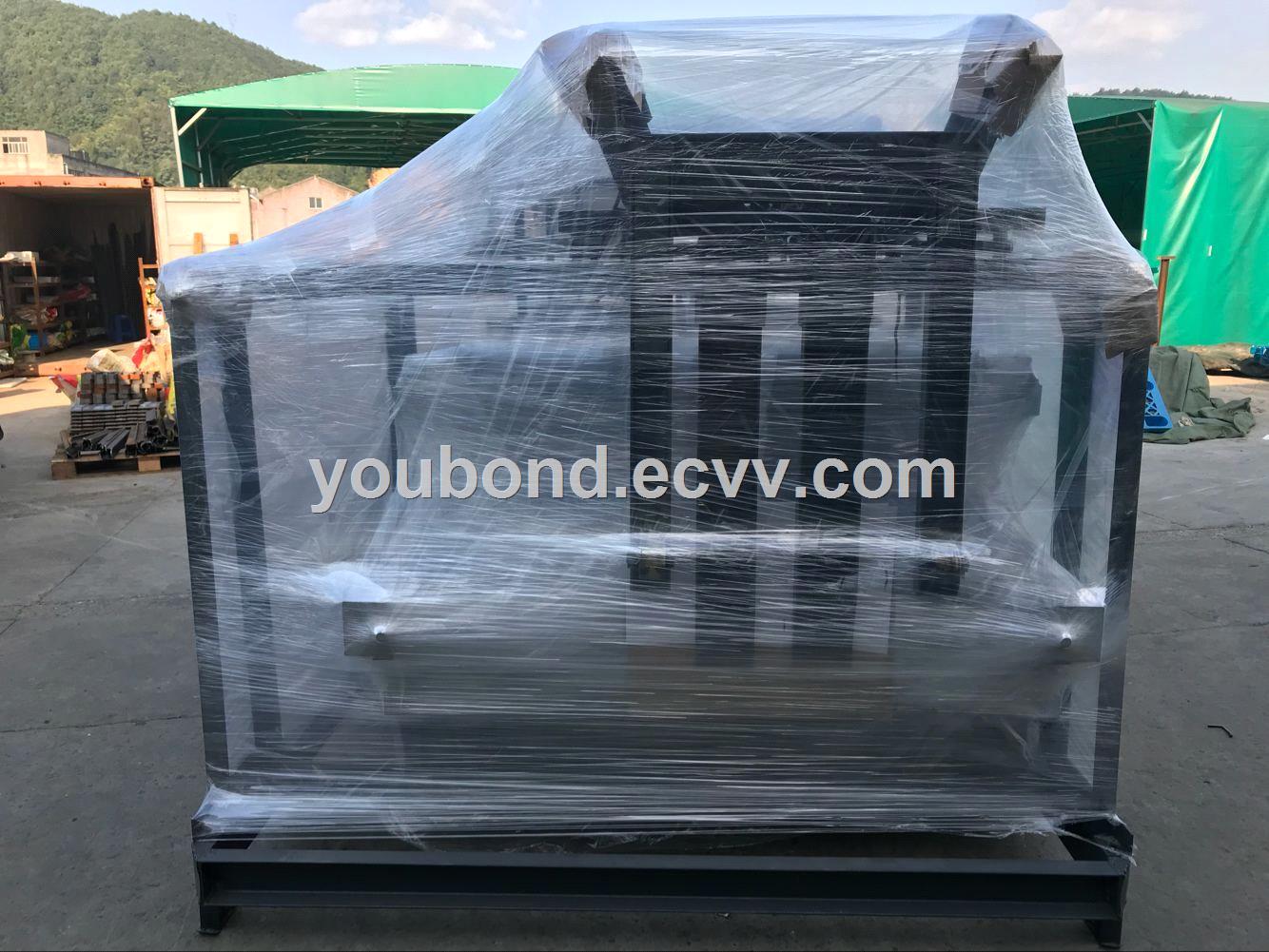

Packing images:
