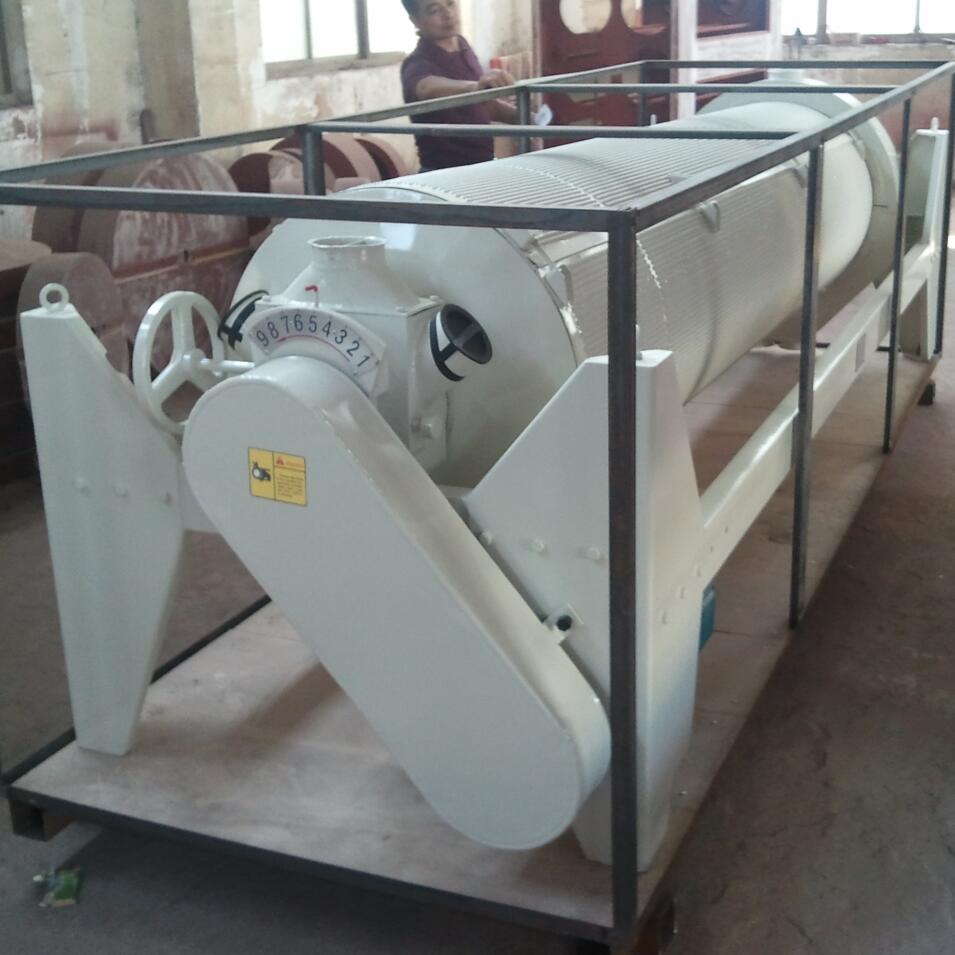

Indented Cylinder SeparatorAlso called length separator is used to Grade granular materials (such as wheat, oats, fine seeds) by length. It Can also be used to separate unwanted long or short impurities (such as Foreign grain, broken grain, etc.). after granular materials flow into the interior of the rotating cylinder equipped with special pockets (also called indents), foreign materials will be collected into the Pockets and discharged by the screw conveyor located inside the Cylinder.

Features

- Flexible combination of cylinders to meet different grading requirements.

- to realize the optimal grading efficiency by means of minimizing the distance between the individual pockets.

- It can separate almost all the granular materials by length

- to separate buckwheat, oats and grass seeds from wheat in wheat flour mill

- to separate broken rice in rice mill

- to separate stalks from sunflower seeds

for more products and details, Pls feel free to contact us.
Anyang Seven Continents International Engineering and Trading Co., Ltd
()

Technical Data

Type	Capacity	Power	Air Volume	Resistance	Dia.X L	Cylinder Qty	Size(L X W x H)	Weight
	t/h	KW	M3/h	PA	mm	pic	mm	kg
FGJZ 60x1	1-1.5	1.1	200	60	600x2000	1	2760x780x1240	500
FGJZ 71x1	1.5-2	1.1	360	60	710x2500	1	3300x1100x1440	800
FGJZ 60x2	3-4	2.2	400	60	600x2000	2	2760x780x1900	1000
FGJZ 71x2	3.5-4	2.2	720	80	710x2500	2	3300x1100x2000	1700
FGJZ 60/71	4-5	2.6	400	60	710x2500	1	3280x1000x1900	1500
					600x2500	1
FGJZ60/71/71	7-8	4.1	800	60	710x2500	2	3400x1100x2570	2000
					600x2500	1
FGJZ63x200A	5	5.9	900	350	630x2000	3	3180x1140x2900	2250
FGJZ63x250A	6.5	5.9	900	350	630x2500	3	3680x1140x2900	2430
FGJZ63x300A	8	5.9	900	350	630x3000	3	4180x1140x2900	2600
FGJZ71x300A	9	5.9	900	350	710x3000	3	4180x1140x3060	2800
FGJZ63x300H	12	5.9	900	350	630x3000	3	4180x1140x2900	2350
FGJZ71x300H	15	5.9	900	350	710x3000	3	4180x1140x2900	2550

for more products and details, Pls feel free to contact us.
Anyang Seven Continents International Engineering and Trading Co., Ltd
