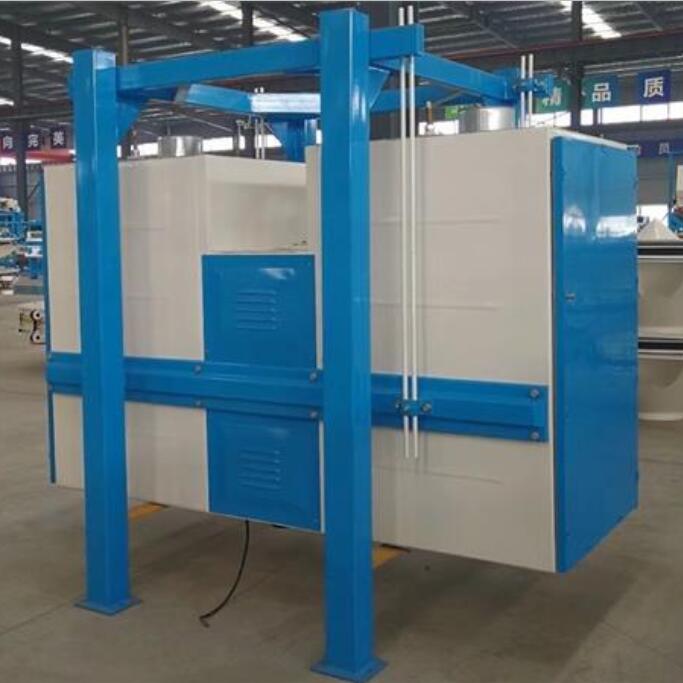

Small Planisfter is used to sift and classify materials according to the Particle size and it is usually used as flour control sifter.

Features

- Compact structure design and small Working space needed

- Easy and fast to change the sieves

- with cleaners under the sieve to Avoid blocking

- Various sieve frame sizes available-630mmx630mm, 700mmx700mm, 830x830mm, 100mmx100mm, 1200mmx1200mm

- Two series of small plansifter available-single Compartment and double compartment

- Widely used in modern wheat flour Mill, semolina mill and rice flour mill

Working principle

the Sifter is Driven by a motor installed under the main frame to do plane rotary motion through the eccentric block. the material is fed into the inlet and flows down step by Step according to respective design for different materials, and in the same Time it is separated to several streams according to the particle size. the Material can be separated into max. Four types material. the flow sheet can be Designed by different requirements.

Sifting Area (m2)	Capacity (for flour) (t/h)	Rotary Diameter (mm)	Rotary Speed (r/min)	Power (kW)	Weight (kg)	Shape Size LWH (mm)
2.5	1~1.5	45	290	0.75	320	113010301650
2.8	1.5~2	45		0.75	400	120011401650
4.5	2~3	50		0.75	470	138012801860
6.4	3~4	50		1.1	570	158014801950
10.5	6~8	50		1.5	800	196018902500



Technical Data-single compartment

Type	Sifting Area (m2)	Main Shaft Speed (r/min)	Capacity (t/h)	Rotary Diameter (mm)	Power (kW)	Weight (kg)	Shape Size LWH (mm)
FSFJ21063	4.2	290	2-2.5	45~55	1.1	580	168012701500
FSFJ21070	6.2	265	3-3.5	45~55	1.1	670	184013501760
FSFJ21083	8.5	255	5-7	45~55	1.5	815	212014402120
FSFJ210100	13.5	255	8~10	45~55	2.2	1500	253017172270



for more products and details, Pls feel free to contact us.
