| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | XINHENG |
| Automatic Grade: | Automatic |
| Type: | Horizontal |
| Condition: | New |
| Certification: | ISO9001 |
| Weight: | 900KG |
| Dimension(L*W*H): | 1500*1000*1500mm |
| Power(W): | 3kw |
| Voltage: | 220v |
| Model Number: | CK0640 |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Swing diameter over bed: | 320mm |
| Swing diameter over table: | 90-150mm |
| Row of knife number: | 4-8 |
| Spindle bore: | 49mm |
| Spindle speed: | 100-2100r/min |
| Cross stroke: | 260mm |
| Max.length of production: | 500mm |
| Control system: | customized require (GSK/SIEMENS/FUNUC) |
| color: | customized require |
| warranty: | 12 months |
Quick Details
Specifications
Details

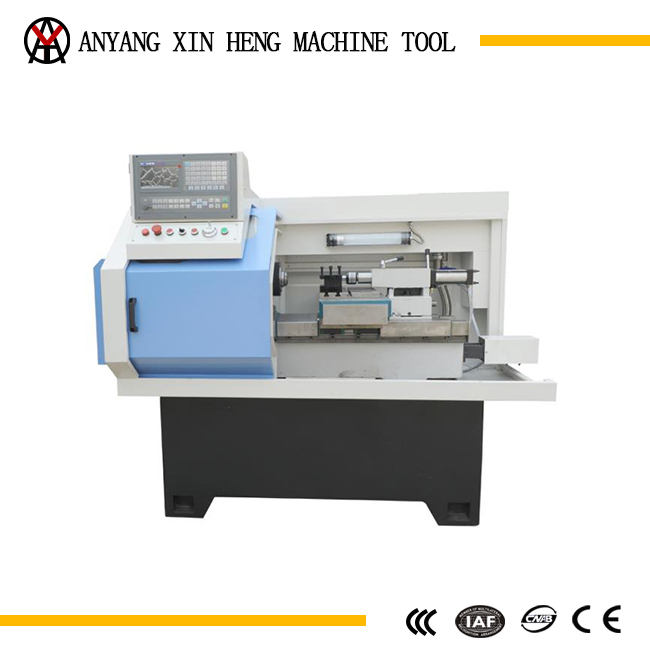

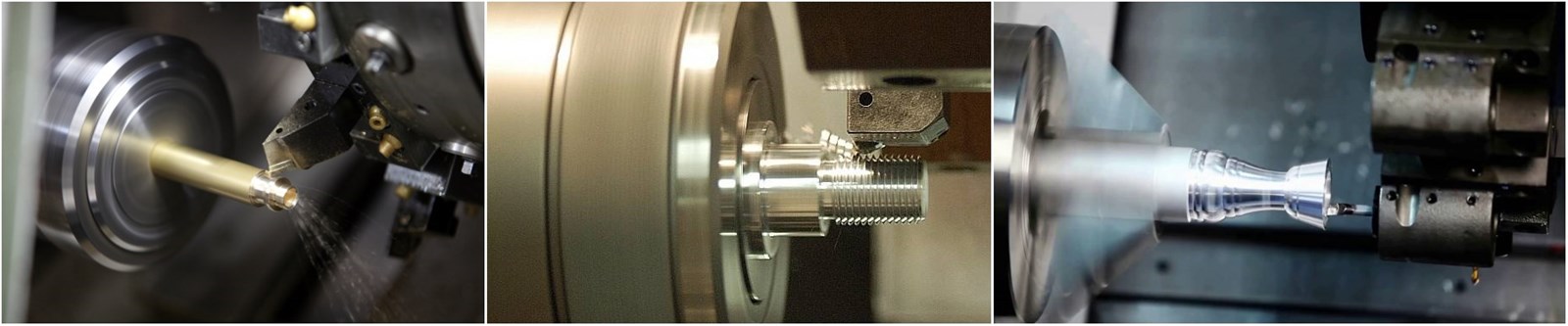

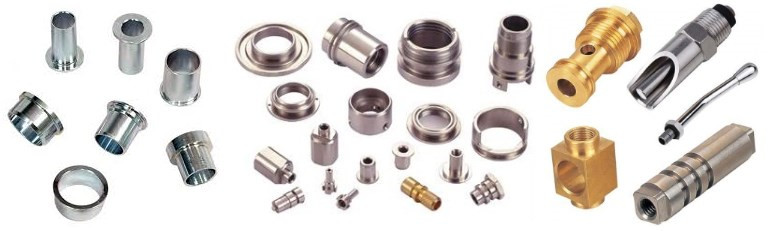

the small lathe adopts the mechanical and electrical integration design, which with reasonable structure, widely application, simple operation and beautiful appearance. It can achieve automatic control, automatically process a variety of parts of the inner and outer ring, end face, slot, any conical surface, spherical and other public Inch cylinders, taper threads, etc.
TECHNICAL PARAMETERS:
ADVANTAGES of SMALL CNC LATHES:
1. High precision (processing accuracy 0.01mm). Repeat positioning(0.01mm)
2. Rail surface is by supersonic frequency quenching.
3. the dynamic performance is excellent.
4. the operation is easr for workers
5. Every lathe can configure automatic feeding device whichcan achieve fully automation.
MAIN CONFIGURATION:
the small lathe adopts the mechanical and electrical integration design, which with reasonable structure, widely application, simple operation and beautiful appearance. It can achieve automatic control, automatically process a variety of parts of the inner and outer ring, end face, slot, any conical surface, spherical and other public Inch cylinders, taper threads, etc.
TECHNICAL PARAMETERS:
| Specifiction | Unit | CK0632 | CK0640 | CK0660 | CK6132 | CK6136 |
| Swing diameter over bed | mm | 200 | 320 | 320 | 320 | 360 |
| Swing diameter over table | mm | 80-150 | 90-150 | 80-150 | 160 | 200 |
| Row of knife number | 4--8 | 4--8 | 4--8 | 4--8 | 4--8 | |
| Spindle bore | mm | 38 | 49 | 89 | 60 | 60 |
| Spindle speed | R/min | 100-2500 | 100-2100 | 100-1800 | 150-2200 | 150-2200 |
| Cross stroke | mm | 380 | 260 | 380 | 260 | 260 |
| Max.Length of production | mm | 260 | 500 | 260 | 750 | 750 |
| Rapid traverse | Mm/min | X:5000 Z:6000 | ||||
| Power of main motor | kw | 3 | 3 | 3 | 5.5 | 5.5 |
| N.W. | kg | 800 | 900 | 950 | 1700 | 1700 |
| L*W*H | mm | 1500*1000*1500 | 1980*1400*1650 | |||
| Control system | customized require (GSK/SIEMENS/FUNUC) | |||||
2. Rail surface is by supersonic frequency quenching.
3. the dynamic performance is excellent.
4. the operation is easr for workers
5. Every lathe can configure automatic feeding device whichcan achieve fully automation.
MAIN CONFIGURATION:
- CNC system:GSK928, servo motor and drive
- 3-jaw chuck
- Four station electric tool post
- Manual tailstock
- LED light
- Spindle center, live center
- Cooling system
- Lighten system
- Automatic lubrication system
