| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | XINHENG |
| Automatic Grade: | Automatic |
| Type: | Horizontal |
| Condition: | New |
| Certification: | ISO9001 |
| Weight: | 1700KG |
| Dimension(L*W*H): | 1980*1400*1650mm |
| Power(W): | 5.5kw |
| Voltage: | 220v |
| Model Number: | CK6136 |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Swing diameter over bed: | 360mm |
| Swing diameter over table: | 200mm |
| Row of knife number: | 4-8 |
| Spindle bore: | 60mm |
| Spindle speed: | 150-2200mm |
| Cross stroke: | 260mm |
| Max.length of production: | 750mm |
| Control system: | customized require (GSK/SIEMENS/FUNUC) |
| color: | customized require |
| warranty: | 12 months |
Quick Details
Specifications

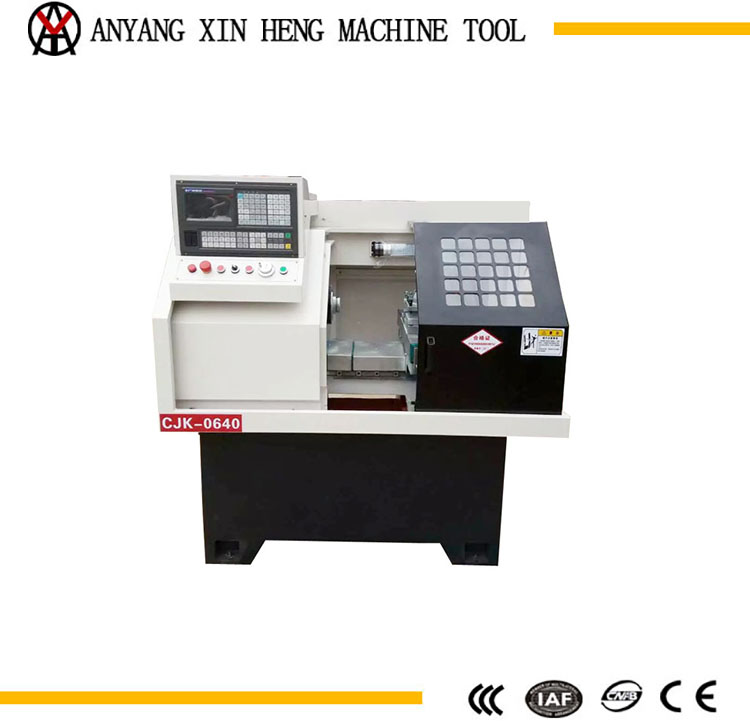

MINI CNC LATHE INTRODUCTION:
The mini CNC lathe can achieve automatic control, which can process a variety of parts of the inner and outer ring, end face, slot, any conical surface, spherical and other public Inch cylinders, taper threads, etc. The biggest feature of the small lathe is the main use of spring chuck clip workpiece. this method is particularly suitable for small pieces of the workpiece clamping, and the operation is simple, one skilled worker can operate 2-3 machines at the same time.
DETAILS of MINI CNC LATHE: The main rotating system: the main rotation system is the role of the drive device movement and power transmission to the implementation of pieces, to achieve active cutting movement.
Feed rotation system: a table, knife and so on. Feed the rotation system is the role of the servo drive device movement and power transmission to the implementation of parts, to achieve feed movement.
the basic support: including the bed, column, rail, table and so on. the purpose of the base support is to support the main parts of the machine and to keep them in a correct position in rest or movement.
FEATURES of MINI CNC LATHE: High precision (processing accuracy 0.01mm); Repeat positioning(0.01mm); Overall cast bed;; Rail surface super audio quenching; Screw thicker; Precision bearings; Reinforced spindle motor; High rotation accuracy; Good shock resistance; High precision ball screw; Dynamic performance is excellent.
TECHNICAL PARAMETERS:
Anyang Xinheng Machine Tool Co. Ltd. Is a professional machine tool manufacturer since 1946. Our factory covers an area of more than 30000 squares meters, equipped with our updated manufacturing facilities. We have LATHE, CNC LATHE, PIPE THREAD LATHE, SPHERE TURNING LATHE etc. We have attained ISO9001:2000 International Quality Control System Certification. Our products are sold both at home and abroad, and they are very popular around the world. Welcome to contact us!
DETAILS of MINI CNC LATHE: The main rotating system: the main rotation system is the role of the drive device movement and power transmission to the implementation of pieces, to achieve active cutting movement.
Feed rotation system: a table, knife and so on. Feed the rotation system is the role of the servo drive device movement and power transmission to the implementation of parts, to achieve feed movement.
the basic support: including the bed, column, rail, table and so on. the purpose of the base support is to support the main parts of the machine and to keep them in a correct position in rest or movement.
FEATURES of MINI CNC LATHE: High precision (processing accuracy 0.01mm); Repeat positioning(0.01mm); Overall cast bed;; Rail surface super audio quenching; Screw thicker; Precision bearings; Reinforced spindle motor; High rotation accuracy; Good shock resistance; High precision ball screw; Dynamic performance is excellent.
TECHNICAL PARAMETERS:
| Specifiction | Unit | CK0632 | CK0640 | CK0660 | CK6132 | CK6136 |
| Swing diameter over bed | mm | 200 | 320 | 320 | 320 | 360 |
| Swing diameter over table | mm | 80-150 | 90-150 | 80-150 | 160 | 200 |
| Row of knife number | 4--8 | 4--8 | 4--8 | 4--8 | 4--8 | |
| Spindle bore | mm | 38 | 49 | 89 | 60 | 60 |
| Spindle speed | R/min | 100-2500 | 100-2100 | 100-1800 | 150-2200 | 150-2200 |
| Cross stroke | mm | 380 | 260 | 380 | 260 | 260 |
| Max.Length of production | mm | 260 | 500 | 260 | 750 | 750 |
| Rapid traverse | Mm/min | X:5000 Z:6000 | ||||
| Power of main motor | kw | 3 | 3 | 3 | 5.5 | 5.5 |
| N.W. | kg | 800 | 900 | 950 | 1700 | 1700 |
| L*W*H | mm | 1500*1000*1500 | 1980*1400*1650 | |||
| Control system | customized require (GSK/SIEMENS/FUNUC) | |||||
