| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | ISO9001 |
| Brand Name: | XINHENG |
| Condition: | New |
| Weight: | 10000KG |
| Dimension(L*W*H): | 5000X1900X1800mm |
| Power(W): | 18.5kw |
| Voltage: | 220v |
| Model Number: | ZW-TA12 |
| Place of Origin: | China (Mainland) |
| Automatic Grade: | Automatic |
| Type: | Horizontal |
| Condition: | New |
| CNC or Not: | CNC |
| Blanks weight: | 120g |
| Productivity: | 70n/min |
| MotorPower: | 18.5kw |
| Frequency furnace: | 100kw |
| Machine weight: | 10000kg |
| Machine size L*W*H: | 5000X1900X1800mm |
Quick Details
Specifications
the complete production line consists of brass rod making machines, brass forging machines, CNC lathes and assembly line. It can produce the valves from scrap cooper material. The brass making machines including melting furnace, temperature keeping furnace, automatic cutting machine and so on. The manufacturing process are as follows:
Step 1: the brass rod making machines process copper rod from scrap copper material.

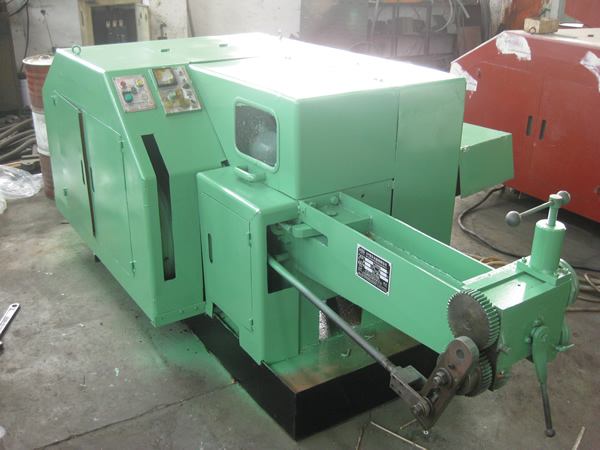

Step 2: the automatic valve hot forging machine is a high efficient automatic machine which produce variety shapes of semi-finished product(valve blanks).
Step 3: Finally turning the valve blanks into finish products.
PARAMETER:
Step 1: the brass rod making machines process copper rod from scrap copper material.
Step 2: the automatic valve hot forging machine is a high efficient automatic machine which produce variety shapes of semi-finished product(valve blanks).
Step 3: Finally turning the valve blanks into finish products.
PARAMETER:
| Model | Blanks weight (g) | Productivity (n/min) | MotorPower (KW) | Frequency furnace power(KW) | Machine weight (KG) | Machine size L*W*H (mm) |
| ZW-TA06 | 30 | 70 | 4 | 50 | 2500 | 2150X1100X1100 |
| ZW-TA08 | 50 | 70 | 7.5 | 60 | 5000 | 4200X1500X1450 |
| ZW-TA10 | 100 | 70 | 15 | 80 | 8000 | 4900X1850X1820 |
| ZW-TA12 | 120 | 70 | 18.5 | 100 | 10000 | 5000X1900X1800 |
| ZW-TA16 | 160 | 65 | 22 | 120 | 12000 | 5600X1900X1950 |
| ZW-TA20 | 200 | 60 | 30 | 150 | 15000 | 5800X1950X1900 |
| ZW-TA30 | 250 | 60 | 30 | 200 | 18000 | 5800X2000X1900 |
Anyang Xinheng Machine Tool Co. Ltd. Is a professional machine tool manufacturer since 1946. Our factory covers an area of more than 30000 squares meters, equipped with our updated manufacturing facilities. We have LATHE, CNC LATHE, PIPE THREAD LATHE, SPHERE TURNING LATHE etc. We have attained ISO9001:2000 International Quality Control System Certification. Our products are sold both at home and abroad, and they are very popular around the world. Welcome to contact us!
Our service:
Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time in the whole life of the machine.
Overseas after service center available in some region.
Engineer overseas service available on the requirement of customer(relative cost born by customer).
Free design drawing, free installation, free debugging, Cheap accessories.
