| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | xinheng |
| Automatic Grade: | Automatic |
| Type: | Horizontal |
| Condition: | New |
| Type: | Other Type |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Automatic Grade: | Automatic |
| Condition: | New |
| Certification: | ISO9001 |
| Voltage: | 220V |
Quick Details
Specifications
AUTOMATIC BEARING RING PRODUCTION LINE:XSPT-002 bearing ring automatic line is composed of three ADJ15P CNC lathes and a set of SMT20 Manipulator automatic feeding device.
the automatic line to grab the workpiece weight 7Kg.
Outer diameter: 100mm-200mm
the width of disk type parts: 14mm-70mm.
Designed according to user-specific requirements.
LAYOUT of the BEARING RING LATHES:
SIX-STATION ROTARY TRAY SILOS:the feeding device of the automatic line is composed by the 6 Station pallet type rotary silos, and the silo is controlled by the sensor induction signal. It can control the feeding position and the stroke of each action.
Silo specifications: 6 stations.
Delivery parts diameter: 30 ~ 230;
Each station stack height: 400mm.
Each tray carry weight: 35kg.
APPLICATION:
the automatic line to grab the workpiece weight 7Kg.
Outer diameter: 100mm-200mm
the width of disk type parts: 14mm-70mm.
Designed according to user-specific requirements.

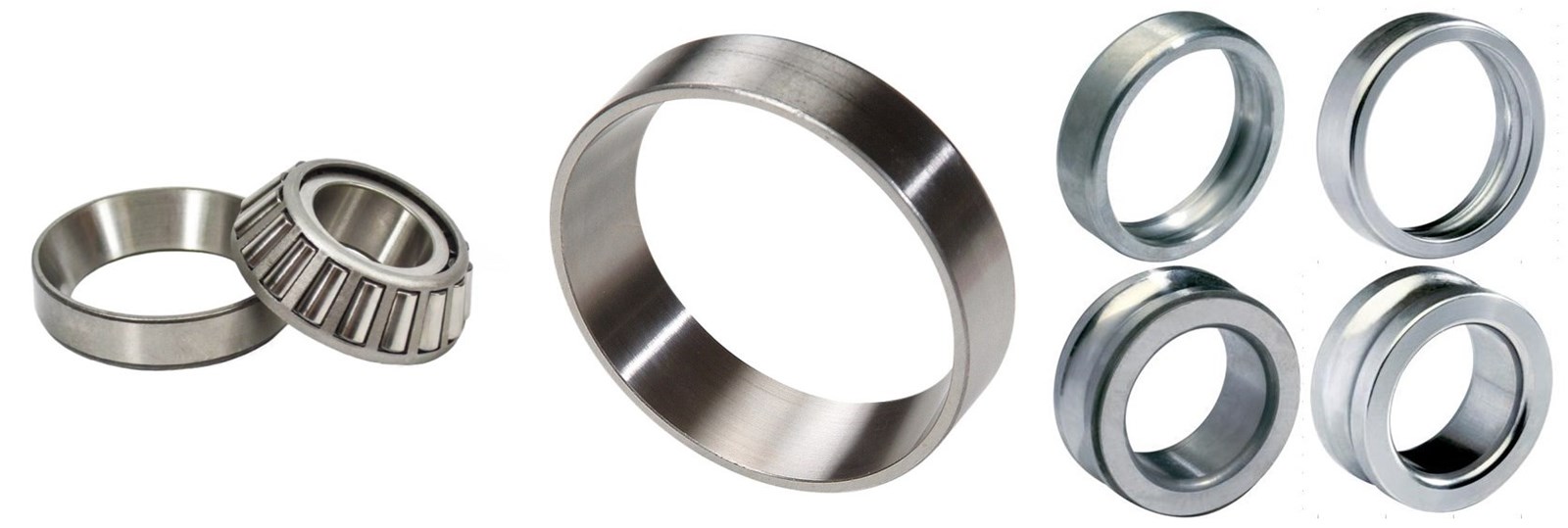

| Workpiece | Bearing out ring(No. CG-GAC110S/K.01-LG1) |
| Annual output estimation | 12 months26 days20 hours3600 seconds0.85 Utilization rate/85 seconds(Automatic line cycle time)= 224640 pieces. |
LAYOUT of the BEARING RING LATHES:
SIX-STATION ROTARY TRAY SILOS:the feeding device of the automatic line is composed by the 6 Station pallet type rotary silos, and the silo is controlled by the sensor induction signal. It can control the feeding position and the stroke of each action.
Silo specifications: 6 stations.
Delivery parts diameter: 30 ~ 230;
Each station stack height: 400mm.
Each tray carry weight: 35kg.
APPLICATION:
