| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | Shuohao |
| voltage: | 380v |
| weight: | 10000kg |
| Condition: | new |
| Model Number: | GRX-800 |
| Place of Origin: | China (Mainland) |
| color: | green |
| Name: | transformers 1500kva coil winding machine |
| Application: | for transformer making |
| usage: | copper wire winding |
| winding width: | 800mm |
| coil diameter: | 80-600mm |
| max coil weight: | 300kg |
| coil cross section: | round oval rectangle |
Quick Details
Specifications

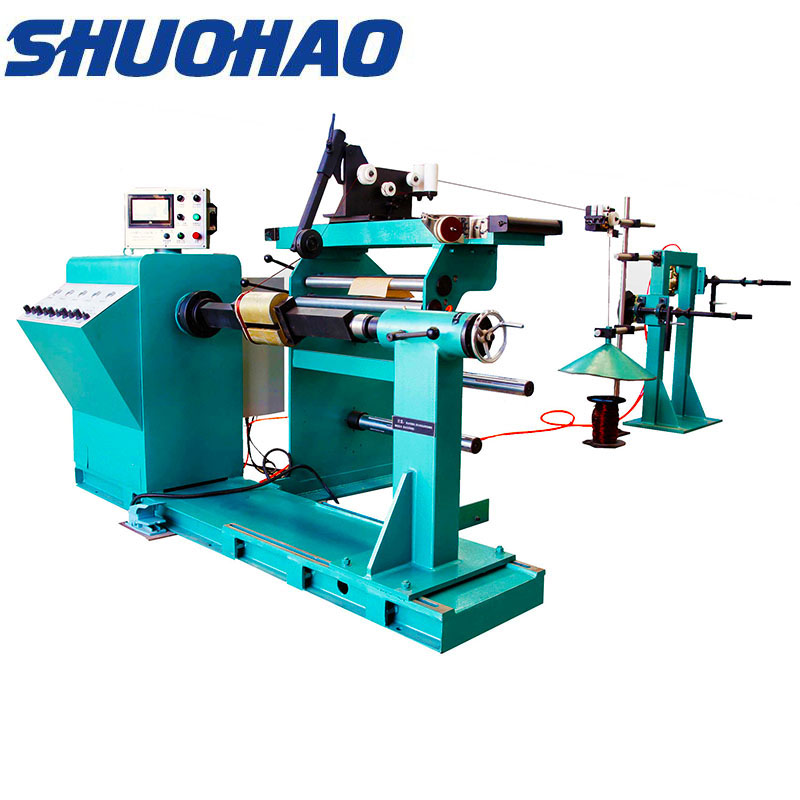

Max Coil Weight 300kg Transformers 1500kva Coil Winding Machine
Application
It is a very popular machine which can wind a wide range of HV coils for distribution transformers using round and rectangular conductors.
Composition
Winding host
Automatic wire guide traversing mechanism
Insulation layer decoiler
Round wire and flat wire decoiler with tension control
PLC control
Operation touch screen
Pneumatic system and foot pedal
Technical parameter
Model |
GRX-100 |
GRX-600 |
GRX-800 |
GRX-1000 |
Center height |
850 |
850 |
850 |
850 |
Center distance of winding shaft |
500mm |
600mm |
800mm |
1000mm |
Working torque |
200Nm |
300Nm |
300Nm |
300Nm |
Winding Speed |
0-600rpm |
0-600rpm |
0-600rpm |
0-600rpm |
Speed adjustment method |
Stepless Frequency speed adjusting | |||
Applicable coil size |
Outer diameter less than or equal to 400mm Inner diameter more than or equal to 80mm Axial height less than or equal to 400mm |
Outer diameter less than or equal to 500mm Inner diameter more than or equal to 60mm Axial height less than or equal to 500mm |
Outer diameter less than or equal to 600mm Inner diameter more than or equal to 60mm Axial height less than or equal to 800mm |
Outer diameter less than or equal to 800mm Inner diameter more than or equal to 60mm Axial height less than or equal to 1000mm |
Applicable coil weight |
100kg |
200kg |
300kg |
500kg |
Coil cross section |
Round,oval,rectangle | |||
Applicable Round wire diameter |
0.3mm3mm |
0.3mm3mm |
0.3mm3mm |
0.3mm3mm |
Applicable Flat wire size |
Less than 19mm |
Less than 312mm |
Less than 312mm |
Less than 312mm |
Automatic wire guider function |
Gap between each turns less than 0.01mm | |||
Whole power |
3kw |
4kw |
5kw |
6kw |
Main components brand
Main components |
Supplier |
Supplier |
High-power frequency converser |
Mitsubishi |
Inovance of China |
Servo System |
Mitsubishi |
Inovance of China |
PLC system |
Mitsubishi |
Inovance of China |
Touch screen |
Mitsubishi |
Inovance of China |
Electric elements |
Schneider |
China |
Pneumatic elements |
ATRATC(Taiwan) |
China |
Linear guide |
HIWIN |
China |
Accessories
Winding host |
|
Insulation layer decoiler |
3 sets |
Automatic wire guide traversing mechanism |
1 set |
Round wire decoiler with tension control |
1 set |
Two axis flat wire decoiler with tension control |
1 set |
Square shaft |
1 set |
Equipment Feature
1.Flat wire decoiler with tension control offer precise variable air actuated tension and they reduce spool over spin when winding stops.Tension force can be regulated from the operator control station.
2.Wire tension system for tension medium size round wire.
by utilizing a pneumatic dancer,the wire tension remains consistent and the wind quality uniform.
the tension head is mounted to a frame that provides for paying the wire off over the end of the supply roll or out of a barrel
3.Automatic insulation layer feeder.
