| Length: | 1600-1800 |
|---|---|
| Diameter: | 200mm-600mm |
| Application: | steel factory |
| Type: | Electrode Paste |
| Brand Name: | xs |
| Flexural Strength (N/): | 8.5 |
| Thermal Expansion: | 2.9 |
| Apparent Density (g/cm3 ): | 1.52 |
| Resistance (.m): | 8.5 |
| Grade: | RP (Regular Power) |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

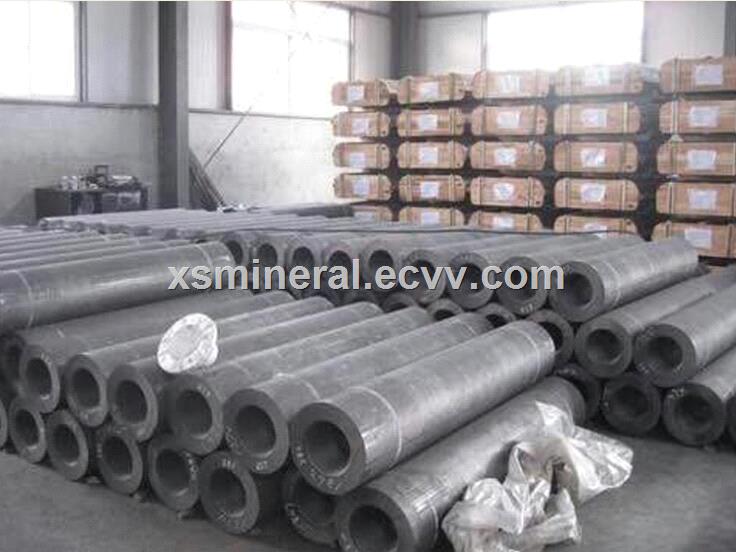

We can supply GRAPHITE ELECTRODE
RP,HD,HP,SHP,UHP
| ITEMS | RP | HP | UHP | ||||
| 200-300 | 350-600 | 200-400 | 450-600 | 250-400 | 450-600 | ||
| RESISTIVITY m (max) | ELECTRODE | 8.5 | 6.5 | 5.5 | |||
| NIPPLE | 6.5 | 5.5 | 4.5 | ||||
| BULK DENSITY g/cm (min) | ELECTRODE | 1.53 | 1.52 | 1.62 | 1.6 | 1.67 | 1.66 |
| NIPPLE | 1.69 | 1.73 | 1.75 | ||||
| MODULUS of RUPTURE MPa (min) | ELECTRODE | 8.5 | 7.0 | 10.5 | 9.8 | 11.0 | |
| NIPPLE | 15.0 | 16.0 | 20.0 | ||||
| YOUNG'S MODULUS GPa (max) | ELECTRODE | 9.3 | 12.0 | 14.0 | |||
| NIPPLE | 14.0 | 16.0 | 18.0 | ||||
| ASH % (max) | ELECTRODE | 0.5 | 0.3 | 0.3 | |||
| NIPPLE | 0.5 | 0.3 | 0.3 | ||||
| CTE(100-600) 1006/ max | ELECTRODE | 2.9 | 2.4 | 1.5 | |||
| NIPPLE | 2.8 | 2.2 | 1.4 | ||||
We can produce as your requirement
We have many kinds of graphite electrode, If you need it, you can send your detailed specification to me
I can give you best price.
We can supply related graphite goods as flowing:
1)SILICON CARBIDE
2)GPC
F.C:98.5%MIN
S:0.05%MAX
PACKAGE:25KGS*36/900KGS BIG BAG
F.C:98%MIN
S:0.3%MAX
PACKAGE:1MT JUMBO BAG
4)CPC
F.C:98.5%MIN
S:0.5%MAX
PACKAGE:1MT JUMBO BAG
5)CPC
F.C:98%MIN
S:0.8%MAX
PACKAGE:1MT JUMBO BAG
6)CARBON RAISER
F.C:90%MIN
F.C:92%MIN
F.C:93%MIN
F.C:94%MIN
F.C:95%MIN
