Conductor Material: | Copper |
---|---|
Application: | Power Station |
Type: | Low Voltage |
Insulation Material: | XLPE |
Brand Name: | ECHU/ OEM |
Model Number: | YJV22 YJY22 YJV23 |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
Product Standards
the product according to GB/T12706 " rated voltage 35KV and below copper, aluminum plastic insulated power cables " standards, while also based on user needs by the International Electrotechnical Commission standard IEC, British Standards, the German standards and U.S. Standards.
Scope
this product is suitable for frequency 0.6/1KV and below rated voltage distribution networks or industrial installations in fixed installations.
Use features
Rated power frequency voltage U0 / U is 0.6/1KV.
Allow cable conductor maximum temperature is 90.
Short (the longest duration of no more than 5s) conductor temperature does not exceed 250.
the ambient temperature should not be less than 0.
Cable bend radius of not less than 15 times the cable diameter.

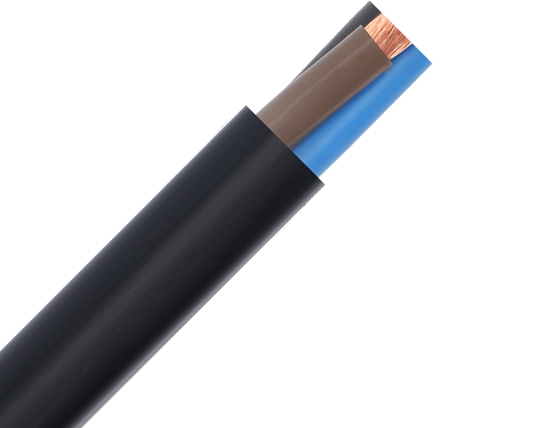

YJV22 Copper conductor/XLPE insulation/Steel Tape Armoured/PVC outer sheath Power Cable
YJV23 Copper conductor/XLPE insulation/Steel Tape Armoured/PE outer sheath Power Cable
ZC-YJV22 Copper conductor/XLPE insulation/Steel Tape Armoured flame-retardant Power
WDZC-YJY23 Copper conductor/XLPE insulation/Steel Tape Armoured Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable
NH-YJV22 Copper conductor/XLPE insulation/Steel Tape Armoured fire-resistant Power Cable
