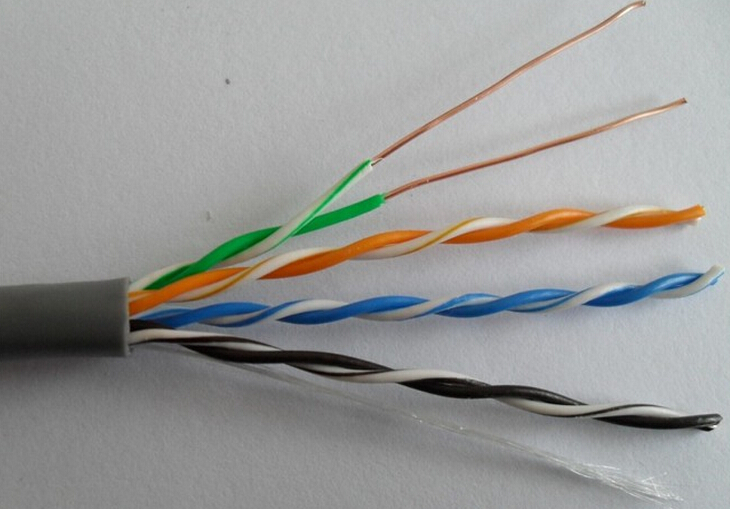

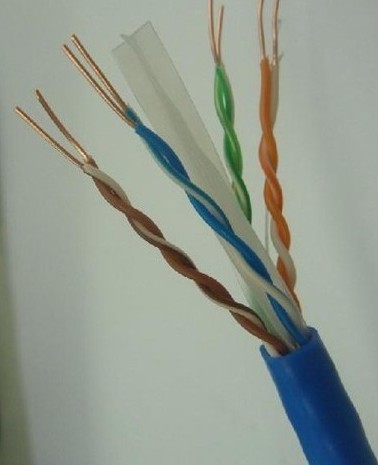

Cable applied in structured local networks of class D for high speed data and voice transmission, at primary, secondary (vertical) and tertiary (horizontal) level. Standardized for application up to 100 MHz (in certain configurations even up to 300 MHz).
Length of this cable in Ethernet networks is restricted at max. 100 m (ordinarily installed cable max. 90 m, with connecting cables of up to 5 m at both ends). Can be laid in cable canals.                                                                             Conductor:  copper (bare, single wired/solid), diameter 0,51 mm, AWG24
Insulation:  polyethylene (PE), external diameter 1,1 mm, per two conductors twisted in pairs
Common screen:  aluminium-laminated plastic foil + braid of tinned copper wires
Sheath:  external diameter6,4 - 6,6 mm
Possible designs:  PVC; halogen-free (LSHF, LSOH, FRNC); resistant to flame propagation acc. to IEC 60332-3 (LSHF-FR, LSFROH, FRNC-C)
Sheath colour:  grey (RAL 7035)
Conductor colour marking:
1. Pair:  blue / white with blue line
2. Pair:  orange / white with orange line
3. Pair:  green / white with green line
4. Pair:  brown / white with brown line
  Temperature range:
during installation:
 0C up to +50 C
Operating temp.:  -20 C up to +60 C
Min. Inner bending radius:
Fixed installed:  4D (25 mm)
under load:  8D (50 mm)
Behaviour in fire:  IEC 60332-1
Fire load:
PVC:  474 MJ/km
LSHF:  433 MJ/km
Maximal tensile strength:  120 N
Cable weight:
PVC:  46 kg/km
LSHF:  47 kg/km
Copper weight:  27 kg/km
