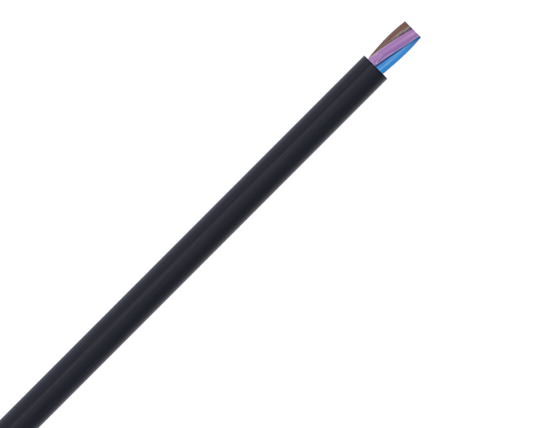

PVC insulated wire belong to the series of laying electric wires, which is mainly suitable for laying at the fixed places. It is widely used as connectors of drive, lighting, electric equipments, instrument and telecommunication equipments with rated voltage 450/750V or below. Part of the plastic wires are used at the equipment with AC rated voltage 300/300V or below.

Features
 1. the rated voltage U0 / U 3.6/6 KV
 2. Cable conductor long-term work for 90 C temperature of cable
 3. the smallest bending radius is six times the diameter of cable
 4. Cable shall not be in the sunlight long exposure to
 5. the bottom line of cable core must good grounding

Application
Used in electronics, instruments and electronic equipment and automatic generation device with the power cord, line and signal transmission lines, concrete can be used for anti-theft alarm system, building talkback system, instrument and meter, and monitoring control such as the installation of surveillance.


Manufacturing Standards GB/T 12706-2008, IEC 60502-2
227IEC01/05  BV  Copper conductor PVC insulated wires  Fixed laid indoors, conduits etc.  70
227IEC07  BV-90  Heat resistant copper conductor PVC insulated wires at 90  Mainly be laid at the places of high temperature environment and can be laid indoors, conduits.  70
BVR  Copper conductor PVC insulated flexible wire  Be for laying permanent place where flexible required  70
227IEC10
BVV  Copper conductor PVC insulated PVC sheathed round wires  Fixed laid, fit for the places with high mechanical protection and moisture place. Can be laid in the air or underground.  70
BVVB  Copper conductor PVC insulated PVC sheathed flat wires
227IEC02RV
227IEC06RV  Copper conductor PVC insulated  flexible connector  Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required.  70
227IECC42
RVB  Copper conductor PVC insulated flat flexible connector
RVS  Copper conductor PVC insulated  flexible twisting connector wire
227IEC52
RVV
227IEC53
RVV  Copper conductor PVC insulated PVC sheathed round flexible connector (light and common type)
