| Type: | Other Home Appliance Parts |
|---|---|
| Brand Name: | sanda |
| Type: | bimetal |
| Rated Current and voltage: | 10A-60A/AC110V-400V |
| Certificate: | TUV, UL,VDE |
| Name: | KSD |
| Place of Origin: | China (Mainland) |
| After-sales Service Provided: | Overseas service center available |
| Certification: | TUV,VDE,UL |
| Application: | household appliance |
| Condition: | New |
| Power(W): | 15A-60A |
| Voltage: | AC110/400V |
| Internal Piping Size: | 63mmx19.5mmx23.7mm |
| high current: | 15A-60A |
Quick Details
Specifications

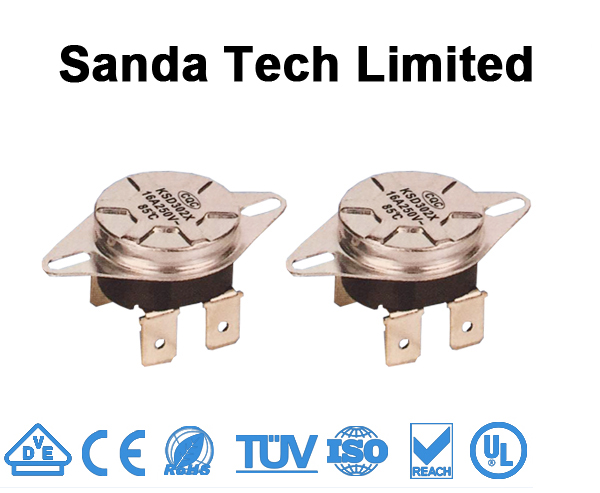

KSD301Series High current bimetal thermostat
the KSD302 series high current jump type bimetal temperature controller is widely applied to electric equipment and household appliances such as electric welding machines, water heaters, heaters, electric vehicle batteries, washing machines, fridges, sanitary wares and thermostat.
Model |
Type |
Size |
Voltage&Current |
Life |
KSD302 |
Auto reset Manual reset |
63mmx19.5mmx23.7mm |
AC110V /400V 15A-60A |
10000 cycles |
KSD303 series of small power bimetal thermostat
the KSD303 series small power jump type bimetal temperature controller is widely applied to small appliances such as water heaters, air conditioners, drinking fountains, microwave ovens, sterilizing cabinets, electric heating water bottles, etc.
Model |
Type |
Size |
Voltage&Current |
Life |
KSD303 |
Auto reset Manual reset |
30.3mmX20.5mmx16mm |
AC210V/380V 5A-16A |
10000 cycles |
KSD306 series thermostat
KSD306 series thermostat is widely used in water heater and other electrical appliances.
Technical parameter |
Size |
AC250V/400V 45A-63A |
50mmX15.3mmx23.2mm |
Thermostat ksd 301/ksd301 thermostat/ksd301 thermostat 16a 250v/thermal disc temperature control ksd301 for electric appliance
General introduction of Thermostat KSD 301 electric appliance:
KSD301 thermostat is a round shape product for electric appliance, it is snap action and can be auto reset or manual reset. It mainly used in coffee boil, Pizza oven and water heater, the housing of this bimetal thermal protector can be bakelite or ceramic,high quality product and competitive price is a good choice for you.
Electrical parameters for thermostat KSD301:
1.120VAC: 15A
2.250VAC: 10A
3.250VAC;16A
Temperature parameters of thermostat 301:
1.Action temperature range:0-250C
2.Tolerance:5C
Special features of KSD 301 thermostat:
1.Fixed or movable mounting flanges optional
2.Auto reset or manual reset and round shape
3.It can be bakelite or ceramic housing
4.Including Normally closed or Normally open type
5.UL,VDE,CQC certifications
Applications for thermostat:
1.Water heater and coffee boil
2.Other heating elements
3.Pizza oven
