| Talk Range: | 8-10KM |
|---|---|
| Storage Channel: | 199 |
| Frequency Range: | VHF:136-174MHz, UHF:403-470MHz |
| Type: | Handheld |
| Brand Name: | Sunyuto |
| Dimensions: | 29*5.5*2.5cm |
| Model Number: | SV-868 |
| Place of Origin: | China (Mainland) |
| Power supply: | 7.4V |
| Battery capacity: | 4500mAh |
| Weight: | 290g |
| Output power: | VHF/UHF:15W |
| Warranty: | 1 year |
| LCD: | yes |
| CO: | yes |
| CE: | yes |
| Frequency Spacing: | 12.5kHz/25kHz |
Quick Details
Specifications
Sunyuto SV-868
Datasheet
Accessory
| Model No. | SV-868 |
|---|---|
| Frequency Range | 400470MHz |
| Channel Capacity | 199 |
| Frequency Spacing | 12.5kHz/25kHz |
| Power supply | 7.4V |
| Battery capacity | 4500mAh |
| Frequency Stability | 1.5ppm |
| Operating Temperature Range | 20+60 |
| Dimension (LWH) | 295.52.5 |
| Weight | 290g |
| Transmitter and receiver | |
| Output power | UHF:15W |
| FM Hum and Noise | 40dB @ 12.5KHz; 45dB @ 25KHz |
| Modulation Limited | 2.5KHz @ 12.5KHz; 5.0KHz @ 25KHz |
| Audio Distortion | 5% |
| Conducted / Radiated Emission | -36dBm <1GHz -30dBm >1GHz |
| Adjacent Channel Power | -60 dB @ 12.5 kHz
-70 dB @ 25 kHz |
1 x Sunyuto SV-868 Radio
1 x AC Charger 100V -240V (Depends on your country)
1 x Battery (Li-ion 7.4V 2500 mAh )
1 x 16cm Short Antenna
1 x Belt Clip
1 x English Manual

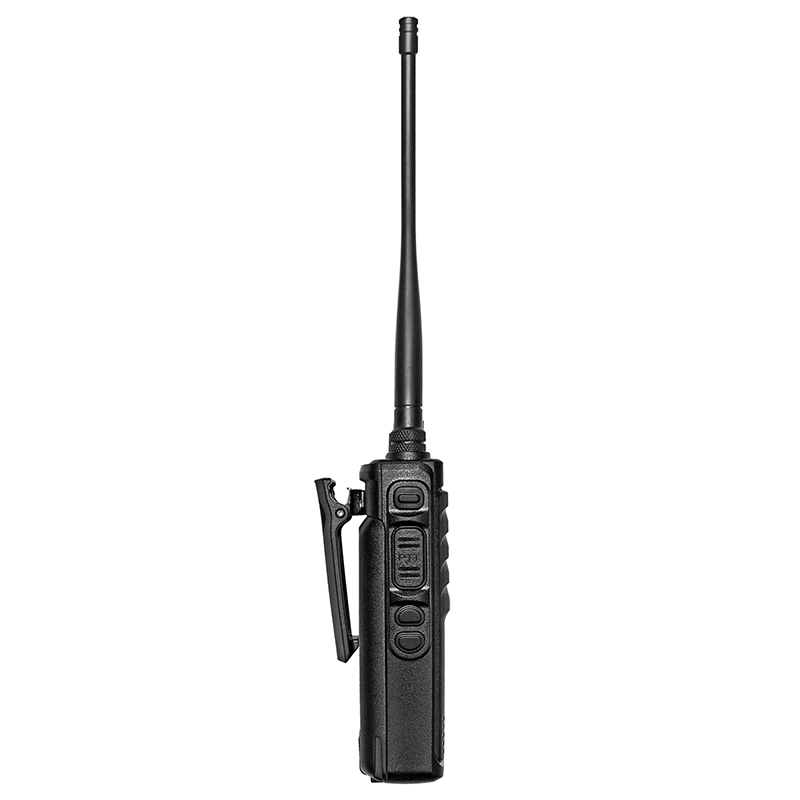

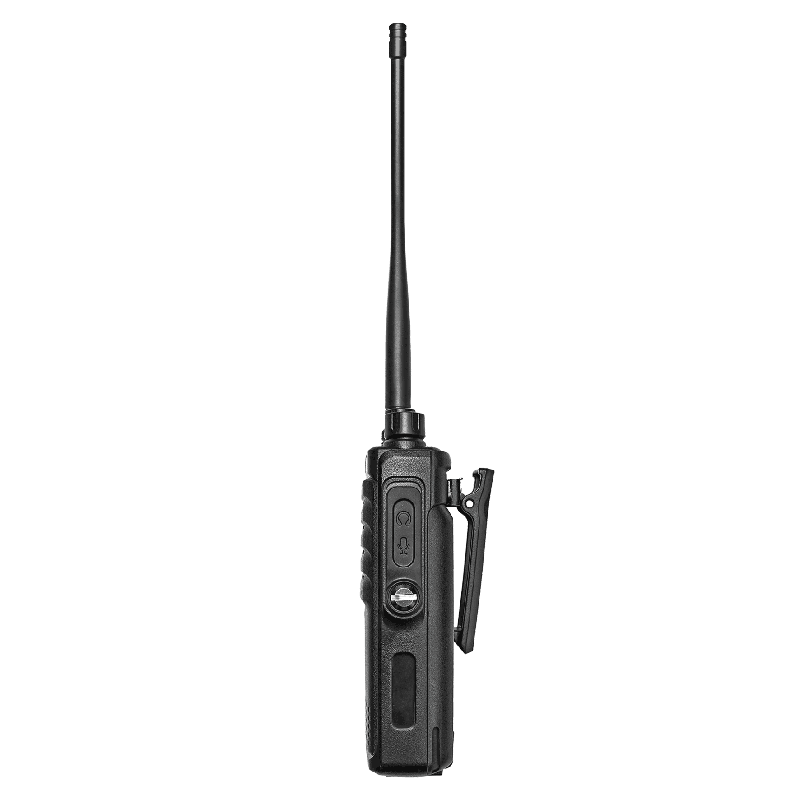

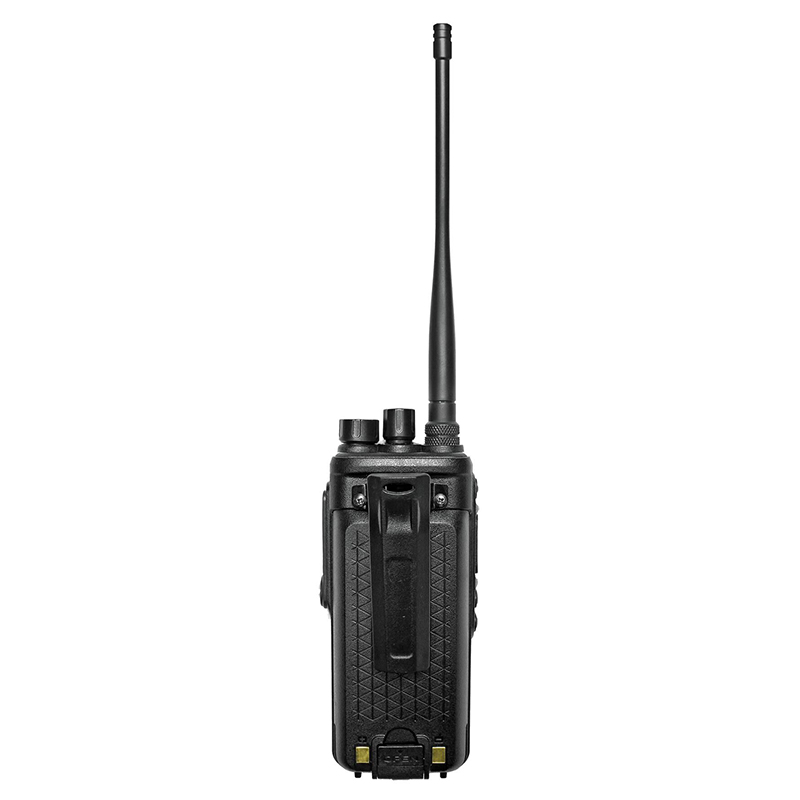

SV-868 picture
