| Special Features: | Waterproof / Weatherproof |
|---|---|
| Technology: | Pan / Tilt / Zoom |
| Sensor: | CMOS |
| Type: | Digital Camera |
| Brand Name: | yetonghang |
| Style: | Dome Camera |
| Model Number: | YTH638 |
| Place of Origin: | China (Mainland) |
| Size: | 200mm*200mm*290mm |
| Weight: | 7.5kg |
| Electronic amplification: | 2X/4X |
Quick Details
Specifications

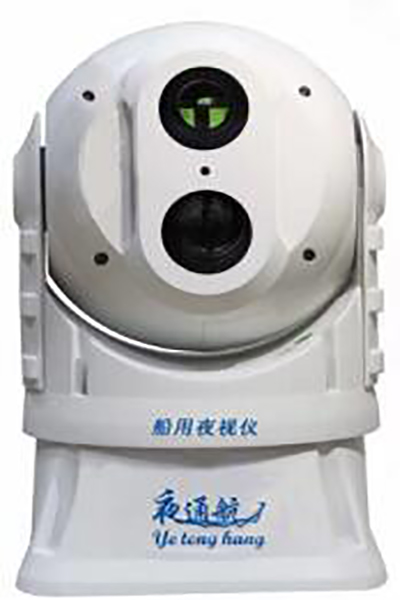

"Yetonghang"Marine ship night vision instrumentYTH638
(Marine photoelectric AIDS to navigation system)
(White, blue, green for optional)
Product introduction
Marine ship night vision instrument YTH638 is a specially designed for ship's safe navigation at night of high-tech night vision products, set high sensitivity infrared detector, the infrared camera, high-definition cameras, germanium, high-speed turntable spherical shield,It can penetrate the dark night, in the fog andsnow environment also has good performance, can provide all-weather image monitoring.YTH638 is equipped with advanced digital circuit and image processing algorithm, which can output delicate and smooth images. In terms of ship navigation, can see the obstacle of the waterway and timely inspect the surface of the water, using high-definition color automatic focusing the camera during the day can be to monitor the surface targets far, so that the driver to respond quickly, effectively protect the security the people and goods of the ship. The machine has the IP67 protection grade, the body is made of magnesium alloy and light alloy material, the structure is strong and fully sealed, the surface anti-oxidation and anti-salt spray coating. Hurricane resistance can operate at speeds of up to 150 kilometers per hour. Remote defrosting, anti-fogging function, good waterproof and high temperature resistance, can adapt to all kinds of bad environment all weather work, adapt to all kinds of ship installation to use.Product features
Marine ship special three defense treatment: salt mist, anti-corrosion, waterproof; shock resistance,the protection level reaches IP67;the spherical design,the coefficient of wind resistance is low,Resist strong winds above level 12;
Strength magnesium alloy die casting shell, Internal metal structure, strong structure;
Super heat dissipation design,Reduce the internal temperature of the ball machine,Keep the ball from fogging up;
2 million pixels high performance low illumination zoom camera, resolution is 1920 * 1080;
Built-in high-performance uncooled infrared thermal imager, create clearer images without any light;;
Night monitoring distance: + 25. RH65 %,Marine night-vision goggles to identify more than 24 m * 8 m hot target detection distance is about 4 to 5 km,recognition distance for 2-3 km;
Day monitoring distance:under the condition of visibility 20 km or more,Marine night-vision goggles to identify more than 24 m* 8 m target detection range of 3-4 kilometers,identify a distance of 2 km.
Scope of application
Cruise ships, yachts, cruise, high-speed passenger ship, unmanned ship, roll-on ship, ro-ro, floating crane, floating dock, engineering ship, bulk carrier, salvage ship, Marine surveillance ship, maritime ship, fisheries, cruiser, fisheries research vessel, vessel,Ocean shipping video monitoring system etc.
Technical parameter
INfrared thermal imaging
|
Detector type |
Focal plane array, non - cooled vanadium oxide (Vox) |
pixel |
324*256(640*512 forOptional) | |
25m | ||
Viewing Angle |
11.6(Horizontal)X 9.2(Vertical) | |
Athermalization len |
40mm | |
Len F value |
1.0 | |
Image frame frequency |
8.3 Hz PAL/7.5 Hz NTSC | |
Electronic amplification |
2X/4X | |
Thermal sensitivity |
< 50 mK(F/1.0 aperture,+25C) | |
Spectral range |
7.5 - 13.5m | |
FOcusing |
ELectric | |
Camera parameter
|
IMage sensor |
1/3" Progressive Scan CMOS |
Pixel |
200 Million | |
REsolution |
1920*1080 | |
FOcal length |
4.5135mm | |
Minimum illumination |
0.05 Lux(ICR on,1/50 Sec) | |
Optical zoom |
30X | |
Horizontal Angle of view |
65.1.-2.34.(wide Angle - telescopic) | |
10-1500mm (wide Angle - telescopic) | ||
Change times |
about4s(optical,Wide Angle - telescopic) | |
Day and night mode |
ICRFIlter plate | |
TurntableParameter |
Vertical motion range |
-2090 |
Vertical speed |
0.0535/s | |
Horizontal motion range |
360 | |
Horizontal velocity |
0.155/s | |
Positioning accuracy |
0.05 | |
Other parameter |
MEnu language |
Chinese/English |
Control interface |
RS485 | |
Address range |
0255 | |
TurntableControl Agreement |
Pelco-D/P | |
Baud rate |
2400/4800/9600 | |
POwer supply |
AC24V/2A | |
Power consumption |
Max 36W | |
Working temperature/humidity |
-4065,Relative humidity is less than 90% | |
Protection grade |
IP67 | |
Other protective |
Anti-shock, vertical shock | |
Size |
200*200*290mm | |
Weight |
7Kg | |
Structure of material |
Magnesium alloy | |
Shock absorber |
Rubber shock absorption | |
Heater |
Optional |
Configuration list
Name |
Model |
Note |
HD hard disk video recorder |
YTH-DVR604D |
Compatible with mainstream security equipment. |
3DControl keyboard |
YTH-KZ301 |
Control the rotation of Marine night vision and other functions |
Highlight LCD |
YTH-LED17G |
Brightness is manually adjustable |
Night vision renderings
Compare the effect diagram in fog

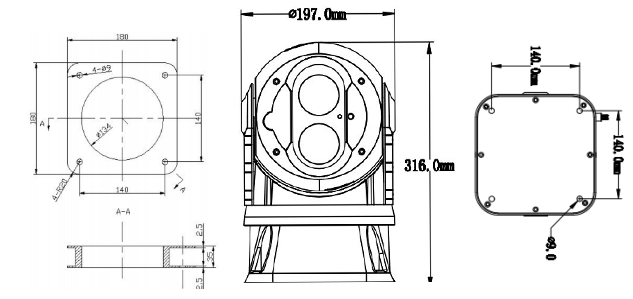

Product installation dimension drawing
Shock absorber size (applicable to mounting bracket)
