"Ye tong hang" Marine night vision equipment YTH618J

(Marine infrared navigation system)









Product introduction

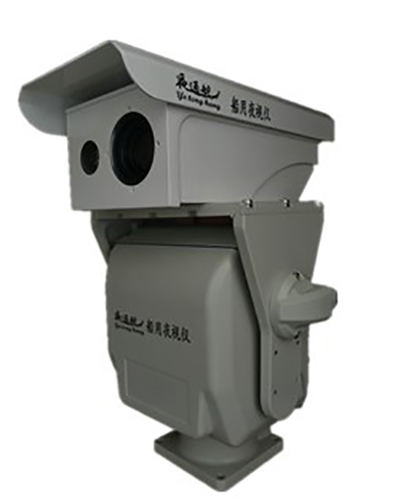

"Ye tong hang" Marine night vision equipment YTH618JIs a high-tech night vision products designed for ship navigation, the set of 400 * 300 resolution uncooled vanadium oxide infrared focal plane infrared thermal imager, 35 mm lens, 2 million pixel 1/3 "Progressive Scan CMOS high-definition cameras, high-definition camera and turntable is equal on one.Advanced image enhancement and good night vision function, through fog, can help the driver supervisor in time to see the obstacle of the channel and the surface of the water, can be all-weather wide Angle monitor and video evidence, is the best choice for Marine monitoring.

Product features

According tomArine ship standard design: salt spray, corrosion, shock and water proof;

Turntable horizontal rotation Angle is 355;

Humanized design, easy to operate;

All-weather environment design, the shield height is sealed, the protection level reaches IP66;

2 million pixel high performance low illumination camera with a resolution of 1920*1080;

Built-in high performance non-cooled infrared thermal imager,A clear image can be produced without any light;

Different infrared lenses can be selected to customize the development design according to the customer's requirements;

in the dark night, haze, rain and snow, we can still see the channel and water surface.;

Night monitoring effect and distance:+ 25. RH65 %, Marine night-vision goggles to detect more than 24 m x 8 m hot target distance of 3-4 km, identify more than 24 m x 8 m hot target distance is about 1.5 km.

 Daytime monitoring effect and distance:in the condition of visibility greater than 20km, 2m HD cameras can identify the target distance of 24m by 8m or more.

Scope of application

Cargo ships, passenger ships, ferry boats, dredgers, crane vessels, floating docks, salvage vessels, piling vessels, fishery vessels, harbor vessels, development vessels, ocean tugboats,hArbour tugect.

Technical parameters

Detector performance	Detector type	Non-refrigerated vanadium focal plane array
	REsolution	400*300
	SPacing	25m
	Spectral range	7.5 13.5m
	Thermal sensitivity	50mK(F=1.0)
	Electronic amplification	2X/4X
	Imaging time	>2s
	Image	Blackg glow/White glow/Pseudo color(More than 10 kinds)
	Simulate video output	PAL/NTSC,50/60HZ
	Image enhancement	Digital image detail enhancement techniques
LEns performance	Len	35mm
	Viewingangle	16.3 12.2
	Spatial resolution	0.714mrad
	APerture	F1.0
	Focus	ELectric
Camera parameter	IMage sensor	1/3" Progressive Scan COMS
	Pixel	200 Million
	REsolution	1920*1080
	LEn focal length	8mm(4/6/12/16mmfor optional)
	Day and night mode	ICRFIlter plate
Power supply system	POwer supply	AC24V20%
	Power consumption	60W
Physical Parameter	Protection grade	IP66
	Weight(includingTurntable)	8KG
Turntable Parameters	Horizontal motion range	0355
	Horizontal velocity	19/S
	Vertical motion range	-85 +20
	Vertical speed	15/S
	PResetting bit	80
	Cruise	Industry V0.0 agreement, industry V1.0 agreement 8, other agreements 1
	Automatic scanning	Industry V0.0 agreement, industry V1.0 agreement 5, other agreements 1
	Watch	There can be 1 preset or 8 automatic cruise line or 8 automatic line scan line, only the industry V0.0 protocol has this function
	Work environment	-35+65,humidity90%RH
	Communication protocol	INdustry V0.0,INdustry V1.0,YAAN,Pelco-P,Pelco-D
	CommunicationBPS	2400\4800\9600\19200 bps
	Communication method	RS485
	Load weight	7kg
	Load mode	TOp load
	MAterial	Aluminum alloy

Configuration list

Name	Model	Note
HD hard disk video recorder	YTH-DVR604D	Compatible with mainstream security equipment.
3DControl keyboard	YTH-KZ301	Control the rotation of Marine night vision and other functions
Highlight LCD	YTH-LED17G	Brightness is manually adjustable

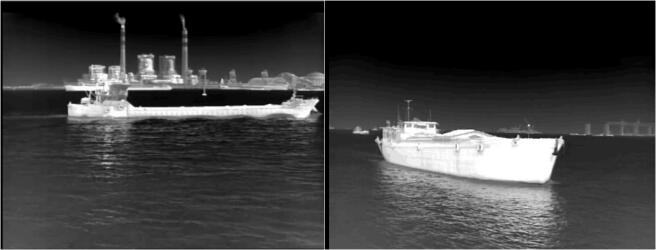

Night vision renderings

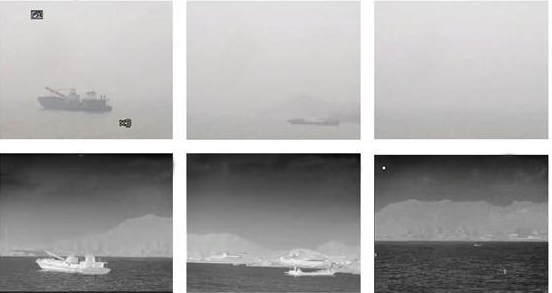

Compare the effect diagram in fog



Product installation dimension drawing

Shock absorber size (applicable to mounting bracket)
