| Main Circuit Rating Current: | 600A |
|---|---|
| Main Circuit Rating Voltage: | 48 |
| Brand Name: | Jinquan |
| Model Number: | 600H(B)/48-48BW |
| Place of Origin: | China (Mainland) |
| Rated coil voltage: | Ue=48V |
| Maximum coil voltage: | 57.6V |
| Mininum coil voltage: | 33.6V |
| Load current: | 600A |
| Mechanical life: | 10,0000 times |
| Electric life: | 6000 times |
| Weight: | 0.1kg |
Quick Details
Specifications
the following example is for you reference.
Features:

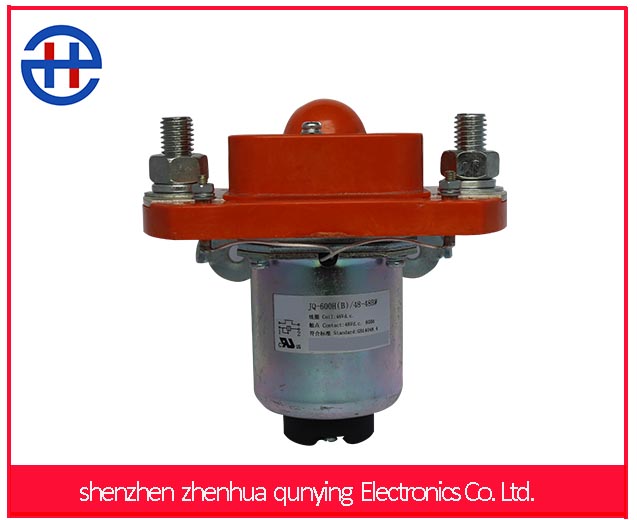

JQ-600D(B) / 48-48BW DC contactor has a set of bridge normally closed contacts with load current up to 600A.
Technical details:
Ambient temperature:
Work: - 40 ~ + 60
Storage and transportation: - 40 ~ + 70
Relative humidity: 98% at 40
Altitude: not more than 2000 meters.
Amplitude: 0.35mm
Impact: 30m/s2
Operation method of useage:
Installation requirements: NO.
Protection level: IP40
Package: standard package
