| Material: | Brass |
|---|---|
| Size: | G1/4-G4 |
| Protection Level: | IP68 |
| Brand Name: | Sanhui |
| Color: | Metal color |
| Model Number: | SHBDM-16 |
| Place of Origin: | China (Mainland) |
| Materials: | Brass/Brass,nickel planted/stainless steel |
| Seal: | Silicon rubber |
| Claw: | PA66 |
| Thread: | M,G,NPT |
| Ex-mark: | Exd IIC Gb/Exe II Gb/Ex tD A21 IP68 |
| Protection level: | IP68 |
| Customization: | Accept |
| Optional accessories: | Earth tag/PVC shroud/Serrated washer,and so on |
| Install: | Thread tighten/Lock nut tighten |
| Working zone: | Zone1,zone2,zone21 |
Quick Details
Specifications
Free sample flamproof cable gland

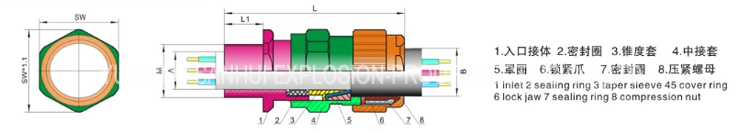

Product Dimension
Product FeaturesIt is widely used clamping and tightening the cable in
the hazardous locations of oilexploition,oil refining.Chemical industry and military and so on.
| Product Name | SHBDM-16 | ||
| Execution Standard | GB3836.1,GB3636.3 | ||
| Explosion Proof Mark | Exd IIC GB/Exe II G/Ex tD A21 IP68 | ||
| Product Materials | 304SS,316L,H62 | ||
| Connecting Thread | Metric is standard.Special requirement, G,NPT thread is available. | ||
| Cable Gland Type | CW Type cable glands | M,PG,G,NPT Type cable glands | |
| BW Type cable glands | Marine & JIS Type cable glands | ||
| A1 / A2 Type Type cable glands | E1W Type cable glands | ||
| Hazardous Area ATEX Cable Gland | Cable Glands Accessorie | ||
| M | Outer diameter of cable(mm) | L(mm) | L1(mm) | SW(mm) | Ex-mark | Protection Level | |
| A | B | ||||||
| M16*1.5 | 4-8 | 5.5-12 | 80 | 16 | 24 | IP68 | |
| M20A*1.5 | 6.5-10.5 | 9.5-16 | 80 | 16 | 27 | Exd IIC GB/ | |
| M25*1.5 | 10-14.5 | 12.5-20 | 80 | 16 | 30 | Exe II GB/ | |
| M32*1.5 | 12.5-19.5 | 16.9-26 | 85 | 16 | 6 | Ex tD A21 IP68 | |
| M40*1.5 | 19-25.5 | 22-33 | 95 | 18 | 45 | ||
| M50*1.5 | 25-31 | 28-41 | 97 | 18 | 57 | ||
| M63*1.5 | 31.5-37 | 36-52.3 | 106 | 20 | 65 | ||
| M75*1.5 | 42.5-55 | 46-65.3 | 127 | 21 | 81 | ||
| M85*1.5 | 64.5-64 | 58-78 | 135 | 22 | 100 | ||
| G | Outer diameter of cable(mm) | L(mm) | L1(mm) | SW(mm) | Ex-mark | Protection Level | |
| A | B | ||||||
| G1/2 | 4-8 | 5.5-12 | 80 | 16 | 24 | IP68 | |
| G1/2 | 6.5-10.5 | 9.5-16 | 80 | 16 | 27 | Exd IIC GB/ | |
| G3/4 | 10-14.5 | 12.5-20 | 80 | 16 | 30 | Exe II GB/ | |
| G1 | 12.5-19.5 | 16.9-26 | 85 | 16 | 6 | Ex tD A21 IP68 | |
| G1 1/4 | 19-25.5 | 22-33 | 95 | 18 | 45 | ||
| G1 1/2 | 25-31 | 28-41 | 97 | 18 | 57 | ||
| G2 | 31.5-37 | 36-52.3 | 106 | 20 | 65 | ||
| G2 1/2 | 42.5-55 | 46-65.3 | 127 | 21 | 81 | ||
| G3 | 64.5-64 | 58-78 | 135 | 22 | 100 | ||
| NPT | Outer diameter of cable(mm) | L(mm) | L1(mm) | SW(mm) | Ex-mark | Protection Level | |
| A | B | ||||||
| NPT1/2 | 4-8 | 5.5-12 | 85 | 21 | 24 | IP68 | |
| NPT1/2 | 6.5-10.5 | 9.5-16 | 85 | 21 | 27 | Exd IIC GB/ | |
| NPT3/4 | 10-14.5 | 12.5-20 | 85 | 21 | 30 | Exe II GB/ | |
| NPT1 | 12.5-19.5 | 16.9-26 | 91 | 21 | 6 | Ex tD A21 IP68 | |
| NPT1 1/4 | 19-25.5 | 22-33 | 98 | 21 | 45 | ||
| NPT1 1/2 | 25-31 | 28-41 | 100 | 21 | 57 | ||
| NPT2 | 31.5-37 | 36-52.3 | 107 | 21 | 65 | ||
| NPT2 1/2 | 42.5-55 | 46-65.3 | 133 | 27 | 81 | ||
| NPT3 | 64.5-64 | 58-78 | 140 | 27 | 100 | ||
the hazardous locations of oilexploition,oil refining.Chemical industry and military and so on.
It is applicable to explosive gas environment zone1 and zone2.
It is applicable to explosive dust atmosphere district 20,21 and 22.
It is suitable for IIA,IIB,IIC explosive gas environment.
Factory
It is applicable to explosive dust atmosphere district 20,21 and 22.
It is suitable for IIA,IIB,IIC explosive gas environment.
Factory
