Description:

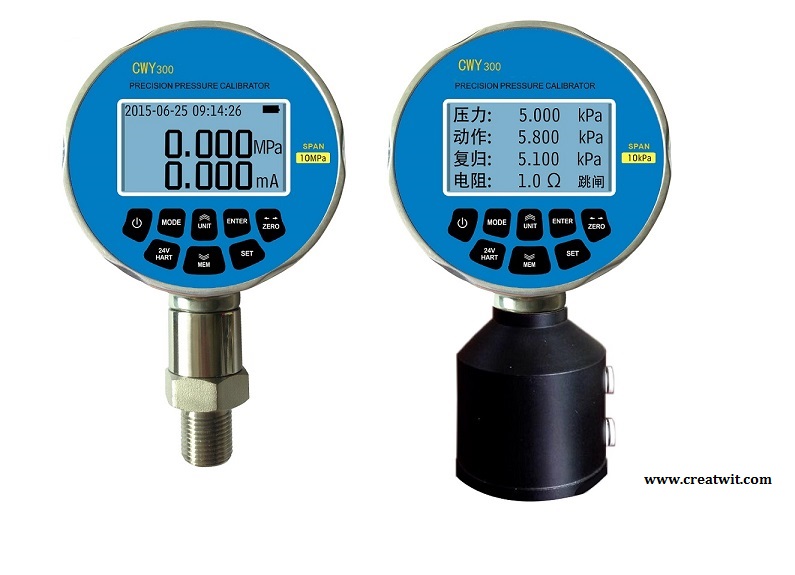

CWY300-the

It can be used with CWY automatic pressure Calibration station as its external pressure module, communicate with TMMS2000 and automatically print calibration report.

Model: CWY300

Pressure measuring range: -100kPa60MPa,

Accuracy: 0.02%F.S,   0.05%F.S, 0.1%F.S,  0.2%F.S

Current measuring range: (022)mA  accuracy: 0.02, 0.05

Voltage measuring range: (05.5)V,  accuracy: 0.05

Resistance measuring range: (020), accuracy: 1

the built-in power supply DC24V

Calibration results memory: 28/56 files, 40pcs record/file. 20 pcs before and after adjustment

Clock function

Ambient Conditions:

A. Temperature: (-5~50);

B. RH (relative Humidity): 95%;

C. Atmospheric Pressure: (86~105) kPa

D: Compensation Temperature: (-5~50)

E: Storage Temperature: (-30~80)

Features:

 Pressure unit: kPa, psi, inHg, inH2O, mmHg, MmH2O, MPa, bar, mbar, atm, kgf/cm2, Pa, total 12 options

 Pressure overload: It will display overload and warn when pressure measurements are over 110% F S.

 Display: LCD screen with white backlight, 5 Digits display

 Power supply mode: 3.7V/3500mAH Lithium Battery

 Auto power-off: Auto power-off after 20 Minutes if there is no operation and the pressure change is less than 1% of the Range within 1 minute.

 Communication serial port configuration:

 Baud rate: 57600;  check bit: no,   data bits: 8 bits;    stop bits: 1 bit;

Size:

External Dimension: gauge head: 108mm43mm, overall length: 170mm

Weight: about 0.6kg;

Pressure Connection: M201.5 (user defined eg. NPT);

6mm quick socket (differential Pressure model);

Power connection: 6 standard banana plug;

Additional function:

Temperature test with resolution 0.1
