Product Main

Quick Details

Door Material: Steel
Surface Finishing: Finished
Position: Exterior
Open Style: Automatic
Brand Name: Kenvo
Type:
Model Number: RRD-SERVO
Place of Origin: China (Mainland)

Specifications

Basic Info

Certification: ISO9001, CE                               Position: Industrial

Surface Finishing: Finished                               Max Size: 5000mm*5000mm

Trademark: KENVO                                       Transport Package: Wood Box Package

Specification: PVC fabric                                 Origin: Shanghai, China
HS Code: 853080000

Product Description

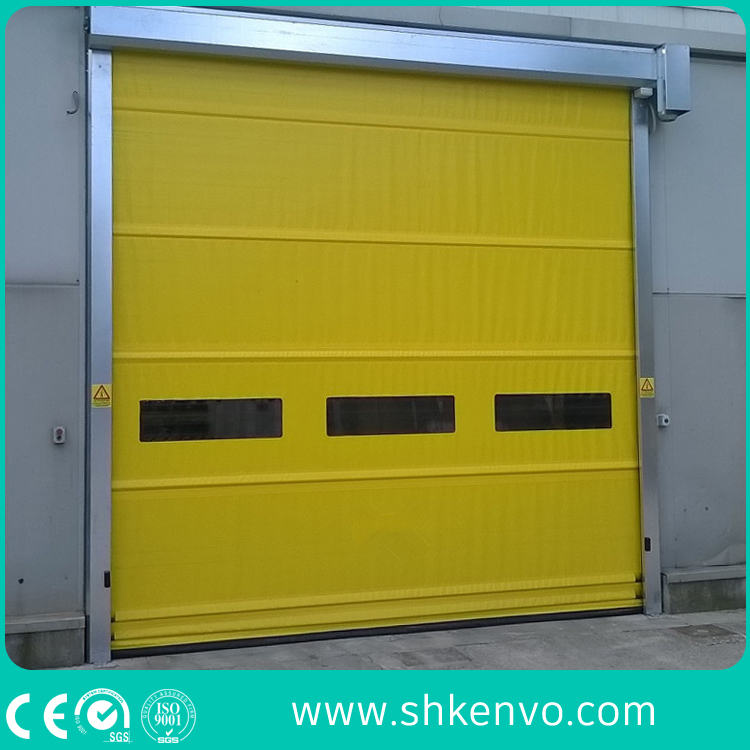

RRD-STD Standard Type High Speed Door
Radar Sensor PVC Fabric High Speed Fast Rapid Roller Shutter DoorRadar Sensor PVC Fabric High Speed Fast Rapid Roller Shutter DoorMain features:
Automatic, super fast opening and closing, reducing leakage of heat and air, heat preservation, hygienic, flexible PVC panel and beautiful, various colors available

Application scope:
Inner and outer doors of all kinds of factories especially fit for food factory, cold storage, frequent logistics, chemical industry

Technical data:
Max dimension: 5000mm wide*6000mm high
Max opening Speed: 2.0m/s
Max closing speed: 1.2m/s
Wind resistance: Beaufort scale 10 (25m/s)
Power supply: 1-phase 22010%V,50/60HZ, or
3-phase 380V10%V,50/60HZ
Protection level of electric: IP55
Available colors of fabric: Yellow, Blue, Red, Grey, White, Clear

Technical Descriptions:
1. Motor
Germany brand Seimens motor or SEW motor. Work power source 220V/50Hz or 380V/50Hz. the power 0.55-1.5KW; F: IP55, 1500turns/minute. Operating temperature: -30-70 degree Celsius.
2. Control panel
Advanced Inverter control system. the inverter realizes soft start and soft stop of the door, to protect the motor and makes the door work a much longer life. HMI monitor display is available, making it easier for daily operation. with self-examining function. When there is failure, the monitor will show error codes.

3. Steel structure
It includes two guide rails, one top cover and one motor cover.
Standard material: Galvanized steel, surface is painted; Optional material: 304 stainless steel
Thickness: 2.0mm for guide rails, 1.5mm for top cover and motor cover.
Radar Sensor PVC Fabric High Speed Fast Rapid Roller Shutter Door4. PVC Fabric:
Material: PVC Fabric; Thickness available:0.8mm, 1.0mm,1.2mm and 1.5mm; Colors available: Blue/Yellow/ Red/Grey/White/Full Clear. the price of Full clear is higher than others by 5%. All other colors are with same price.Radar Sensor PVC Fabric High Speed Fast Rapid Roller Shutter Door5. Safety performance
A. Safety photo cell.
B. Proximity sensor, at the bottom.
C. Alarm light for caution.
6. Standard operation method
Control buttons of both sides.
7. Optional operation methods
One-side radar/ Remote control(2 control panels) / One-side vehicle detector / One-side pull switch /; Interlocking
Radar Sensor PVC Fabric High Speed Fast Rapid Roller Shutter Door8. Opening speed
Adjustable between 1.0m/s and 2.0m/s
9. Emergency opening
Manual swing bar available to open the door in emergency case of power failure


Packing standard for export:
Step.1 Pack all door parts with cardboard or multi-layer plastic bubble film, to protect them and avoid dmages during shipment.
Step.2 Load all well-packed parts into wood box, to offer additonal protection and avoid missing of small parts. Wood box is made of fumigation-free material.
Radar Sensor PVC Fabric High Speed Fast Rapid Roller Shutter DoorFAQ:
1. Why to choose your doors?
A. More than 20 years production experience years since the year 1995.
B. More than 10 years export experience since the year 2006.
C. Not only low-price, but also high quality oriented, reducing your future long-term cost of maintenance.
D. Patient after-sales service about local installation guide and daily use guide.

2. how long is the lead time?
15 days.
3. Can we buy a sample door as trial order first ?
Yes, we can offer a sample door with reasonable price. You can test with it and check our quality.
4. What service do you offer besides product itself?
A. Professional advice on choice of door types and functions.
B. Strict packing procedure specially for export.
C. Arrangment and close follow of sea shipment.
D. Installation guide service by email, Skype or phone. and site guide service available if you need.
E. English version installation manual and user manual.
F.  English drawings of doors.
G. 12 month quality guarantee since arrival date.
5. Can we become your agent of doors at our local place ?
Yes, we welcome you to join our partnership. but we need check first to avoid that we already have an agent in your local area.
