| Insulation Material: | Halogen Free LSZH PVC |
|---|---|
| Conductor Material: | bare copper or tinned copper |
| Application: | Heating |
| Type: | Insulated |
| Brand Name: | ECHU |
| Conductor Type: | Stranded |

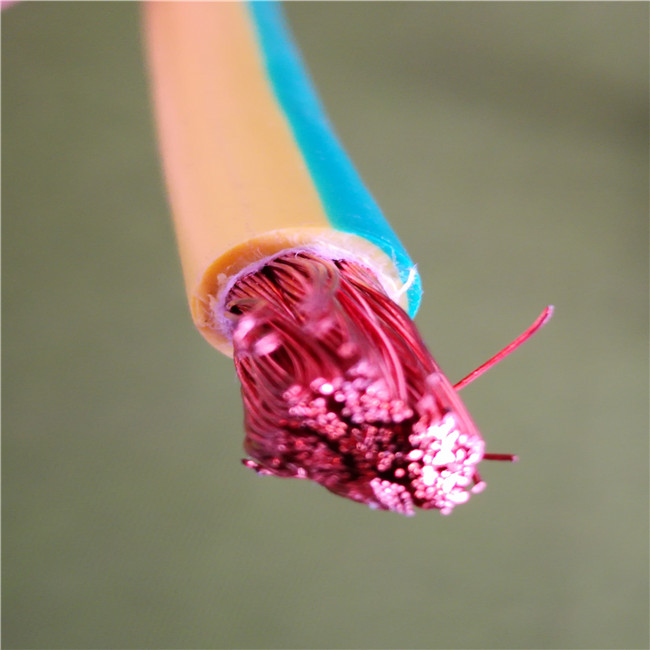

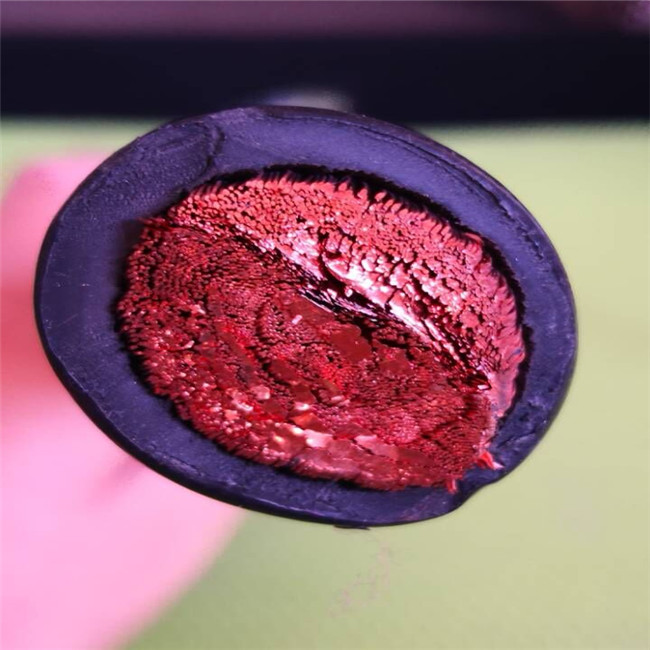

| Model Number: | H07Z1-K 35mm2 |
| Place of Origin: | China (Mainland) |
| Cert.: | CE |
| type: | H07Z1-K |
| Temp.: | 70C, 105C, 90C |
| Conductor: | bare copper or Tinned Copper |
Quick Details
Specifications
CONSTRUCTION
APPLICATIONS
Principally used in panel wiring where Low Smoke Zero Halogen (LSZH) cabling is required. They are available in a widerange
of colours for this purpose. Designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers, these cables can be installed in pipes or ducts, and used in the internal wiring of appliances with maximum operating temperatures of 90C.
the cables are designed to H05Z-K, sized from 0.5mm2 to 1mm2 and with a voltage rating (Uo/U) of 300/500V, and to H07Z-K, sized from 1.5mm2 to 240mm2 with a voltage rating (Uo/U) of 450/750V
Conductor: flexible copper conductor
Insulation: LSZH (Low Smoke Zero Halogen)
CHARACTERISTICS
Voltage Rating (Uo/U):
H05Z-K - 0.5mm2 to 1mm2: 300/500V
H07Z-K - 1.5mm2 to 240mm2: 450/750V
Temperature Rating: -25C to +90C
Minimum Bending Radius:
up to 35mm2: 4 x overall diameter
50mm2 and above: 6 x overall diameter
Insulation Colour:Red Black Blue Orange White Yellow Green/Yellow Grey Brown Violet Pink
Insulation: LSZH (Low Smoke Zero Halogen)
CHARACTERISTICS
Voltage Rating (Uo/U):
H05Z-K - 0.5mm2 to 1mm2: 300/500V
H07Z-K - 1.5mm2 to 240mm2: 450/750V
Temperature Rating: -25C to +90C
Minimum Bending Radius:
up to 35mm2: 4 x overall diameter
50mm2 and above: 6 x overall diameter
Insulation Colour:Red Black Blue Orange White Yellow Green/Yellow Grey Brown Violet Pink
APPLICATIONS
Principally used in panel wiring where Low Smoke Zero Halogen (LSZH) cabling is required. They are available in a widerange
of colours for this purpose. Designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers, these cables can be installed in pipes or ducts, and used in the internal wiring of appliances with maximum operating temperatures of 90C.
the cables are designed to H05Z-K, sized from 0.5mm2 to 1mm2 and with a voltage rating (Uo/U) of 300/500V, and to H07Z-K, sized from 1.5mm2 to 240mm2 with a voltage rating (Uo/U) of 450/750V
