Resistance: | 25mv |
---|---|
Package Type: | Surface Mount |
Technology: | Metal Foil |
Type: | Fixed Resistor |
Brand Name: | Jinquan |
Operating Temperature: | no |
Temperature Coefficient: | no |
Rated Power: | 1500A |
Resistance Tolerance: | 0.5% |

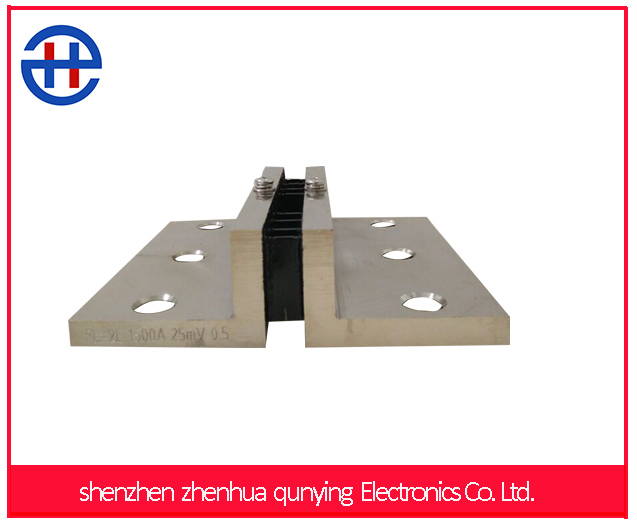

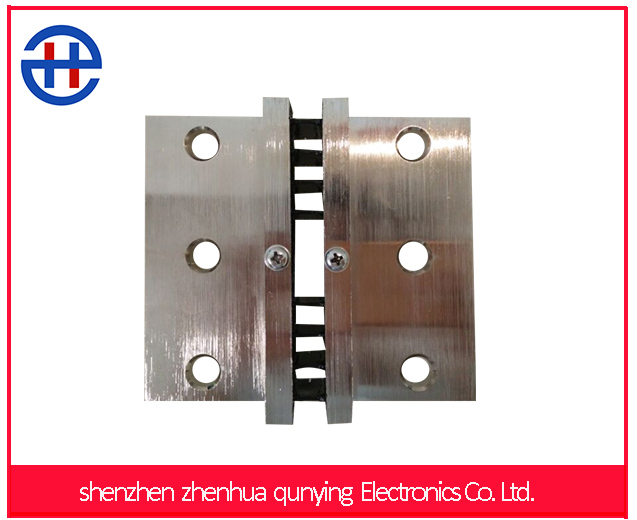

Model Number: | FL2-L 1500A 25mV |
Place of Origin: | China (Mainland) |
Specification: | FL2-L 1500A 25mV |
Current: | 1500A |
Voltage drop: | 25mv |
Accuracy level: | 0.5% |
Quick Details
Specifications
1. Features:
Specification:FL2-L 1500A 25mV
Current:1500A
Voltage drop:25mv
Accuracy level: 0.5%

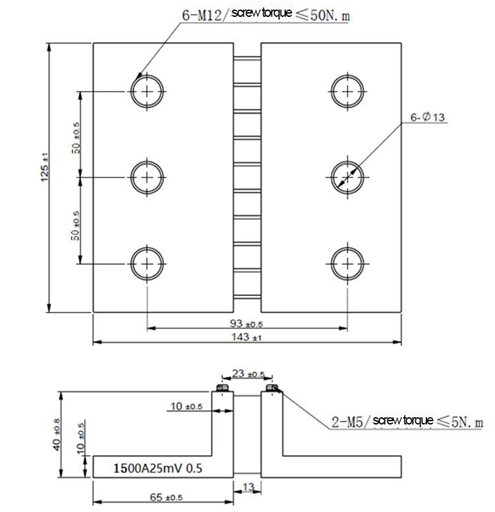

2. Outside
Drawing:
3.Technology details:
Surface coating: nickel plating.
the surface of the resistor is coated: black Amino baking enamel.
4. Applicable standards for shunt
A. Product standard: national standard of the
People's Republic of China: GB/ t766-1998 direct action simulation indicator
Electrical measuring instruments and their accessories professional standard of
The People's Republic of China: JB/ t9288-1999 external attachment diverter.
B. Safety standards: iec61010-1:190 safety requirements for measuring, controlling
And laboratory electrical equipment. Part 1: general requirements.
C. Environmental standards: standards for the electronic industry of the
People's Republic of China: SJ/T 11363-2006 quantity requirements. Eu: ROHS.
D. Tolerance standard: the tolerance size is not specified in accordance with
the national standard for Chinese migrant workers and the national standard:
GB/ t1804-2000 rough C execution of general tolerances for linear and angular
Dimensions without tolerance.
5. Company pics:
6. Our service:
Customizing the order of
Customers. No matter our products' questions are, we will deal with them with
Customers to make sure that they are satisfied with our products and our
Service.
7. Package:
Standard export package
Requirement.
