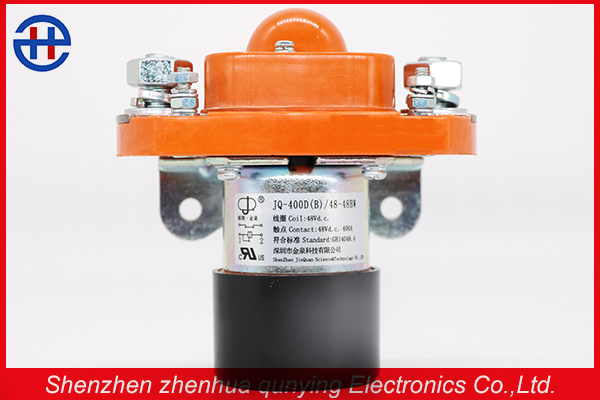

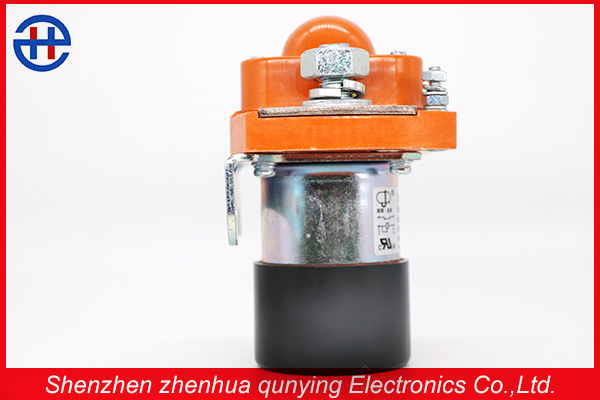

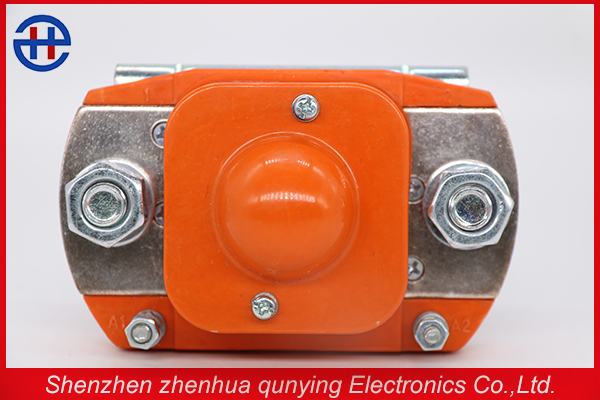

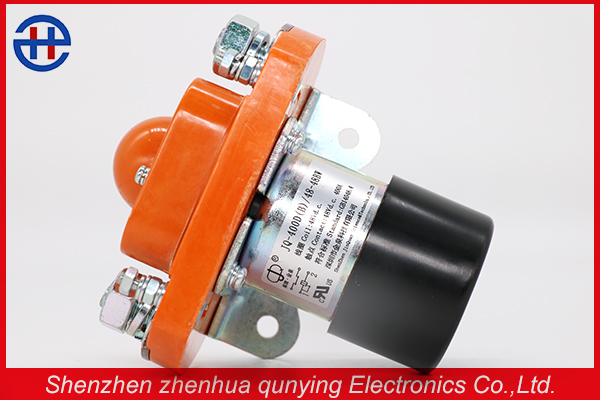

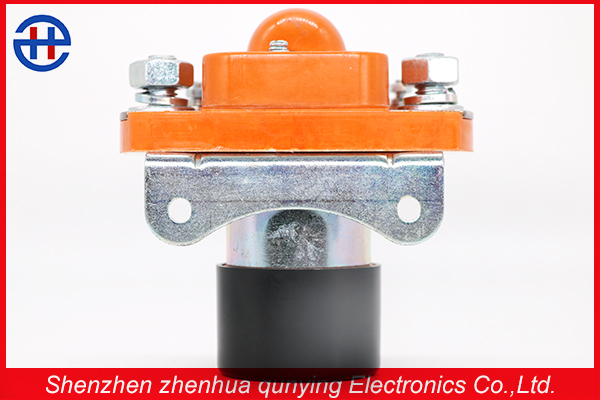

1.Parameter

Bridge Unicoil closed contacts

Rated coil voltage: Ue=48V

Maximum coil voltage=57.6V

Mininum coil voltage=38.4V

Load current=400A

Dielectric strength=50HZ

Coil resistance =570.8-670

Sucking time 40ms

Releasing time 30ms

Mechanical life= 10,0000 times

Electric life=6000 times

Weight=0.8kg

2. Usage condition

Ambient Temperature: work: - 40 ~ + 60; storage and transportation: - 40 ~ + 70

Relative humidity: 95% at 40
Altitude: not more than 2000 meters.

Vibration: 10-55hz,
Amplitude: 0.35mm
Impact: 30m/s2

3. Standard,safty and environmental protection

(1)Comply with GB14048.4-2003 / IEC60947-4-1:2000 low voltage Switching equipment and control equipment electromechanical contactor and motor Starter standard;

(2)YD/T585-2010General credit distribution equipment technical conditions.

4.Standard,safty and environmental protection

(1)Comply with GB14048.4-2003 / IEC60947-4-1:2000 low voltage Switching equipment and control equipment electromechanical contactor and motor Starter standard;

(2)YD/T585-2010General credit distribution equipment technical conditions.

5.  Order mark standard


6. Current curve


7. the circuit diagram of the configuration, Installation and terminal


8. the schematic diagram of the terminal circuit
